OmniTWAG Operations and Deployment Guide

Created by Omnitouch

This guide is for network operators, system administrators, and customers deploying OmniTWAG.

Introduction
What is WiFi Offload?
Deployment Architecture
Charging Flow
Authentication Flow
Configuration Guide
Access Point Setup
Hotspot 2.0 Integration
Monitoring and Management
Troubleshooting
Standards Compliance

Introduction

OmniTWAG (Trusted WiFi Access Gateway) is a standards-compliant implementation of a 3GPP TWAG that enables mobile network operators to securely offload subscriber traffic from cellular networks to WiFi access points while maintaining secure, SIM-based authentication.

The TWAG authenticates WiFi subscribers using their SIM credentials via EAP-AKA (Extensible Authentication Protocol - Authentication and Key Agreement), the same authentication mechanism used in cellular networks. This provides seamless, secure WiFi access for mobile subscribers without requiring separate WiFi passwords.

Key Benefits

For End Users:

Zero Configuration: Works out of the box with compatible SIM
Seamless Experience: Automatic connection like cellular
Secure: Always uses encrypted WiFi (WPA2)
No Passwords: SIM-based authentication

For Mobile Operators:

Network Capacity Relief: Reduces load on cellular base stations
Controlled Offload: Only authorized subscribers can connect
Improved User Experience: WiFi typically offers higher bandwidth
Cost Efficiency: WiFi infrastructure is less expensive than cellular
Consistent Identity: Same IMSI used for WiFi and cellular
Billing Integration: Can charge for WiFi usage if desired

For Venues/Enterprises:

Operator-Grade Security: No risk of password sharing
Scalability: Support thousands of users without manual provisioning
Simplified Management: No need to distribute WiFi passwords

What is WiFi Offload?

WiFi offload allows mobile network operators to redirect subscriber data traffic from congested cellular networks to WiFi networks.

How TWAG Enables Offload

The TWAG acts as the authentication gateway between:

WiFi Access Points (via RADIUS protocol)
Mobile Core Network HSS/HLR (via Diameter SWx interface)

When a subscriber's device connects to a WiFi AP configured for offload:

The device identifies itself using its IMSI (from the SIM card)
The WiFi AP forwards authentication requests to the TWAG via RADIUS
The TWAG communicates with the operator's HSS to retrieve authentication vectors
EAP-AKA challenge-response authentication occurs between the device and TWAG
Upon successful authentication, the device is granted WiFi access
Optionally, traffic can be tunneled back to the mobile core or break out locally

Deployment Architecture

Network Topology

Interface Legend:

STa*: RADIUS/Diameter interface between WiFi AP and TWAG (non-3GPP to AAA)
SWx: Diameter interface between TWAG (3GPP AAA Server) and HSS
S2a/S2b: GTP tunnel interface for backhaul to home network (optional)
SGi: Interface to external packet data networks (Internet)
802.11: WiFi radio interface
EAPOL: EAP over LAN (802.1X authentication)

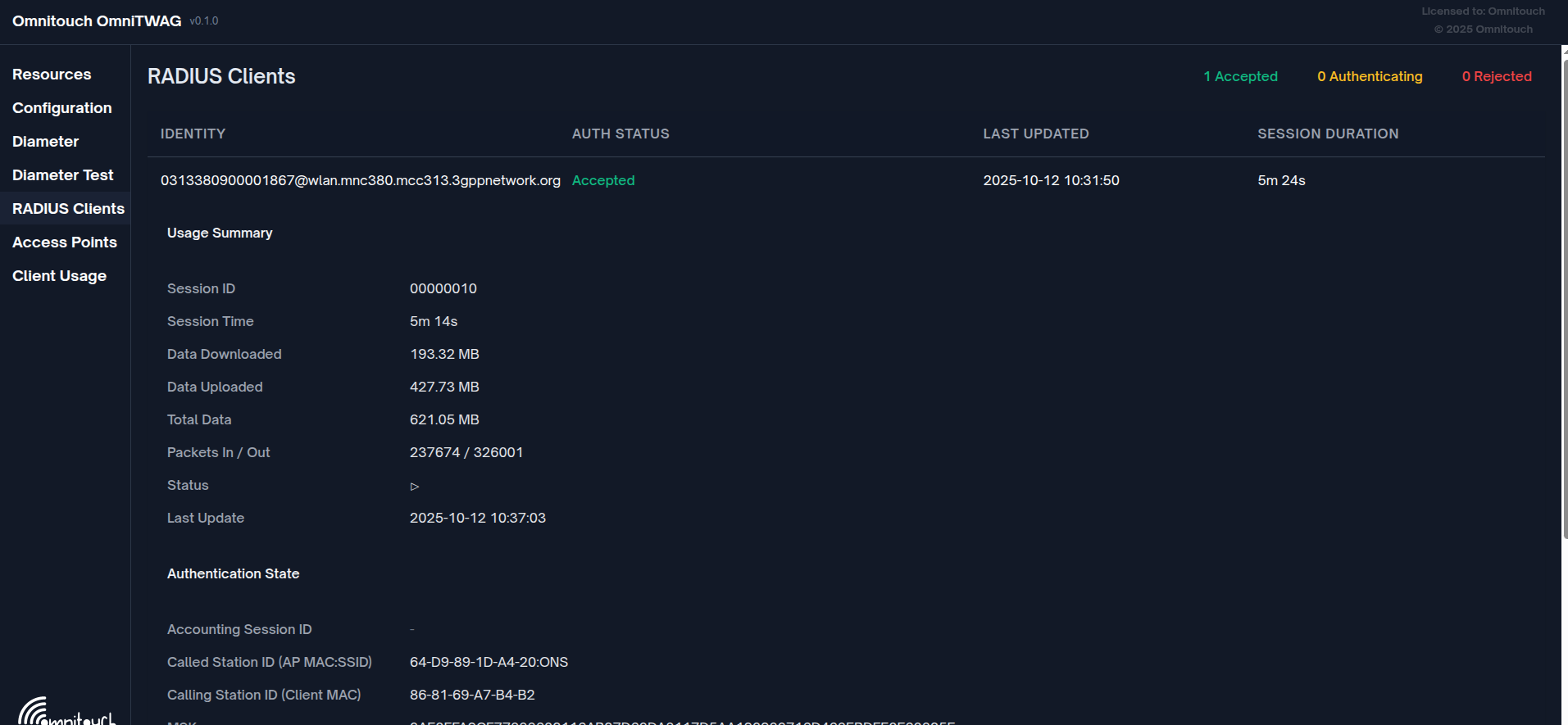

Web UI Client

Deployment Scenarios

Scenario 1: Local Breakout (Recommended for Performance)

Benefits:

Lower latency (no hairpinning to core)
Reduced core network load
Better user experience for high-bandwidth applications
Cost savings on backhaul capacity

Scenario 2: Home Network Routing (GTP Tunnel)

Benefits:

Consistent policy enforcement
Centralized charging/billing
Corporate VPN/security policies apply
Seamless mobility between WiFi and cellular

SWx Connection Options

Option 1: Direct Connection to HSS

Use Case: Simple deployments, lab environments, single HSS

Benefits:

Lower latency (no hop through DRA)
Simplified configuration
Easier troubleshooting

Option 2: Via DRA (Diameter Routing Agent)

Use Case: Multi-HSS deployments, roaming scenarios, large-scale networks

Benefits:

Centralized routing logic
Load balancing across multiple HSS
Roaming support (routes to home HSS)
Redundancy and failover
Session stickiness

Charging Flow

The TWAG can be fully integrated to send Diameter Gy based online charging requests to an Online Charging System (OCS).

This allows for accounting of all data consumed on WiFi, against the balance of the customer, and is delivered via the AP on RADIUS and converted to Gy by the TWAG and forwarded to the DRA/OCS.

In all modes, usage is traced by the TWAG metrics.

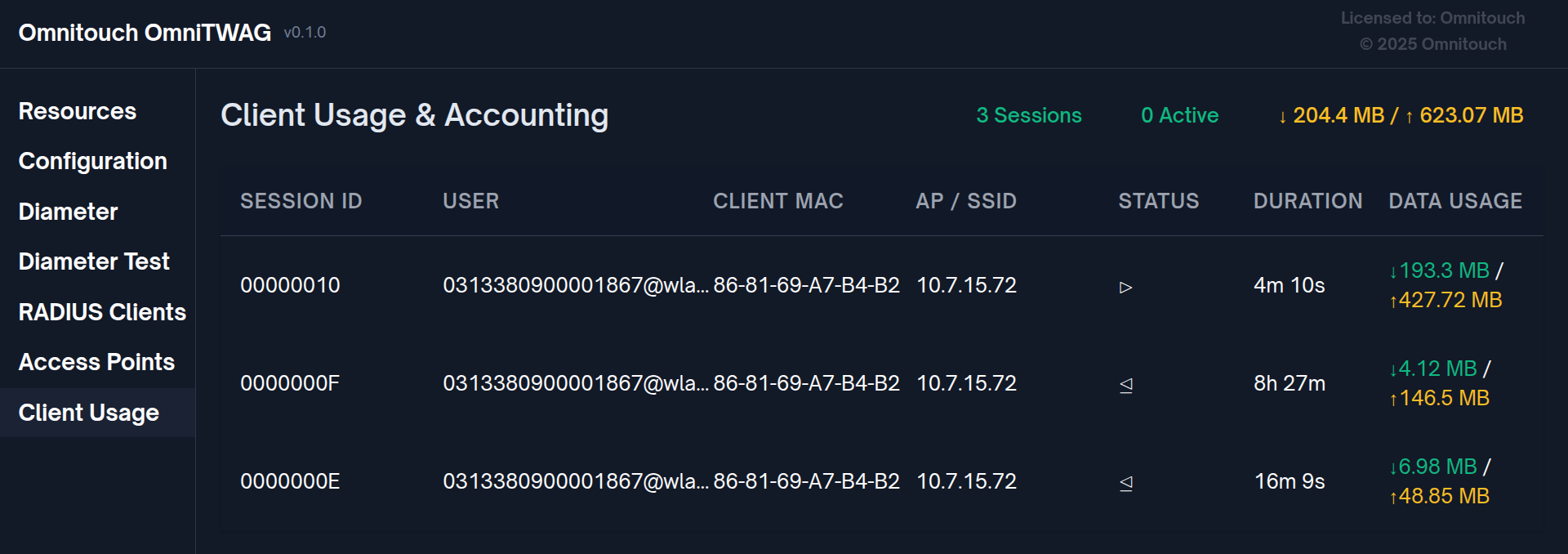

Web UI Client Usage & Accounting

Charging Modes

The TWAG supports three online charging modes:

1. Charging Disabled

No credit control requests are sent. No authorization of balance is performed.

Use Cases:

Open/free WiFi networks
Lab/testing environments
Networks with offline charging only (RADIUS accounting to billing)

Flow:

2. Authorization Only

A CCR-Initial (Credit-Control-Request) is sent to the OCS at the start of the WiFi session to validate the subscriber has balance, but the balance is not drawn down during the session.

Use Cases:

Validate subscriber has active account/balance
Prevent WiFi access for suspended accounts
Check service eligibility without quota tracking
Allow WiFi as bonus/unlimited service for paying customers

Flow:

Configuration:

OCS is queried at session start (CCR-I) and end (CCR-T)
No CCR-Update messages sent during session
Subscriber authorized based on account status, not quota
Usage reported at end of session for informational purposes only

3. Fully Gy Online Charging (Full Implementation)

Standard 3GPP online charging flow is followed. All usage on WiFi is passed to the OCS for charging, with the subscriber cut off once they have exceeded their quota.

Use Cases:

Prepaid data services
Pay-per-use WiFi
Quota-based plans (e.g., 10GB monthly allowance)
Real-time charging and cutoff

Flow:

Configuration:

OCS queried at session start (CCR-I), during session (CCR-U), and at end (CCR-T)
Quota requested in configurable chunks (e.g., 10MB, 50MB, 100MB)
CCR-Update triggered at configurable threshold (e.g., 80% of granted quota)
Validity timer triggers re-authorization if quota not exhausted
Forced disconnection when quota exhausted
Real-time balance deduction

Authentication Flow

Complete EAP-AKA Authentication Sequence

Key Points in Authentication Flow

MAR/MAA is the end of HSS communication: After receiving the MAA (Multimedia-Auth-Answer) with XRES, the TWAG handles all subsequent verification locally.
TWAG performs RES verification: The HSS provides the expected response (XRES), but the TWAG compares it against the actual RES from the UE. The HSS is NOT involved in this comparison.
Authentication happens at TWAG: This is different from some diagrams that show HSS doing verification—in the actual 3GPP architecture, the AAA server (TWAG) performs the comparison.

Identity Format

The device responds with its permanent identity (IMSI) in NAI format:

5055700000000000001@wlan.mnc057.mcc505.3gppnetwork.org

Format: 0<IMSI>@wlan.mnc<MNC>.mcc<MCC>.3gppnetwork.org

Note - The first digit,before the IMSI is the identity, this is generally 0 but may be another single digit number for multi-IMSI SIMs / handsets.

Master Session Key (MSK)

The Master Session Key (MSK) is a 512-bit (64-byte) cryptographic key derived during EAP-AKA authentication. It serves as the root key material for securing the WiFi connection.

MSK Derivation:

Both UE and TWAG independently derive the same MSK
UE derives from CK/IK computed by SIM
TWAG derives from CK/IK received from HSS
MSK = PRF'(CK || IK, "Full Authentication", IMSI, ...)

MSK Usage:

PMK Derivation: PMK = first 256 bits (32 bytes) of MSK
WPA2 4-Way Handshake: Both UE and AP use PMK to derive PTK
Data Encryption: All WiFi data frames encrypted with Temporal Key (TK) from PTK

Why MSK is Critical:

Confidentiality: Without MSK, WiFi traffic would be unencrypted
Integrity: Prevents tampering with WiFi frames
Authentication Binding: Links EAP authentication to WiFi encryption
Replay Protection: Fresh MSK prevents replay attacks
Perfect Forward Secrecy: Compromise of one MSK doesn't affect others

Resynchronization Recovery

If the device detects a sequence number mismatch (SQN out of sync), it initiates resynchronization:

Device computes AUTS (Authentication Token - Synchronization)
Sends EAP-AKA Synchronization-Failure with AT-AUTS
TWAG forwards AUTS to HSS
HSS resyncs sequence number and generates new vectors
Authentication retried with fresh vectors

This is transparent to the end user and requires no operator intervention.

Configuration Guide

The TWAG is configured via Elixir configuration files in the config/ directory. The main runtime configuration is in config/runtime.exs.

For production deployments, configuration is centrally managed. The below is a reference only, any values changed on a production node will be lost next time the automated orchestration is run.

Diameter Configuration

Located in config :diameter_ex:

config :diameter_ex,
  diameter: %{
    # Service name for the Diameter stack
    service_name: :omnitouch_twag,

    # Local IP address to bind Diameter service
    listen_ip: "10.5.198.200",

    # Local port for Diameter connections (standard is 3868)
    listen_port: 3868,

    # Diameter Origin-Host
    host: "omnitwag",

    # Diameter Origin-Realm (matches your network realm)
    realm: "epc.mnc057.mcc505.3gppnetwork.org",

    # Diameter peers (HSS, DRA, AAA servers)
    peers: [
      %{
        # Peer Diameter Origin-Host
        host: "omni-hss01.epc.mnc057.mcc505.3gppnetwork.org",

        # Peer Diameter Origin-Realm
        realm: "epc.mnc057.mcc505.3gppnetwork.org",

        # Peer IP address (can be HSS directly or DRA)
        ip: "10.179.2.140",

        # Peer port (standard is 3868)
        port: 3868,

        # Use TLS for transport security
        tls: false,

        # Transport protocol (:diameter_tcp or :diameter_sctp)
        transport: :diameter_tcp,

        # Initiate connection to peer (true) or wait for peer to connect (false)
        initiate_connection: true
      }
    ]
  }

Realm Format follows 3GPP TS 23.003:

epc.mnc<MNC>.mcc<MCC>.3gppnetwork.org

Where:

MNC = Mobile Network Code (e.g., 057)
MCC = Mobile Country Code (e.g., 505 for Australia)

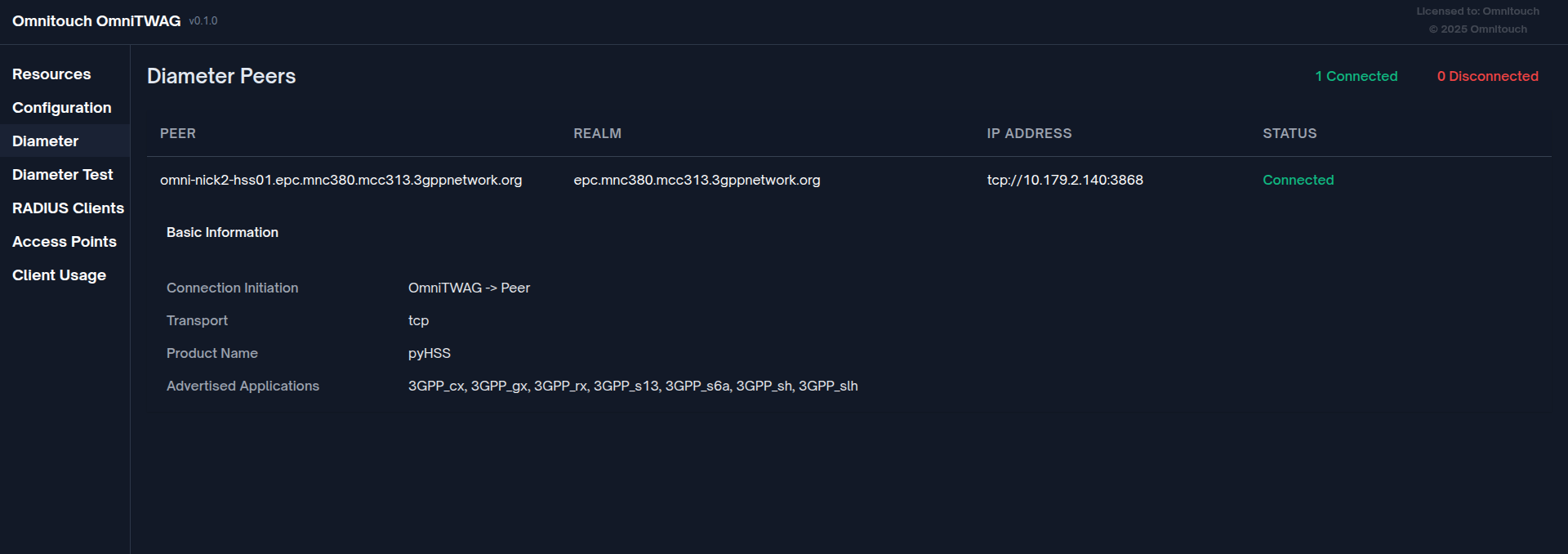

Web UI view showing diameter peers

Note on DRA Usage: To use OmniDRA, configure the peer IP to point to the DRA instead of directly to the HSS. The DRA will then route messages to the appropriate HSS based on routing rules (Destination-Realm, IMSI range, etc.).

RADIUS Configuration

Located in config :omnitwag:

config :omnitwag,
  radius_config: %{
    # List of allowed source IP subnets for RADIUS clients
    # Empty list = allow all (not recommended for production)
    allowed_source_subnets: ["10.7.15.0/24", "192.168.1.0/24"],

    # Shared secret for RADIUS clients
    # All APs must use this secret
    secret: "YOUR_STRONG_SECRET_HERE"
  }

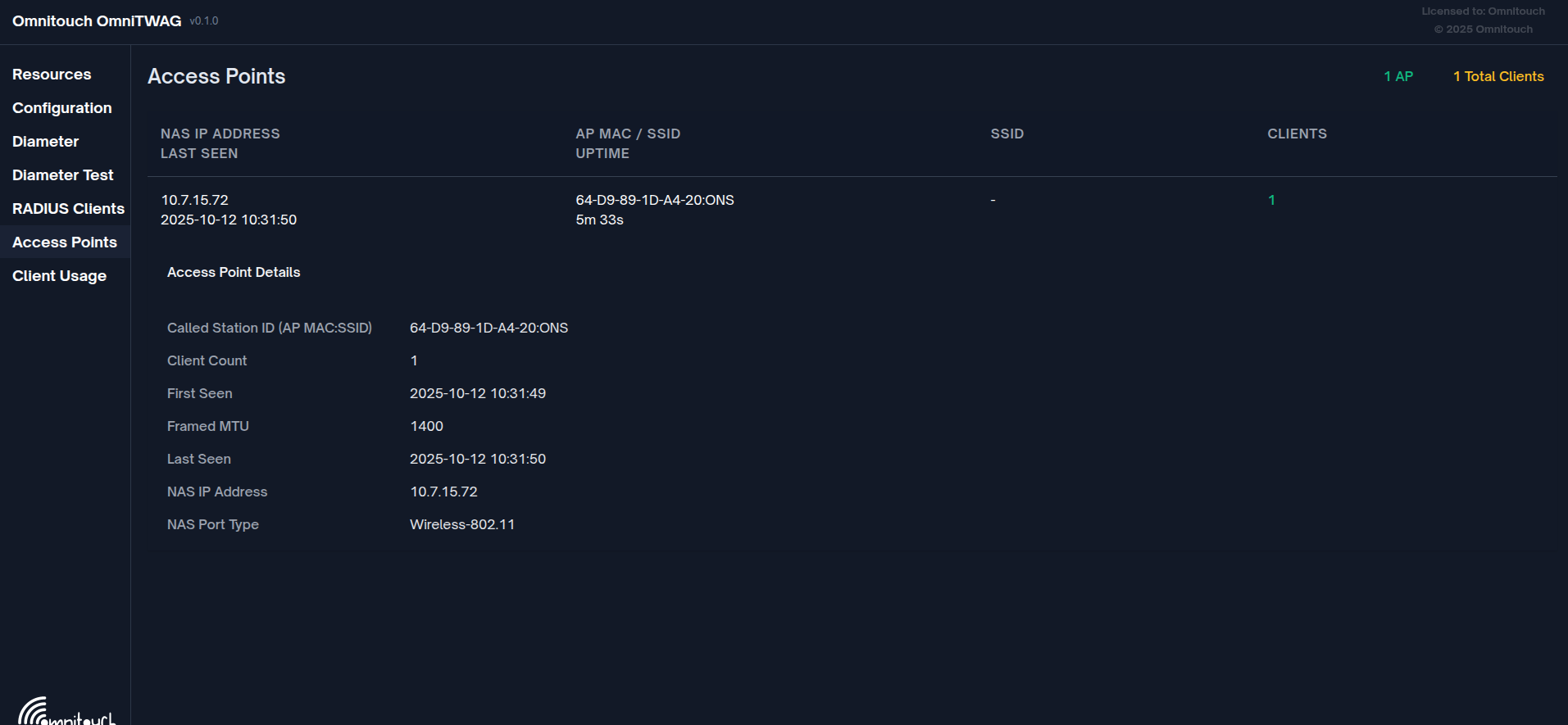

Web UI view showing connected WiFi APs

Security Best Practices:

Use strong RADIUS shared secrets (20+ characters)
Configure allowed_source_subnets to restrict AP access
Use firewall rules to further restrict access to ports 1812/1813

Example subnet configuration:

allowed_source_subnets: ["10.7.15.0/24", "192.168.1.0/24"]

If empty, all sources are allowed (only suitable for lab/testing).

Prometheus Monitoring Configuration

Located in config :omnitwag:

config :omnitwag,
  prometheus: %{
    # Port for Prometheus metrics endpoint
    port: 9568
  }

Access metrics at: http://<twag-ip>:9568/metrics

Port Summary

Port	Protocol	Purpose
1812	UDP	RADIUS Authentication
1813	UDP	RADIUS Accounting
3868	TCP	Diameter (SWx to HSS/DRA)
443	TCP	HTTPS Web Dashboard
8444	TCP	HTTPS REST API
9568	TCP	Prometheus Metrics

Access Point Setup

Supported Access Points

OmniTWAG works with any WiFi AP that supports:

WPA2-Enterprise (802.1X authentication)
RADIUS client functionality
EAP-AKA authentication method

Tested platforms: Cisco Aironet, Aruba, Ubiquiti UniFi, Ruckus, hostapd-based APs

General AP Configuration Requirements

WPA2-Enterprise (802.1X) security mode
RADIUS server pointing to TWAG IP address
RADIUS authentication port: 1812
RADIUS accounting port: 1813 (optional but recommended)
RADIUS shared secret: Must match TWAG configuration
EAP method: EAP-AKA (or "All")

Cisco AP Configuration Example

CLI Configuration:

! Configure RADIUS server
radius-server host 10.5.198.200 auth-port 1812 acct-port 1813 key YOUR_SHARED_SECRET

! Configure SSID with 802.1X
dot11 ssid OPERATOR-WIFI
   vlan 10
   authentication open eap eap_methods
   authentication network-eap eap_methods
   authentication key-management wpa version 2

! Associate SSID with radio interface
interface Dot11Radio0
   encryption mode ciphers aes-ccm
   ssid OPERATOR-WIFI

Web Interface:

Navigate to Security → AAA → RADIUS Server
Add RADIUS server: 10.5.198.200:1812 with shared secret
Navigate to WLAN configuration
Set Security to WPA2-Enterprise
Set EAP method to EAP-AKA or All
Assign RADIUS server group

hostapd Configuration Example

For Linux-based APs (OpenWrt, embedded systems):

# /etc/hostapd/hostapd.conf

interface=wlan0
driver=nl80211
ssid=OPERATOR-WIFI

# WPA2-Enterprise
wpa=2
wpa_key_mgmt=WPA-EAP
wpa_pairwise=CCMP
ieee8021x=1

# RADIUS configuration
auth_server_addr=10.5.198.200
auth_server_port=1812
auth_server_shared_secret=YOUR_SHARED_SECRET

acct_server_addr=10.5.198.200
acct_server_port=1813
acct_server_shared_secret=YOUR_SHARED_SECRET

# EAP configuration
eap_server=0

# Hotspot 2.0 (Optional - for automatic offload)
interworking=1
internet=1
anqp_3gpp_cell_net=505,057
domain_name=wlan.mnc057.mcc505.3gppnetwork.org
nai_realm=0,wlan.mnc057.mcc505.3gppnetwork.org,0,21[2:1][5:7]
roaming_consortium=505057
hs20=1

Network Architecture Best Practices

Important: Place APs and TWAG on trusted network segments. Use firewall rules to:

Allow only APs to reach TWAG ports 1812/1813
Allow TWAG to reach HSS port 3868
Restrict management access to TWAG dashboard (port 443)

Hotspot 2.0 Integration

Hotspot 2.0 (Passpoint) Overview

Hotspot 2.0 (also called Passpoint or 802.11u) is a WiFi Alliance standard that enables automatic, secure WiFi network discovery and connection without user interaction. It's the key technology for seamless WiFi offload.

Key Features:

Automatic Network Discovery: Device finds compatible networks based on criteria
Automatic Authentication: Uses SIM credentials (EAP-AKA) without user input
Encrypted Initial Association: OSEN (OSU Server-only Authentication) for secure provisioning
Roaming Agreements: Supports visited networks (like cellular roaming)
Prioritization: Device prefers operator-owned networks

Hotspot 2.0 AP Configuration

Requirements for AP:

802.11u Support: ANQP query/response capability
WPA2-Enterprise: 802.1X authentication
EAP-AKA Support: Must support EAP-AKA method
ANQP Configuration: Advertise correct operator information

Example Configuration (hostapd-based AP):

# Hotspot 2.0 / Passpoint Configuration
interworking=1
internet=1
asra=0
esr=0
uesa=0

# ANQP Configuration
anqp_3gpp_cell_net=505,057
domain_name=omnitouchns.com,wlan.mnc057.mcc505.3gppnetwork.org

# NAI Realm configuration
nai_realm=0,wlan.mnc057.mcc505.3gppnetwork.org,0,21[2:1][5:7]
# Format: <encoding>,<realm>,<eap-method>[auth-id:auth-val]
# 21 = EAP-AKA
# 2:1 = Credential Type: SIM
# 5:7 = Tunneled EAP Method: None (direct EAP-AKA)

# Roaming Consortium
roaming_consortium=505057
# MCC=505 (USA), MNC=057 (operator specific)

# Venue Information (optional)
venue_group=1
venue_type=8
venue_name=eng:Operator Public WiFi

# WPA2-Enterprise Configuration
wpa=2
wpa_key_mgmt=WPA-EAP
rsn_pairwise=CCMP
ieee8021x=1

# RADIUS Configuration (points to OmniTWAG)
auth_server_addr=10.5.198.200
auth_server_port=1812
auth_server_shared_secret=YOUR_SHARED_SECRET

acct_server_addr=10.5.198.200
acct_server_port=1813
acct_server_shared_secret=YOUR_SHARED_SECRET

# SSID Configuration
ssid=OperatorWiFi
utf8_ssid=1

# Hotspot 2.0 Indication
hs20=1
hs20_oper_friendly_name=eng:Operator WiFi Network

Automatic Offload Behavior

How Automatic Offload Works:

Device with Passpoint profile performs periodic WiFi scan
Sends ANQP query to detected APs
If ANQP response matches profile (MCC/MNC, roaming consortium):
- Priority is HIGH (home network) or MEDIUM (roaming partner)
If priority ≥ threshold and signal > minimum:
- Automatic EAP-AKA authentication
If authentication successful and priority > current connection:
- Switch to WiFi, disconnect cellular data
Monitor signal quality and maintain connectivity

Priority Factors:

Home vs. Roaming: Home network (MCC/MNC match) preferred over roaming
Signal Strength: Stronger signal preferred
Security: WPA2-Enterprise preferred over open/WPA2-PSK
Policy: Operator can configure preferred networks
User Override: User can manually disable WiFi or prefer cellular

Monitoring and Management

Web Dashboard

Access the real-time monitoring dashboard at: https://<twag-ip>/

Features:

RADIUS Clients View: Active subscribers, authentication status, session details
Access Points View: Connected APs, client counts, SSID information
Client Usage View: Accounting data, session time, data usage
Diameter Peers View: HSS/DRA connection status

Prometheus Integration

Configure Prometheus to scrape TWAG metrics:

# prometheus.yml
scrape_configs:
  - job_name: 'omnitwag'
    static_configs:
      - targets: ['10.5.198.200:9568']
    metrics_path: '/metrics'
    scrape_interval: 15s

Available Metrics:

RADIUS Server Metrics:

radius_access_request_count - Total RADIUS Access-Request packets received
radius_access_accept_count - Total Access-Accept packets sent
radius_access_reject_count - Total Access-Reject packets sent
radius_access_challenge_count - Total Access-Challenge packets sent
radius_accounting_request_count{status_type} - Total Accounting-Request packets (tagged by status: start, stop, interim_update, accounting_on, accounting_off)
radius_active_clients_count - Currently authenticated clients (polled every 5 seconds)
radius_access_points_count - Registered access points (polled every 5 seconds)

EAP-AKA Authentication Metrics:

eap_aka_identity_count - EAP-AKA Identity exchanges
eap_aka_challenge_count - EAP-AKA Challenge exchanges
eap_aka_sync_failure_count - Synchronization failures (SQN resync events)
eap_aka_auth_success_count - Successful authentications
eap_aka_auth_reject_count - Rejected authentications

Diameter Protocol Metrics:

diameter_message_count{application, command, direction} - Total Diameter messages (tagged by application, command type, and direction)

Erlang VM Memory Metrics:

vm_memory_total - Total amount of memory allocated (bytes)
vm_memory_processes - Memory used by Erlang processes (bytes)
vm_memory_processes_used - Memory used by Erlang processes excluding unused allocated memory (bytes)
vm_memory_system - Memory used by the Erlang runtime system (bytes)
vm_memory_atom - Memory used by atoms (bytes)
vm_memory_atom_used - Memory used by atoms excluding unused allocated memory (bytes)
vm_memory_binary - Memory used by binaries (bytes)
vm_memory_code - Memory used by loaded code (bytes)
vm_memory_ets - Memory used by ETS tables (bytes)

Erlang VM System Metrics:

vm_system_info_process_count - Current number of Erlang processes
vm_system_info_port_count - Current number of ports
vm_system_info_atom_count - Current number of atoms
vm_system_info_schedulers - Number of scheduler threads
vm_system_info_schedulers_online - Number of schedulers currently online

Erlang VM Scheduler Metrics:

vm_statistics_run_queue - Total length of all run queues
vm_total_run_queue_lengths_total - Total length of all run queues (total schedulers)
vm_total_run_queue_lengths_cpu - Total length of CPU scheduler run queues
vm_total_run_queue_lengths_io - Total length of IO scheduler run queues

Metric Collection:

RADIUS and EAP-AKA metrics are emitted in real-time as events occur
Active clients and access points counts are polled every 5 seconds
VM metrics are polled every 5 seconds from the Erlang runtime
All metrics are exposed in Prometheus format at http://<twag-ip>:9568/metrics

Logging

The TWAG uses Elixir's Logger for structured logging.

View Logs (systemd):

# Real-time log tail
journalctl -u twag -f

# Last 100 lines
journalctl -u twag -n 100

# Logs since last boot
journalctl -u twag -b

# Logs for specific time range
journalctl -u twag --since "2025-10-12 10:00:00" --until "2025-10-12 11:00:00"

Key Log Messages:

RADIUS server listening on port 1812 - Server started
From {IP}: Access-Request received - RADIUS request from AP
Phase 1: Identity Response - Initial EAP identity
Phase 2: AKA Challenge - Challenge sent to device
Authentication ACCEPTED - Successful authentication
Authentication REJECTED - Failed authentication
Registered AP: {IP} - New AP detected

Troubleshooting

Authentication Failures

Symptom: Client cannot connect to WiFi

Diagnostic Steps:

Check TWAG logs: journalctl -u twag -f
Verify RADIUS shared secret matches between AP and TWAG
Confirm RADIUS packets reaching TWAG: tcpdump -i eth0 port 1812
Check subscriber provisioning in HSS/configuration

Common Causes:

Incorrect RADIUS shared secret
Firewall blocking UDP 1812/1813
RES/XRES mismatch (wrong SIM Ki or HSS configuration)
Sequence number (SQN) out of sync (should auto-recover via resync)
Network connectivity issues between AP and TWAG

Diameter Connection Issues

Symptom: Diameter peer not connecting to HSS/DRA

Diagnostic Steps:

Verify network connectivity: telnet <hss-ip> 3868
Check Diameter configuration (Origin-Host, Origin-Realm, peer IP)
Review HSS/DRA logs for connection attempts
Verify firewall allows TCP 3868

Common Causes:

Incorrect peer IP/port in configuration
Firewall blocking TCP 3868
Origin-Host/Realm mismatch
HSS/DRA not accepting connection from TWAG

Performance Issues

Symptom: Slow authentication (>5 seconds)

Diagnostic Steps:

Check HSS response time
Measure network latency: ping <hss-ip>, mtr <hss-ip>
Monitor TWAG resource usage: top, htop
Review Diameter request timeout settings

Common Causes:

HSS query timeout or slow response
High network latency
TWAG resource exhaustion (CPU/memory)
Too many concurrent authentications

Debug Tools

Packet Capture

# Capture RADIUS traffic
tcpdump -i eth0 -n port 1812 or port 1813 -w radius.pcap

# Capture Diameter traffic
tcpdump -i eth0 -n port 3868 -w diameter.pcap

# Capture from specific AP
tcpdump -i eth0 -n host 10.7.15.72 and port 1812 -w radius-ap1.pcap

Analyze with Wireshark (supports RADIUS and Diameter dissectors).

Interactive Console

Attach to running TWAG for live debugging:

# Remote shell to running TWAG
iex --sname debug --remsh twag@hostname --cookie <cookie>

From IEx console:

# List all authenticated clients
CryptoState.keys()

# Get specific client state
CryptoState.get("0505338057900001867@wlan.mnc057.mcc505.3gppnetwork.org")

# List all APs
APState.list()

# List accounting sessions
ClientUsage.list()

Common Error Messages

Error Message	Meaning	Solution
`Message-Authenticator validation failed`	Shared secret mismatch	Verify RADIUS secret matches on AP and TWAG
`RES verification failed: expected <XRES>, got <RES>`	Authentication response incorrect	Check SIM Ki, verify HSS provisioning
`Diameter peer connection timeout`	Can't reach HSS	Check network, firewall, HSS configuration
`Failed to decode EAP message`	Malformed EAP packet	Check AP firmware, may need AP update
`Unknown EAP-AKA subtype`	Unsupported EAP-AKA message	Device using non-standard EAP-AKA variant
`Sequence number synchronization required`	SQN out of sync	Normal, device will resync automatically

Standards Compliance

OmniTWAG implements the following 3GPP and IETF specifications:

3GPP TS 23.402: Architecture enhancements for non-3GPP accesses
3GPP TS 24.302: Access to EPC via non-3GPP access networks
3GPP TS 29.273: Diameter-based SWx/SWm interfaces
3GPP TS 33.402: Security aspects of non-3GPP accesses
3GPP TS 35.206: Milenage algorithm specification
RFC 2865: RADIUS Authentication
RFC 2866: RADIUS Accounting
RFC 3579: RADIUS support for EAP
RFC 4187: EAP-AKA authentication protocol
RFC 5448: EAP-AKA' (enhanced version)

Summary

OmniTWAG, created by Omnitouch, provides a complete, standards-compliant solution for 3GPP WiFi offload:

Flexible Deployment: Supports local breakout or home-routed traffic
Standards-Based: Implements 3GPP SWx, EAP-AKA, RADIUS protocols
Secure Authentication: SIM-based mutual authentication with automatic resync
Strong Encryption: MSK-derived keys provide WPA2 encryption
Hotspot 2.0 Ready: Enables fully automatic, zero-touch offload
Operator Control: Maintains identity, policy, and optionally billing
Flexible Connectivity: Direct HSS connection or via OmniDRA for routing/load balancing

Table of Contents​

Introduction​

Key Benefits​

What is WiFi Offload?​

How TWAG Enables Offload​

Deployment Architecture​

Network Topology​

Deployment Scenarios​

Scenario 1: Local Breakout (Recommended for Performance)​

Scenario 2: Home Network Routing (GTP Tunnel)​

SWx Connection Options​

Option 1: Direct Connection to HSS​

Option 2: Via DRA (Diameter Routing Agent)​

Charging Flow​

Charging Modes​

1. Charging Disabled​

2. Authorization Only​

3. Fully Gy Online Charging (Full Implementation)​

Authentication Flow​

Complete EAP-AKA Authentication Sequence​

Key Points in Authentication Flow​

Identity Format​

Master Session Key (MSK)​

Resynchronization Recovery​

Configuration Guide​

Diameter Configuration​

RADIUS Configuration​

Prometheus Monitoring Configuration​

Port Summary​

Access Point Setup​

Supported Access Points​

General AP Configuration Requirements​

Cisco AP Configuration Example​

hostapd Configuration Example​

Network Architecture Best Practices​

Hotspot 2.0 Integration​

Hotspot 2.0 (Passpoint) Overview​

Hotspot 2.0 AP Configuration​

Automatic Offload Behavior​

Monitoring and Management​

Web Dashboard​

Prometheus Integration​

Logging​

Troubleshooting​

Authentication Failures​

Diameter Connection Issues​

Performance Issues​

Debug Tools​

Packet Capture​

Interactive Console​

Common Error Messages​

Standards Compliance​

Summary​

Table of Contents

Introduction

Key Benefits

What is WiFi Offload?

How TWAG Enables Offload

Deployment Architecture

Network Topology

Deployment Scenarios

Scenario 1: Local Breakout (Recommended for Performance)

Scenario 2: Home Network Routing (GTP Tunnel)

SWx Connection Options

Option 1: Direct Connection to HSS

Option 2: Via DRA (Diameter Routing Agent)

Charging Flow

Charging Modes

1. Charging Disabled

2. Authorization Only

3. Fully Gy Online Charging (Full Implementation)

Authentication Flow

Complete EAP-AKA Authentication Sequence

Key Points in Authentication Flow

Identity Format

Master Session Key (MSK)

Resynchronization Recovery

Configuration Guide

Diameter Configuration

RADIUS Configuration

Prometheus Monitoring Configuration

Port Summary

Access Point Setup

Supported Access Points

General AP Configuration Requirements

Cisco AP Configuration Example

hostapd Configuration Example

Network Architecture Best Practices

Hotspot 2.0 Integration

Hotspot 2.0 (Passpoint) Overview

Hotspot 2.0 AP Configuration

Automatic Offload Behavior

Monitoring and Management

Web Dashboard

Prometheus Integration

Logging

Troubleshooting

Authentication Failures

Diameter Connection Issues

Performance Issues

Debug Tools

Packet Capture

Interactive Console

Common Error Messages

Standards Compliance

Summary
