OmniLCS Web Interface Guide

The OmniLCS Control Panel is a real-time web interface served over HTTPS on port 443. It is built with Phoenix LiveView, providing live-updating views without page reloads. All pages auto-refresh every 2-3 seconds.

Overview of Pages

The navigation bar presents pages in this order:

Page	Path	Description
Dashboard	/dashboard	System overview with key metrics
Location	/location	Location services testing interface
Cells	/cells	Cell database management
Diameter	/diameter	Diameter peer monitoring
CBC 2G	/cbc	2G CBSP monitoring
CBC 3G	/cbc3g	3G SABP monitoring
CBC 4G	/cbc4g	4G SBC-AP broadcast composer and monitoring
CAP Alerts	/cap	CAP alert ingestion, approval, and broadcast monitoring

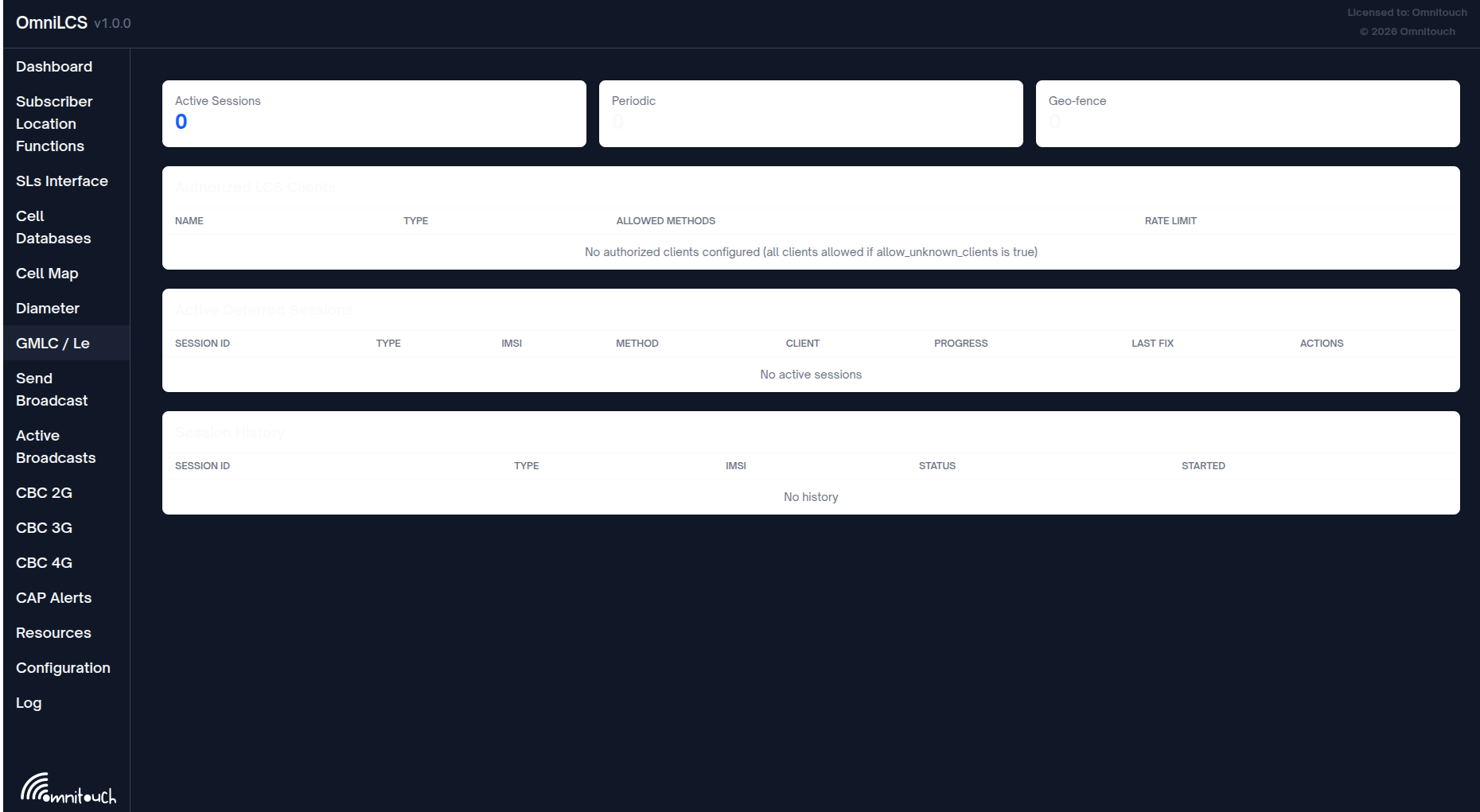

GMLC / Le	/gmlc	GMLC Le interface monitoring, deferred session management

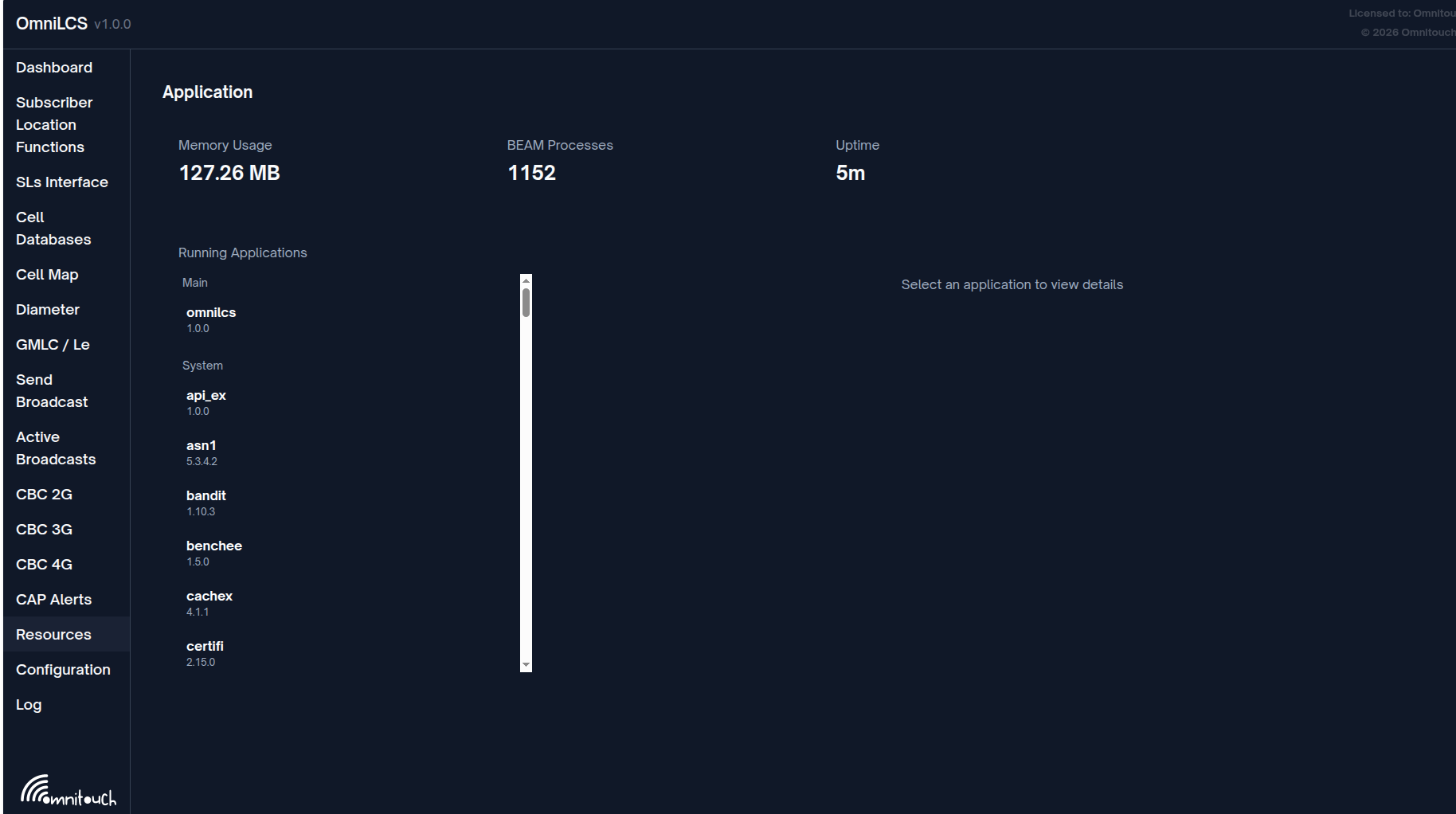

Application	/application	OTP application resource viewer (built-in)
Configuration	/configuration	Runtime configuration viewer (built-in)
Log	/log	Real-time log viewer (built-in)

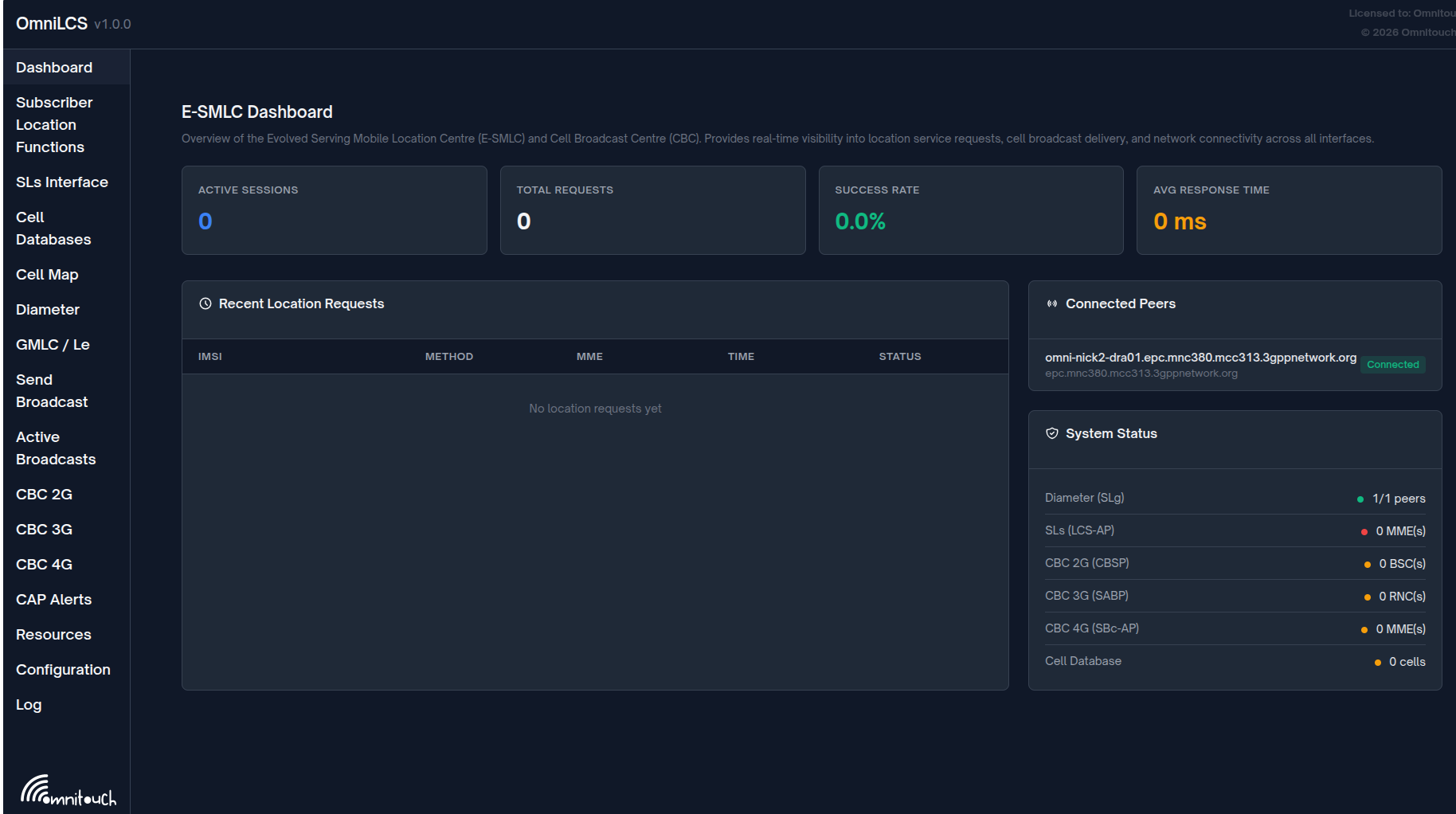

Dashboard

Path: /dashboard Refresh: Every 2 seconds

The dashboard provides a high-level operational overview of the entire OmniLCS system.

Statistics Cards

Four summary cards across the top:

Card	Description
Active Sessions	Number of in-progress location sessions
Total Requests	Total location requests processed since startup
Success Rate	Percentage of completed vs total requests
Avg Response Time	Average positioning duration in milliseconds

Recent Location Requests

A table showing the 20 most recent location sessions with columns:

Column	Description
IMSI	UE identifier
Method	Positioning method (Cell, E-CID, GNSS, OTDOA, Hybrid)
MME	MME host that originated the request
Time	Request timestamp (HH:MM:SS)
Status	Color-coded badge (Active, Completed, Error, Timeout)

Connected Peers

List of SLs (LCS-AP) and Diameter peers in "Connected" state, showing:

• Peer hostname
• Interface type (SLs or Diameter)

System Status

Indicator lights for subsystem health:

Indicator	Green	Yellow	Red
SLs Interface (LCS-AP)	At least 1 MME SCTP association established	--	No MME connections
Diameter Service	At least 1 peer connected	--	No peers connected
Cell Database	Cells loaded	0 cells	--

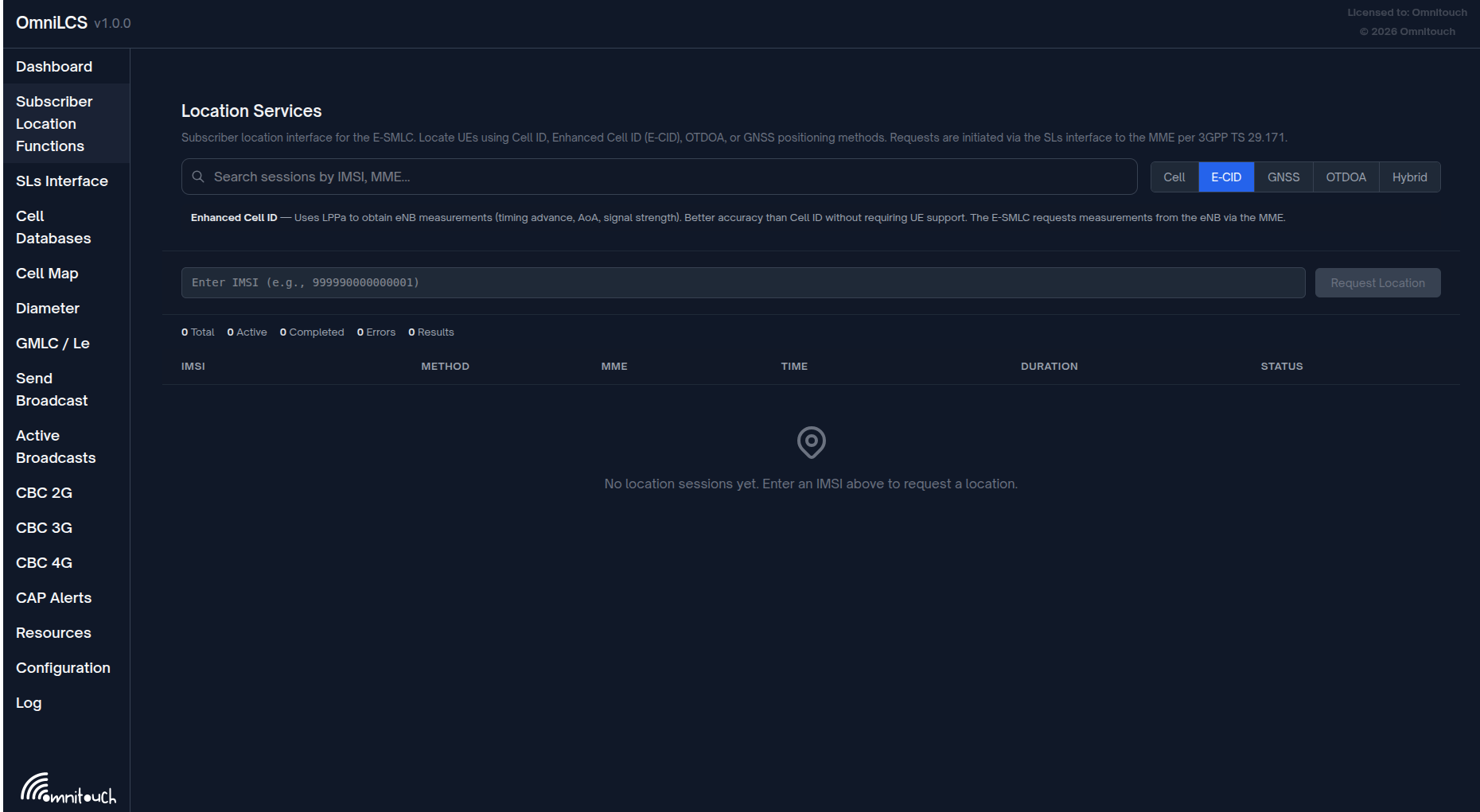

Location

Path: /location Refresh: Every 2 seconds

Interactive location services testing interface for manually requesting UE positions.

Method Selector

Toggle buttons to select the positioning method:

Method	Description
Cell	Cell ID based, fastest, coarsest accuracy
E-CID	Enhanced Cell ID using eNB measurements via LPPa
GNSS	GPS/GNSS via LPP, highest accuracy
OTDOA	Multilateration from PRS measurements
Hybrid	Combined methods with fallback

Each method shows a description panel explaining how it works.

Request Form

• IMSI Input: Enter the IMSI of the UE to locate (e.g., 999990000000001)
• Request Location Button: Sends the location request asynchronously

Requests run as background tasks. A spinning indicator shows while the request is in progress.

Session Counts

Summary badges showing:

• Total sessions
• Active sessions
• Completed sessions
• Error count
• Results received

Session History Table

All sessions sorted by creation time (newest first):

Column	Description
IMSI	UE identifier
Method	Positioning method
MME	Target MME host
Time	Session creation time
Duration	Time to complete (ms or seconds)
Status	Active, Completed, Error, Timeout

Completed sessions expand to show:

• Coordinates: Latitude and longitude
• Uncertainty: Position uncertainty in meters
• Confidence: Confidence percentage
• Source: Actual positioning source used
• Map: Embedded OpenStreetMap showing the position

Error sessions expand to show the error reason.

Notifications

Toast notifications appear for:

• Request initiated (info)
• Location retrieved (success, with coordinates)
• Location failed (error, with reason)

Notifications auto-dismiss after 5 seconds.

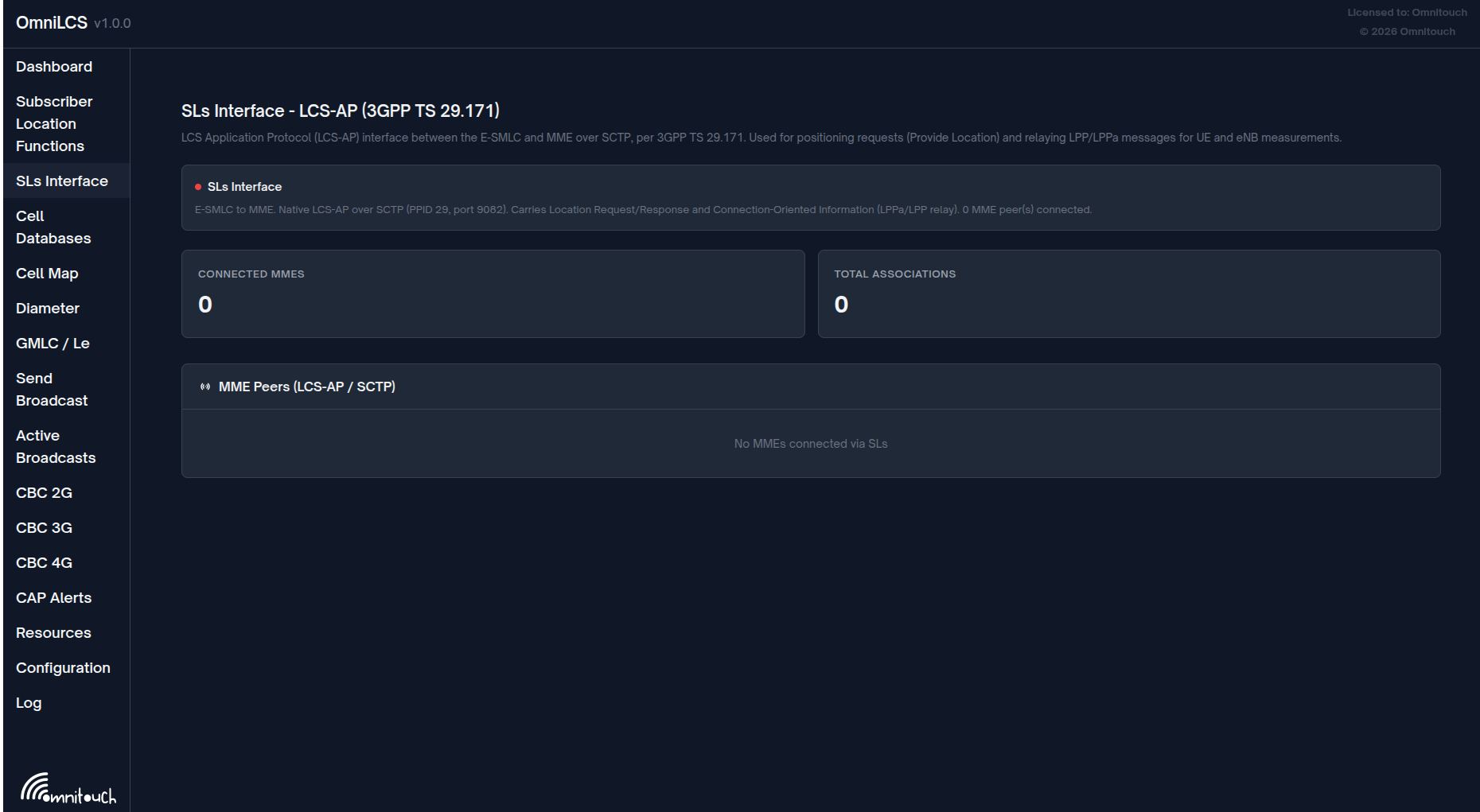

SLs Interface

Path: /sls Refresh: Every 2 seconds

Monitors the SLs (LCS-AP) interface between the E-SMLC and connected MMEs. Shows SCTP association status and connected MME peers.

Interface Status

Displays the LCS Application Protocol (LCS-AP) interface status:

• Protocol reference (3GPP TS 29.171)
• Listening configuration (PPID 29, port 9082)
• Number of connected MME peers
• Green/red indicator

Statistics

Card	Description
Connected MMEs	Number of active SCTP associations to MMEs
Total Associations	Total SCTP association count

MME Peers Panel

List of connected MME SCTP associations showing peer hostname and connection state.

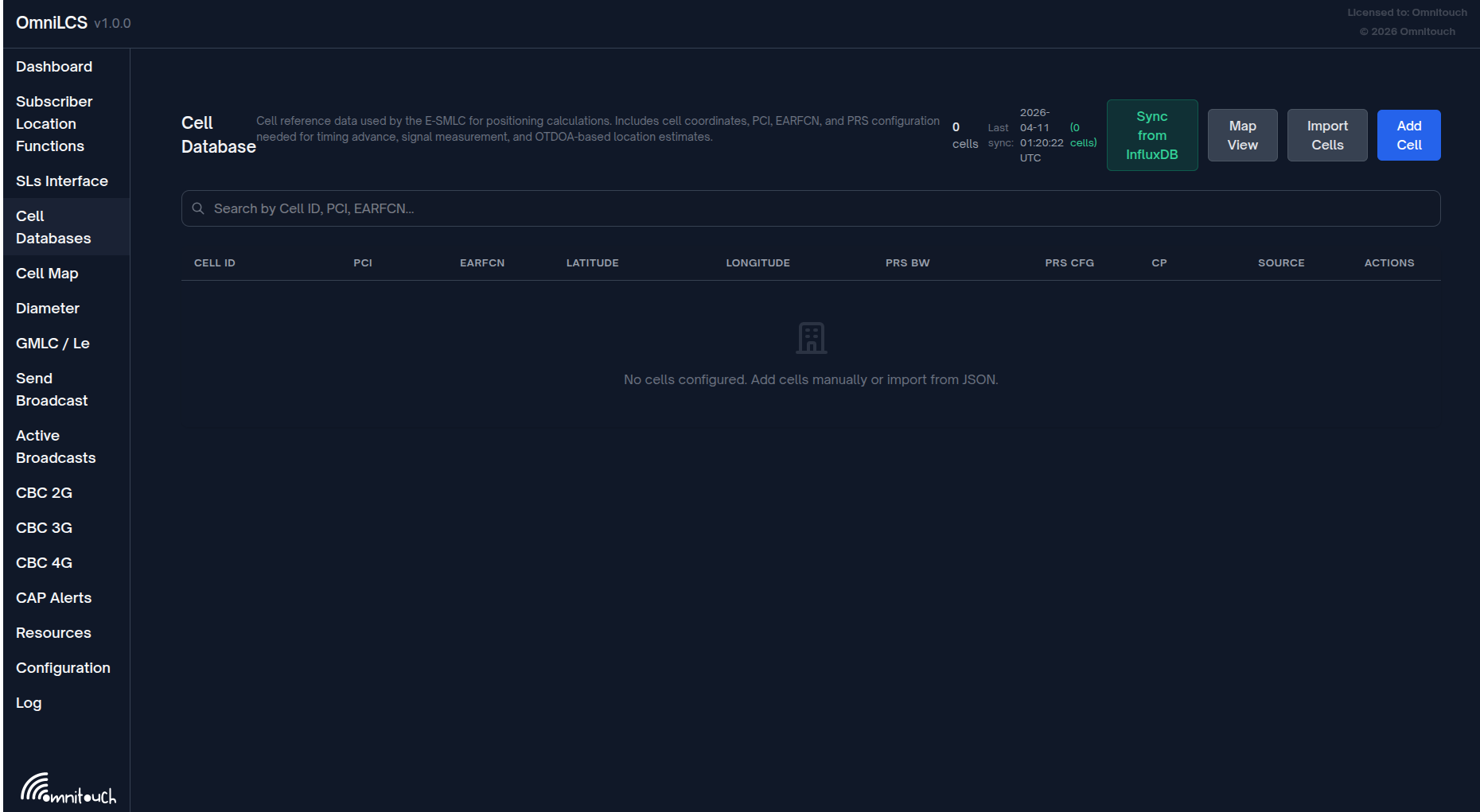

Cell Database

Path: /cells Refresh: Every 2 seconds

Manages the cell position database used for Cell ID positioning and OTDOA calculations.

Header Controls

Control	Description
Cell count	Total number of cells in the database
Last sync	Timestamp and result of the last InfluxDB sync
Sync from InfluxDB	Trigger immediate InfluxDB cell sync
Map View / Table View	Toggle between table and map display
Import JSON	Open JSON import form
Add Cell	Open manual cell entry form

Search

Search cells by Cell ID, PCI, EARFCN, cell name, or source.

Table View

Columns displayed:

Column	Description
Cell ID	Unique cell identifier
PCI	Physical Cell Identity
EARFCN	Radio frequency channel number
Latitude	Cell latitude
Longitude	Cell longitude
PRS BW	PRS bandwidth in resource blocks
PRS Cfg	PRS configuration index
CP	Cyclic prefix length
Source	Data source (InfluxDB or Manual)
Actions	Edit and Delete buttons

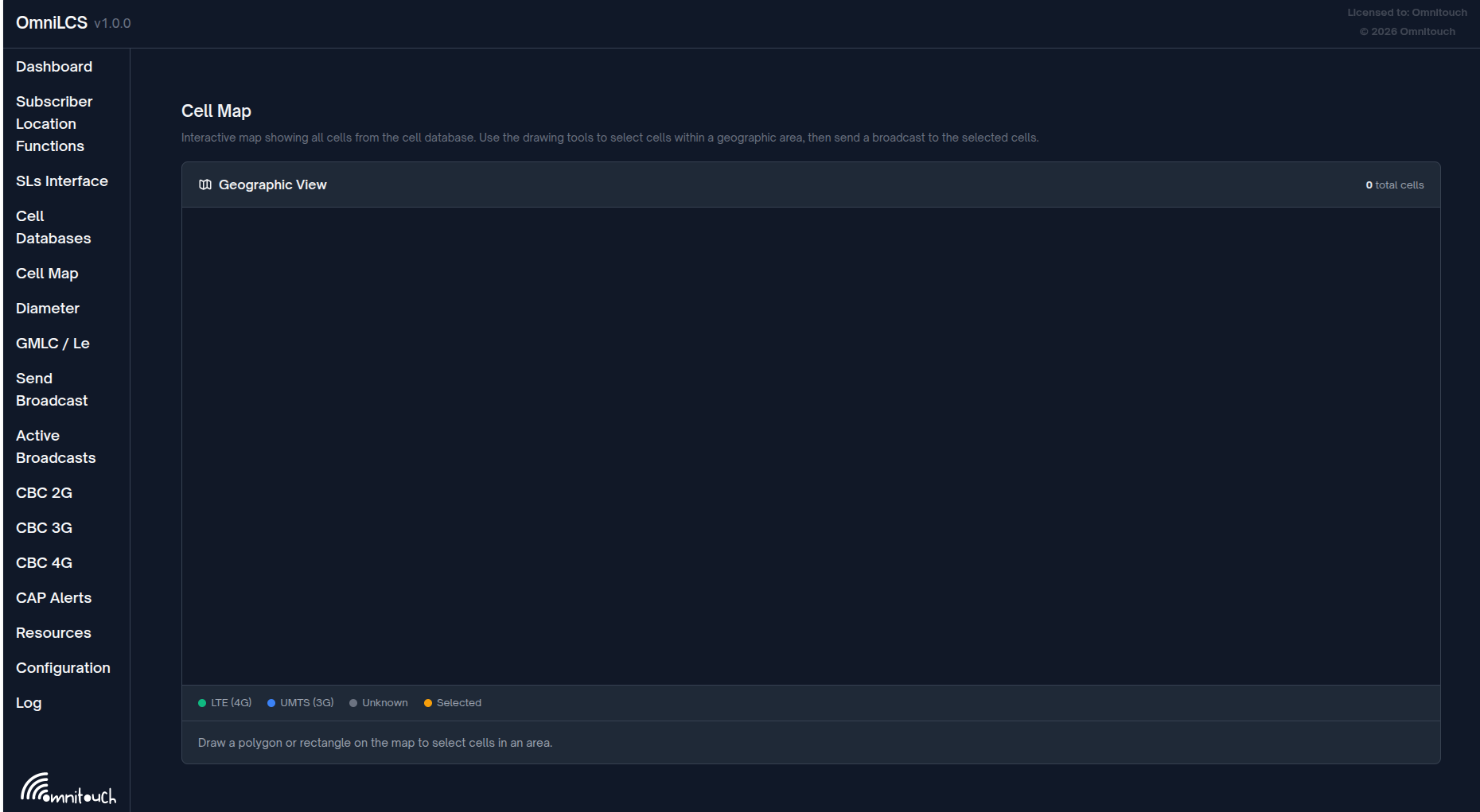

Map View

Displays all cells with coordinates on an embedded OpenStreetMap:

• Overview map centered on the average position of all cells
• Individual maps for each cell showing its precise position

Add / Edit Cell Form

Form fields organized in a grid:

Field	Description
Cell ID	Unique identifier (disabled when editing)
PCI	Physical Cell Identity (0-503)
EARFCN	Radio frequency channel number
Latitude	Decimal degrees
Longitude	Decimal degrees
Antenna Ports	1, 2, or 4
PRS Bandwidth (RBs)	6, 15, 25, 50, 75, or 100
PRS Config Index	0-4095
CP Length	Normal or Extended

JSON Import

Accepts a JSON array of cell objects pasted into a textarea. Required field: cell_id. Optional fields: pci, earfcn, latitude, longitude, prs_bandwidth, prs_config_index, cp_length, antenna_ports.

Delete Confirmation

Clicking "Del" on a cell row shows a confirmation modal before deletion.

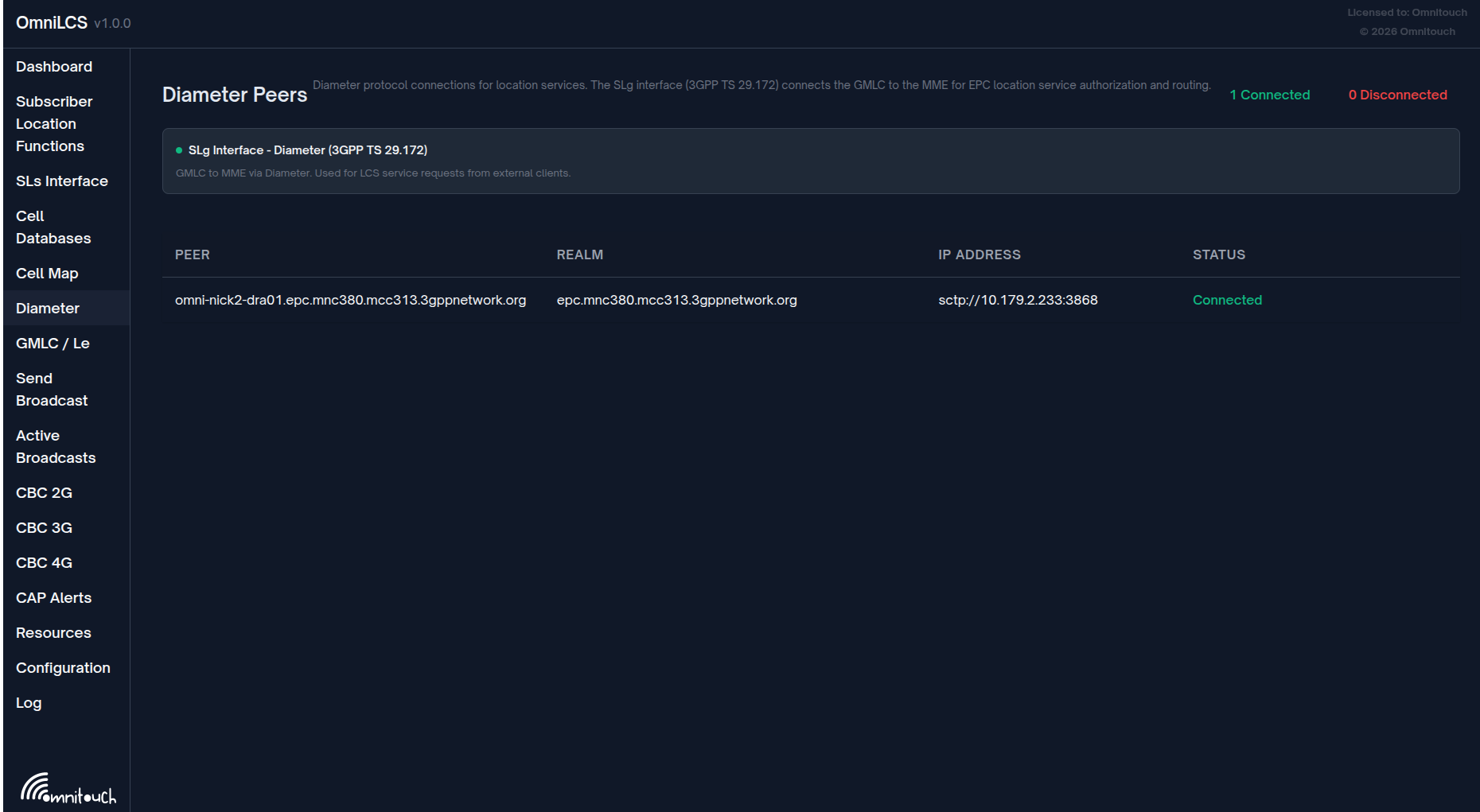

Diameter

Path: /diameter Refresh: Every 2 seconds

Monitors Diameter peer connections for the remaining Diameter interfaces (SLg and others). The E-SMLC-to-MME SLs interface uses native LCS-AP over SCTP and is monitored separately on the Dashboard page.

Interface Status

Two panels showing interface health:

Interface	Description
SLg Interface (TS 29.172)	GMLC to MME via DRA, Application ID 16777264
Other Diameter Interfaces	Additional Diameter applications as configured

Each shows a green/red indicator dot and description.

Peer Summary

Connected and disconnected peer counts displayed at the top.

Peer Table

Column	Description
Peer	Diameter host identity
Realm	Diameter realm
IP Address	Transport address (protocol://ip:port)
Status	Connected or Disconnected badge

Clicking a peer row expands to show detailed information:

Detail	Description
Connection Initiation	Whether OmniLCS initiates the connection
Transport	SCTP or TCP
Product Name	Remote peer's Diameter Product-Name
Advertised Applications	Application IDs supported by the peer

CBC 2G

Path: /cbc Refresh: Every 2 seconds

Monitors the CBSP interface for 2G cell broadcast.

Interface Info

Shows the CBSP interface status:

• Protocol reference (3GPP TS 48.049)
• Listening port number
• Number of connected peers
• Green/red indicator

Statistics Cards

Card	Description
Connected BSCs	Number of peers with status :connected
Total Connections	Total peer count (including any non-connected)
Recent Messages	Count of CBSP messages in the recent message buffer

Connected BSCs Panel

List of connected CBSP peers showing:

• Peer IP address and port
• Connection ID
• Connected timestamp
• Connection status badge

Recent CBSP Messages Panel

Table of the 20 most recent CBSP messages:

Column	Description
Time	Message timestamp (HH:MM:SS)
Peer	Connection ID of the source peer
Message	Human-readable message type (e.g., "WRITE REPLACE COMPLETE")
Type	Color-coded badge (OK for complete, FAIL for failure, ERR for error, INFO for others)

Messages are received via PubSub subscriptions to cbsp:connections and cbsp:messages topics.

CBC 3G

Path: /cbc3g Refresh: Every 2 seconds

Monitors the SABP interface for 3G cell broadcast over the Iu-BC interface (3GPP TS 25.419).

Interface Info

Shows the SABP interface status:

• Protocol reference (3GPP TS 25.419)
• Listening port number
• Number of connected RNCs
• Green/red indicator

Statistics Cards

Card	Description
Connected RNCs	Number of RNC peers with status :connected
Total Connections	Total peer count (including any non-connected)
Recent Messages	Count of SABP messages in the recent message buffer

Connected RNCs Panel

List of connected SABP peers showing:

• Peer IP address and port
• Connection ID
• Connected timestamp
• Connection status badge

Recent SABP Messages Panel

Table of the 20 most recent SABP messages:

Column	Description
Time	Message timestamp (HH:MM:SS)
Peer	Connection ID of the source RNC
Message	Human-readable message type (e.g., "WRITE REPLACE COMPLETE", "RESTART INDICATION")
Type	Color-coded badge (OK for complete, FAIL for failure, ERR for error, INFO for others)

Messages are received via PubSub subscriptions to sabp:connections and sabp:messages topics.

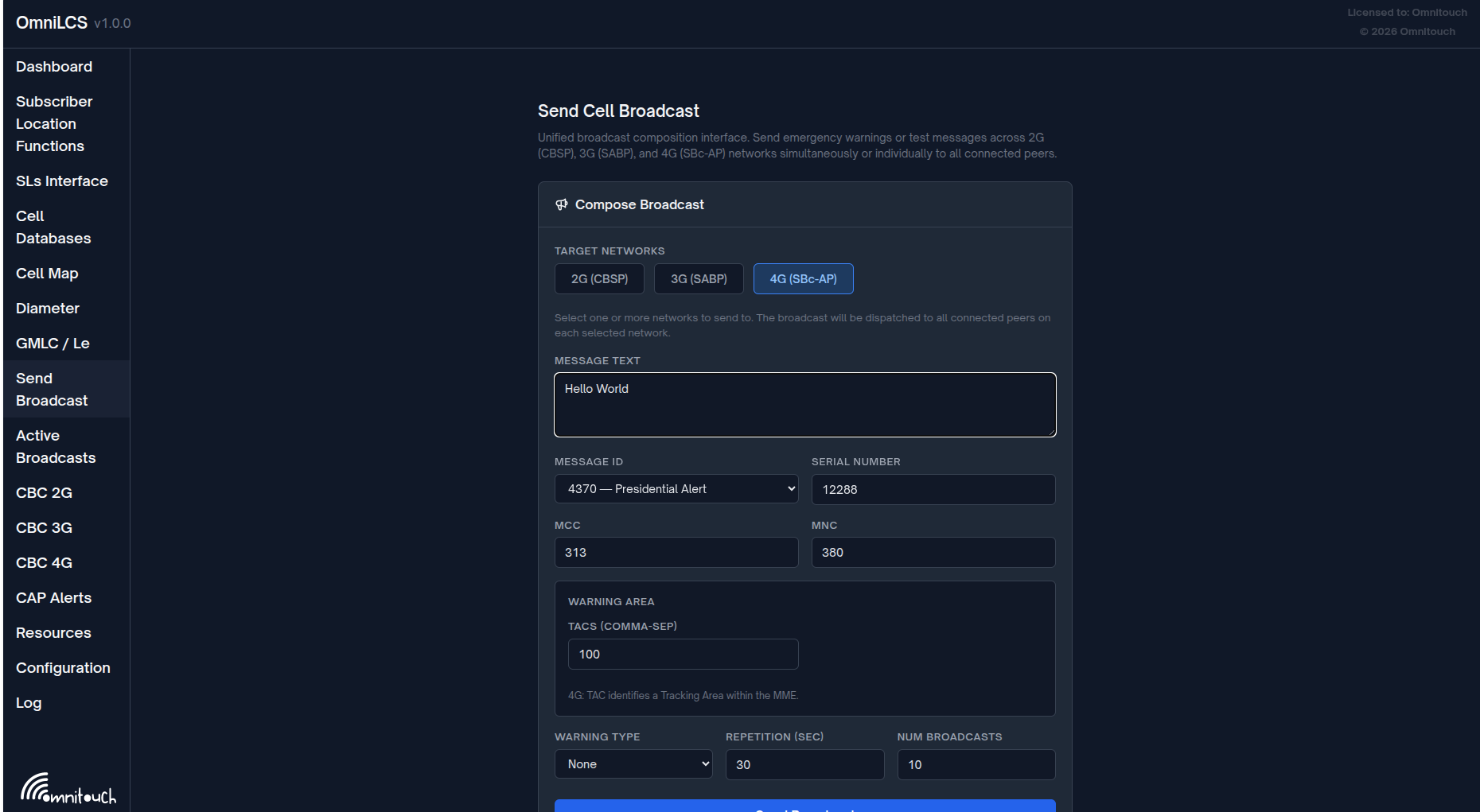

Send Broadcast

Path: /broadcast Refresh: Live

Unified broadcast composition interface for sending emergency warnings or test messages simultaneously across 2G (CBSP), 3G (SABP), and 4G (SBc-AP) networks. Select one or more target networks and the broadcast is dispatched to all connected peers on each selected network.

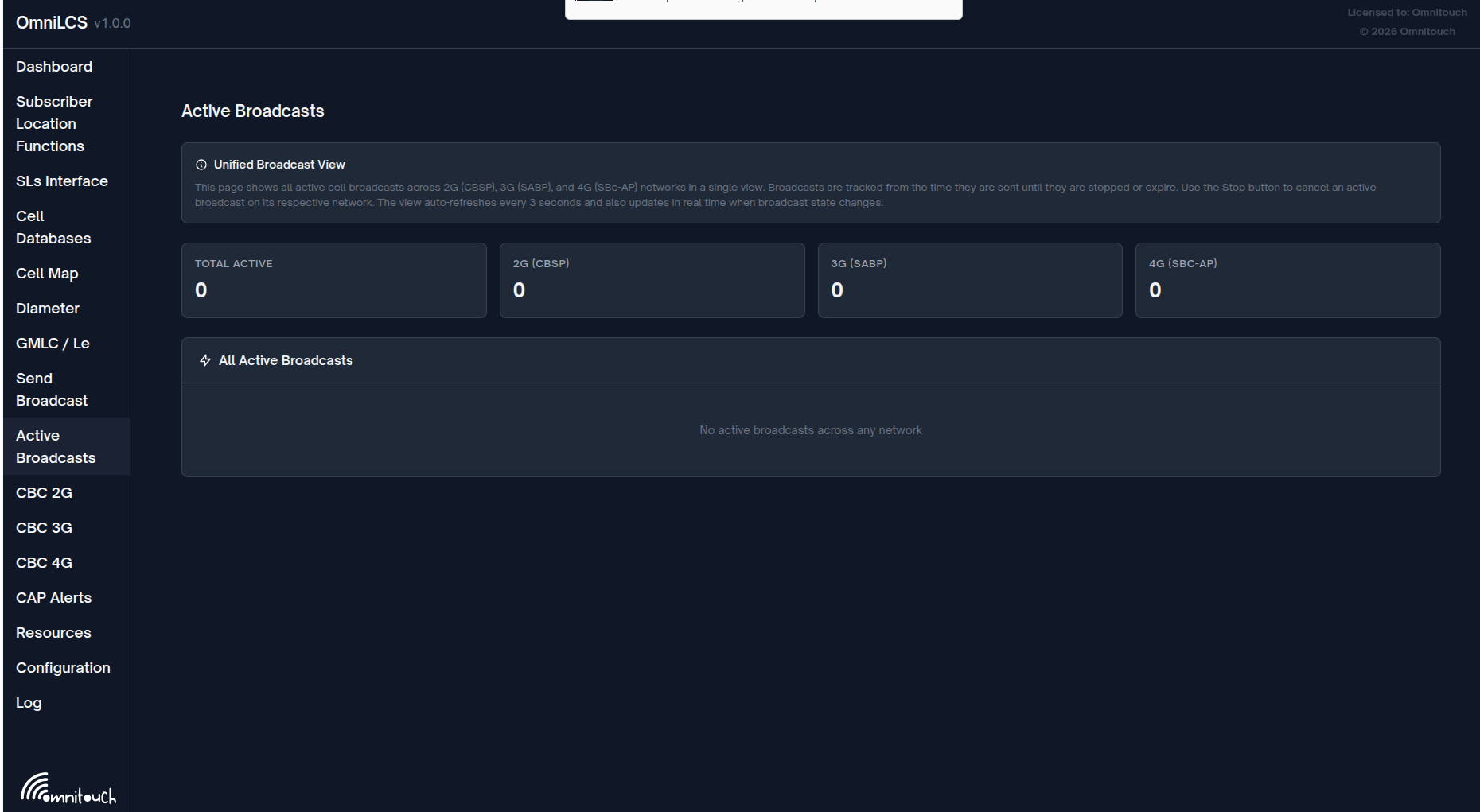

Active Broadcasts

Path: /broadcasts Refresh: Every 3 seconds + real-time PubSub

Unified view of all active cell broadcasts across 2G (CBSP), 3G (SABP), and 4G (SBc-AP) networks in a single page. Broadcasts are tracked from the time they are sent until they are stopped or expire. The view auto-refreshes every 3 seconds and updates in real time when broadcast state changes.

Summary Cards

Card	Description
Total Active	Combined active broadcast count across all networks
2G (CBSP)	Active 2G broadcasts
3G (SABP)	Active 3G broadcasts
4G (SBC-AP)	Active 4G broadcasts

Use the Stop button on any broadcast row to cancel it on its respective network.

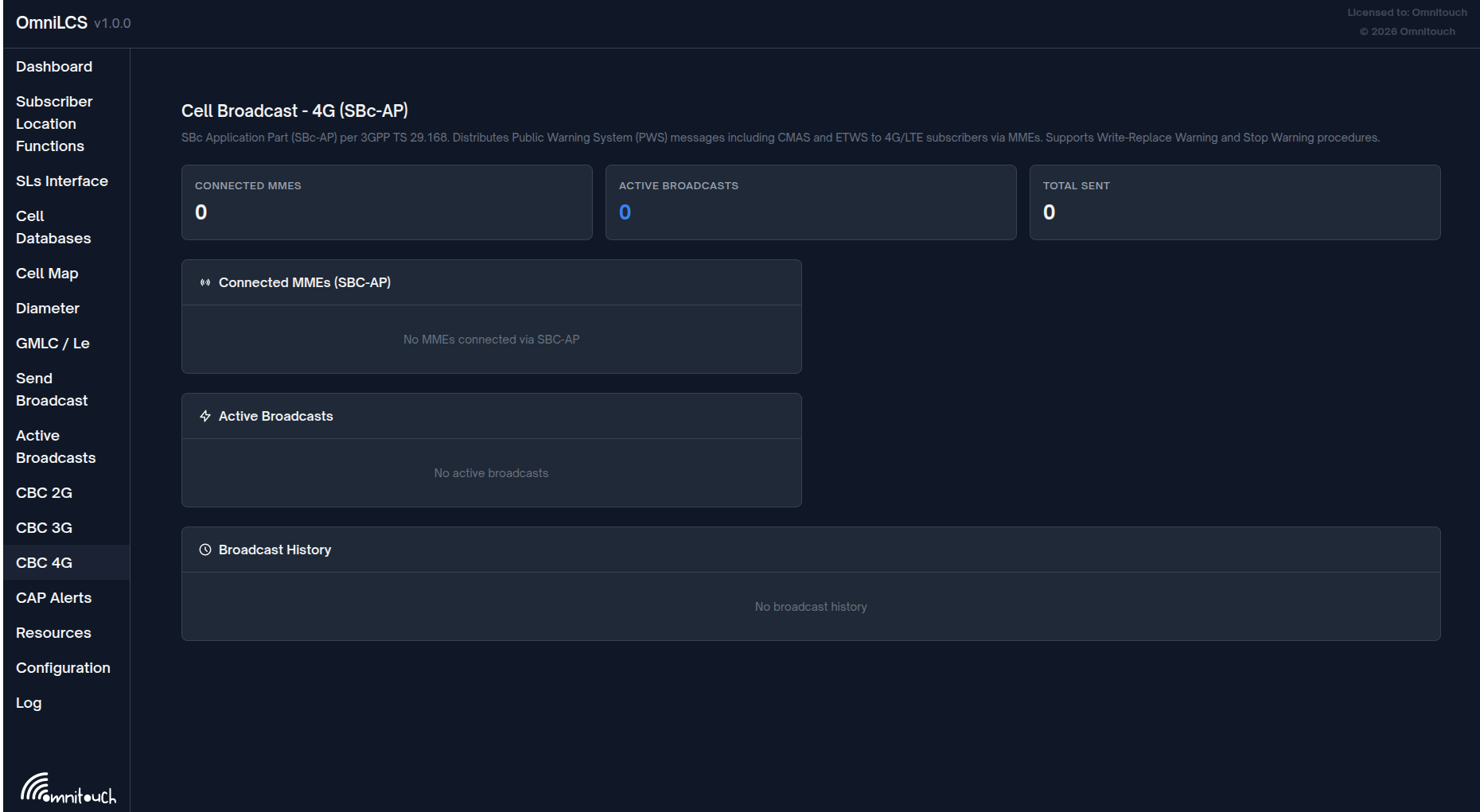

CBC 4G

Path: /cbc4g Refresh: Every 3 seconds

Full-featured 4G cell broadcast management interface for composing, sending, monitoring, and stopping SBC-AP broadcasts.

Statistics Cards

Card	Description
Connected MMEs	Number of established SBC-AP SCTP associations
Active Broadcasts	Number of currently active 4G broadcasts
Total Sent	Total broadcasts in history

Compose Broadcast Form

Field	Description
Message Text	Broadcast message content
Message ID	16-bit CB message identifier (e.g., 4370 for CMAS)
Serial Number	16-bit serial number
MCC	Mobile Country Code (e.g., "313")
MNC	Mobile Network Code (e.g., "380")
TACs	Comma-separated Tracking Area Codes
Warning Type	None, Earthquake, Tsunami, Earthquake + Tsunami, Test, Other
Repetition (sec)	Seconds between broadcast repetitions
Num Broadcasts	Total number of times to broadcast the message

Clicking "Send Broadcast" encodes the message (GSM 7-bit), constructs a Write-Replace-Warning-Request PDU, and sends it to all connected MMEs.

Connected MMEs Panel

List of SBC-AP SCTP associations:

• MME hostname
• IP address, port, and SCTP association ID
• Connection status badge (Connected / state name)

Active Broadcasts Panel

Table of currently active broadcasts:

Column	Description
MSG ID	Message identifier in hex (e.g., 0x1112)
SERIAL	Serial number in hex
MESSAGE	Broadcast text (truncated)
STATUS	Sent, Stopping, Stopped, Acknowledged
ACTION	Stop button (for sent/acknowledged broadcasts)

Clicking "Stop" sends a Stop-Warning-Request for the broadcast.

Broadcast History

Table of all broadcasts (last 100):

Column	Description
MSG ID	Message identifier in hex
SERIAL	Serial number in hex
MESSAGE	Broadcast text (truncated)
TIME	Sent timestamp (HH:MM:SS)
STATUS	Final status badge

State updates are received via PubSub subscriptions to cbc:state and cbc:connections topics.

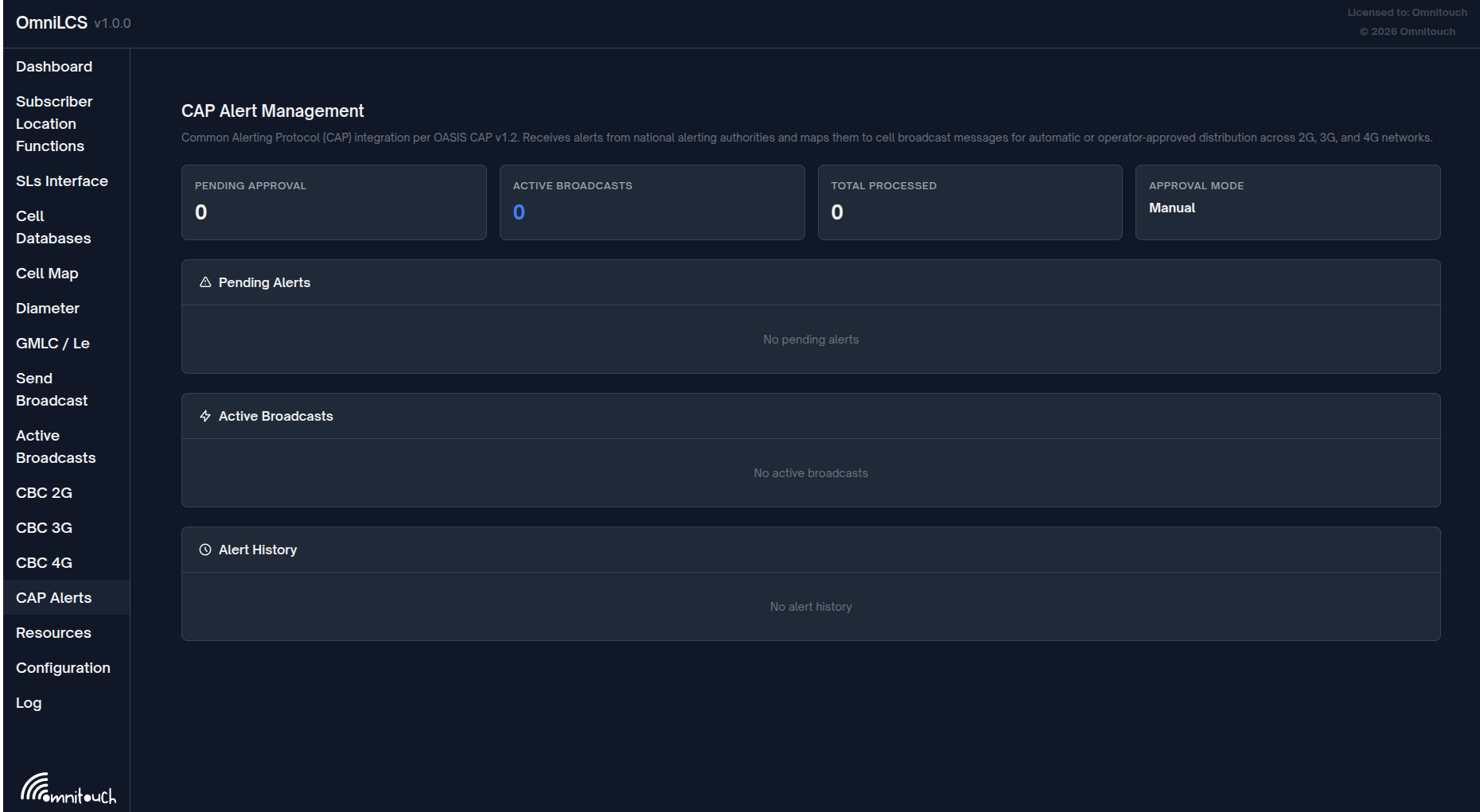

CAP Alerts

Path: /cap Refresh: Every 3 seconds + real-time PubSub

Operator approval workflow for CAP (Common Alerting Protocol) alerts received from external alerting authorities. See the CAP Alert Operations Guide for full details on configuration, feed polling, and polygon resolution.

Statistics Cards

Card	Description
Pending Approval	Number of alerts awaiting operator action (amber highlight when > 0)
Active Broadcasts	Number of currently broadcasting alerts
Total Processed	Total alerts in history
Approval Mode	Current setting: "Manual" (require_approval: true) or "Auto"

Pending Alerts Panel

Only visible when require_approval is true in the CAP configuration.

Column	Description
TIME	When the alert was received
EVENT	Alert event type (e.g., "Tornado Warning")
SEVERITY	Alert severity (Extreme, Severe, Moderate, Minor)
CELLS	Number of cells matched by polygon resolution
STATUS	Pending badge (amber)
ACTIONS	Preview, Approve, Reject buttons

Preview expands to show the full alert description, source, matched TACs/LACs, message ID, and PLMN.

Approve triggers immediate broadcast via SBC-AP (4G), SABP (3G), and CBSP (2G).

Reject moves the alert to history as rejected.

Active Broadcasts Panel

Column	Description
EVENT	Alert event type
MSG ID	CB message identifier
TACs	Targeted Tracking Area Codes
STARTED	Broadcast start time
STATUS	Broadcasting (blue) or Sent (green)

Alert History Panel

Column	Description
TIME	Sent or received timestamp
EVENT	Alert event type
SEVERITY	Alert severity
CELLS	Matched cell count
TACs/LACs	Targeted area codes
STATUS	Sent (green), Rejected (red), or Failed (red)

A toast notification appears when a new pending alert is received.

GMLC / Le Interface

Path: /gmlc Refresh: Every 3 seconds + real-time PubSub

Monitoring and management for the GMLC Le interface and deferred location sessions. See the GMLC & Le Interface Operations Guide for full configuration and Diameter protocol details.

Statistics Cards

Card	Description
Active Sessions	Total active deferred location sessions
Periodic	Number of active periodic location sessions
Geo-fence	Number of active triggered/geo-fence sessions

Authorized LCS Clients Panel

Column	Description
NAME	Client identity (matched against Diameter AVPs)
TYPE	LCS client type (emergency_services, value_added_services, etc.)
ALLOWED METHODS	Positioning methods this client may request
RATE LIMIT	Requests per minute (or "Unlimited")

Active Deferred Sessions Panel

Column	Description
SESSION ID	Truncated session UUID
TYPE	Session type badge: periodic (green) or triggered (purple)
IMSI	Subscriber IMSI
METHOD	Positioning method
CLIENT	Name of the requesting LCS client
PROGRESS	Periodic: completed/total reports. Triggered: remaining reports or "Active (unlimited)"
LAST FIX	Time of the most recent position fix
ACTIONS	Cancel button to terminate the session

Session History Panel

Shows the 50 most recent completed or cancelled sessions with session ID, type, IMSI, status (completed/cancelled), and start time.

Built-in Pages

These pages are provided by the Control Panel framework.

Application (/application)

OTP application resource viewer showing:

• Running applications and their process trees
• Memory usage per process
• Message queue lengths

Configuration (/configuration)

Runtime configuration viewer displaying:

• All Application environment variables
• Grouped by application

Log (/log)

Real-time log viewer showing:

• Log messages from the ControlPanel.Logger backend
• Filterable by log level
• Auto-scrolling with pause capability
