Config

The Application Server needs:

To connect to SIP Trunks / SBCs for calls to/from off-net
Connect to the DRA or HSS to get the Sh
Optionally connect to DRA or OCS for Ro online charging
Dialplan Config
Configuration around the dialing rules / number translation
Voicemail config
Prompts
Tests
Metrics (Prometheus)

Event Socket Configuration

The Event Socket is used for call control, monitoring active calls, and interacting with the telephony engine. This connection allows the TAS to control call routing, retrieve channel variables, and manage active sessions.

Configuration Location: config/runtime.exs

config :tas,
  fs_event_socket: %{
    host: "127.0.0.1",
    port: 8021,
    secret: "YourSecretPassword"
  }

Configuration Parameters:

host (string, required): Hostname or IP address of the Event Socket server
- Default: "127.0.0.1" (localhost)
- Use localhost if the telephony engine runs on the same server as TAS
- Use remote IP for distributed deployments
- Example: "10.8.82.60" for remote connection
port (integer, required): TCP port for Event Socket connections
- Default: 8021
- Standard Event Socket port is 8021
- Must match the Event Socket configuration in your telephony engine
- Example: 8021
secret (string, required): Authentication password for Event Socket
- Must match the password configured in your telephony engine
- Used for authenticating ESL connections
- Security Note: Use a strong random password and keep it secure
- Example: "cd463RZ8qMk9AHMMDGT3V"

Use Cases:

Real-time call control and routing
Retrieving active call information for the /calls view in Control Panel
Executing dialplan applications programmatically
Monitoring call state changes and events
Managing conference calls

Connection Behavior:

TAS establishes persistent connections to the Event Socket
Automatically reconnects on connection failure
Used for both inbound (receiving events) and outbound (controlling calls) modes
Connection timeouts and retry logic are built-in

Security Considerations:

Always use a strong, unique password for the secret parameter
If using remote connections, ensure firewall rules allow only trusted TAS servers
Consider using localhost-only connections when TAS and telephony engine are co-located
Do not expose Event Socket port to public networks

Troubleshooting:

Connection Refused: Verify the telephony engine is running and Event Socket is enabled
Authentication Failed: Check that secret matches the telephony engine configuration
Timeout Errors: Verify network connectivity and firewall rules
Cannot Control Calls: Ensure TAS has connected successfully (check logs)

Control Panel Configuration

The Control Panel provides a web-based interface for monitoring and managing the TAS system. This includes viewing subscribers, CDRs, active calls, Diameter peers, gateways, and system configuration.

Configuration Location: config/runtime.exs

config :control_panel,
  page_order: ["/application", "/configuration"]

config :control_panel, ControlPanelWeb.Endpoint,
  url: [host: "0.0.0.0", path: "/"],
  https: [
    port: 443,
    keyfile: "priv/cert/server.key",
    certfile: "priv/cert/server.crt"
  ]

Configuration Parameters:

Page Order Configuration

page_order (list of strings): Controls the display order of configuration pages in the Control Panel
- Specifies which pages appear in navigation and their order
- Example: ["/application", "/configuration"]
- Default: If not set, pages appear in default alphabetical order

Web Endpoint Configuration

url (map): Public URL configuration for the Control Panel
- host: Hostname for generating URLs (e.g., "tas.example.com" or "0.0.0.0")
- path: Base path for all Control Panel routes (default: "/")
- Used for generating absolute URLs in redirects and links
https (map): HTTPS/TLS configuration for secure access
- port (integer): HTTPS port number (standard is 443)
- keyfile (string): Path to TLS private key file (PEM format)
- certfile (string): Path to TLS certificate file (PEM format)
- Both files must be readable by the TAS application

Certificate Management:

The Control Panel requires valid TLS certificates for HTTPS access:

Self-Signed Certificates (Development/Testing):

openssl req -x509 -newkey rsa:4096 -keyout priv/cert/server.key \
  -out priv/cert/server.crt -days 365 -nodes

Production Certificates:
- Use certificates from a trusted Certificate Authority (CA)
- Common providers: Let's Encrypt (free), commercial CAs
- Ensure certificates include full chain for browser trust
- Keep private keys secure with appropriate file permissions (chmod 600)

Access Control:

The Control Panel provides access to sensitive operational data:

Subscriber Information: Registration details, call history, locations
Call Detail Records: Complete call records with MSISDN data
System Configuration: Diameter peers, gateways, routing
Active Calls: Real-time monitoring of ongoing sessions

Recommended Security Measures:

Deploy behind firewall or VPN for production environments
Use strong TLS certificates from trusted CAs
Implement network-level access controls (IP whitelisting)
Consider additional authentication layers if exposing externally
Regularly audit access logs
Use HTTPS only - never serve over plain HTTP

Common Deployment Patterns:

Internal-Only Access:

url: [host: "10.8.82.60", path: "/"]  # Internal network only

External Access with Domain:

url: [host: "tas.operator.com", path: "/"]
https: [port: 443, ...]

Behind Reverse Proxy:

url: [host: "tas.internal", path: "/panel"]  # Nginx/Apache forwards to this

Troubleshooting:

Certificate Errors: Verify paths to keyfile and certfile are correct and files are readable
Port Already in Use: Check if another service is using port 443, or change to another port
Cannot Access UI: Verify firewall rules allow access to the configured HTTPS port
SSL Handshake Failures: Ensure certificate and key match and are in PEM format

API Configuration

The TAS includes a REST API for programmatic access to system functions, subscriber management, and operational data. The API supports OpenAPI/Swagger documentation and is secured with TLS.

Configuration Location: config/runtime.exs

config :api_ex,
  api: %{
    port: 8444,
    listen_ip: "0.0.0.0",
    product_name: "OmniTAS",
    title: "API - OmniTAS",
    hostname: "localhost",
    enable_tls: true,
    tls_cert_path: "priv/cert/server.crt",
    tls_key_path: "priv/cert/server.key"
  }

Configuration Parameters:

port (integer, required): TCP port for the API server
- Default: 8444
- Choose a port that doesn't conflict with other services
- Standard HTTPS port is 443, but custom ports are common for APIs
- Example: 8444, 8443, 9443
listen_ip (string, required): IP address to bind the API server
- "0.0.0.0": Listen on all network interfaces (external access)
- "127.0.0.1": Listen only on localhost (internal access only)
- Specific IP: Bind to a particular interface (e.g., "10.8.82.60")
- Security: Use "127.0.0.1" if API only needed internally
product_name (string): Product identifier for API metadata
- Used in API responses and documentation
- Example: "OmniTAS", "MyOperator-IMS"
title (string): Human-readable title for API documentation
- Displayed in OpenAPI/Swagger UI header
- Example: "API - OmniTAS", "IMS Application Server API"
hostname (string): Hostname for API server in documentation
- Used in OpenAPI spec for generating example URLs
- Should match how clients access the API
- Examples: "localhost", "api.operator.com", "10.8.82.60"
enable_tls (boolean): Enable or disable TLS/HTTPS for API
- true: Serve API over HTTPS (recommended for production)
- false: Serve API over HTTP (only for testing/development)
- Security: Always use true in production environments
tls_cert_path (string): Path to TLS certificate file (PEM format)
- Required when enable_tls: true
- Must be readable by the TAS application
- Example: "priv/cert/server.crt"
tls_key_path (string): Path to TLS private key file (PEM format)
- Required when enable_tls: true
- Must be readable by the TAS application
- Security: Protect with file permissions (chmod 600)
- Example: "priv/cert/server.key"

API Features:

The REST API provides programmatic access to:

Subscriber management and provisioning
Call Detail Records (CDR) queries
System status and health checks
Diameter peer status
Gateway status and statistics
Active call monitoring
Configuration management

OpenAPI/Swagger Documentation:

The API includes built-in OpenAPI (Swagger) documentation:

Access Swagger UI at: https://hostname:port/api/swaggerui
OpenAPI JSON spec at: https://hostname:port/api/openapi
Interactive API testing directly from the browser
Complete endpoint documentation with request/response schemas

Security Considerations:

Authentication: Implement API authentication based on your security requirements
Network Access: Use firewall rules to restrict API access to authorized clients
TLS Required: Always enable TLS in production (enable_tls: true)
Certificate Validation: Use trusted certificates for production APIs
Rate Limiting: Consider implementing rate limiting for public-facing APIs
Access Logs: Monitor API access logs for suspicious activity

Example Usage:

# Query API with curl (replace with actual endpoint)
curl -k https://localhost:8444/api/health

# Access Swagger documentation
https://localhost:8444/api/swaggerui

Common Deployment Scenarios:

Internal API Only:

listen_ip: "127.0.0.1"  # Only accessible from localhost
enable_tls: false       # HTTP for internal testing

Production API with TLS:

listen_ip: "0.0.0.0"    # Accessible from network
enable_tls: true        # HTTPS required
hostname: "api.operator.com"

Development/Testing:

listen_ip: "0.0.0.0"
enable_tls: false       # HTTP for easier testing
port: 8080              # Non-privileged port

Troubleshooting:

Port Binding Failed: Verify port is not in use by another service, or run as root for ports < 1024
TLS Errors: Check that certificate and key paths are correct and files are readable
Cannot Connect: Verify firewall allows access to the configured port
Certificate Mismatch: Ensure hostname matches the certificate Common Name (CN) or SAN
API Returns 404: Check that the API application started successfully in logs

SIP Trunk Config

Ansible is responsible for creating the XML config for each outgoing gateway, visible in the Gateways tab, which are used for outgoing calls.

CSCF addresses and Gateway addresses have to be included in the that are visible in the runtime config, so we know what IPs to allow calls from, we do this in the allowed_sbc_source_ips for Gateways / SBCs (sources that will send MT traffic towards the network) and allowed_cscf_ips for CSCFs (sources that MO traffic will originate from).

Note - If you will route calls from your TAS to itself (ie a MO call to an on-net subscriber routes back into the MT dialplan) then your TAS IP must also be in the allowed source IPs list.

config :tas,
  allowed_sbc_source_ips: ["10.5.198.200", "103.26.174.36"],
  allowed_cscf_ips: ["10.8.3.34"],

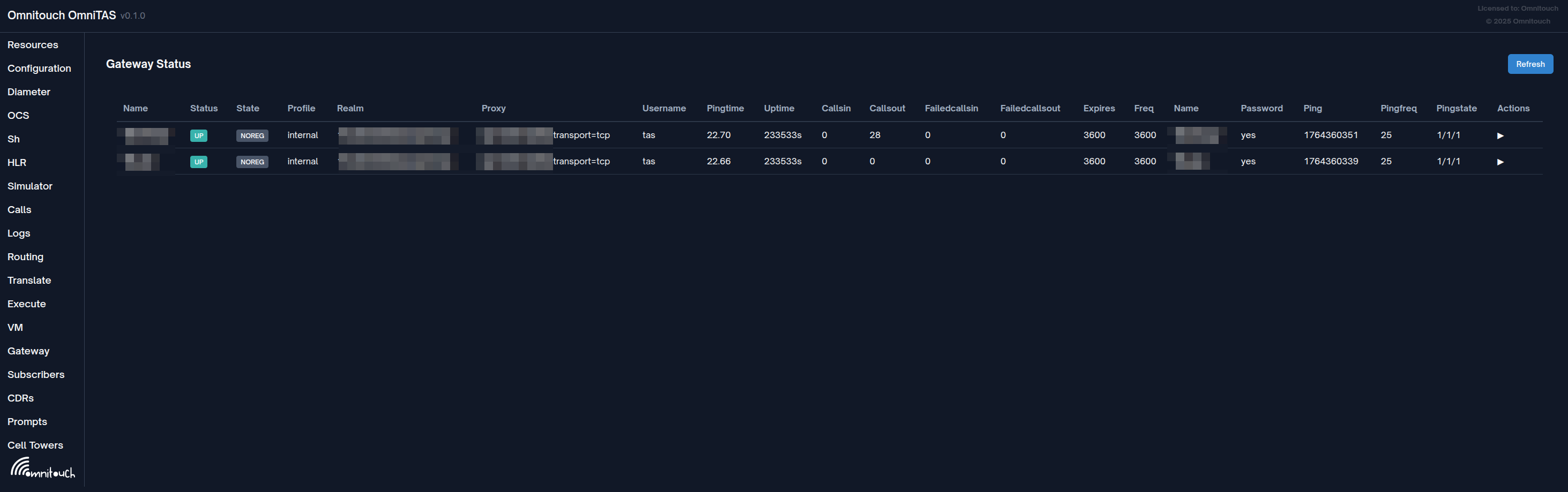

From the Web UI we can see the state of each gateway, and:

SIP Registration status (if register is enabled)
SIP Realm
SIP Proxy Address (if used)
Username
Ping Time (Average SIP OPTIONs response time (if SIP OPTIONs enabled))
Uptime (Seconds since the profile was restarted or came up)
Calls in / Calls Out / Failed Calls In / Failed Calls Out
Last SIP OPTIONs ping time (Epoch)
SIP OPTIONs ping frequency
More info in the detail button

Gateway Configuration Reference

Gateways are configured in XML format. Each gateway represents a SIP trunk connection to an external SBC, carrier, or PSTN gateway.

Basic Gateway Example:

<include>
  <gateway name="carrier_trunk">
    <param name="proxy" value="203.0.113.50;transport=tcp"/>
    <param name="register" value="true"/>
    <param name="caller-id-in-from" value="true"/>
    <param name="username" value="trunk_user"/>
    <param name="password" value="secure_password"/>
    <param name="register-transport" value="tcp"/>
    <param name="retry-seconds" value="30"/>
    <param name="ping" value="25"/>
  </gateway>
</include>

Gateway without Registration:

<include>
  <gateway name="sbc_static">
    <param name="proxy" value="198.51.100.10"/>
    <param name="register" value="false"/>
    <param name="caller-id-in-from" value="true"/>
  </gateway>
</include>

Gateway Parameters

Required Parameters

name (gateway attribute)

The unique name identifier for this gateway
Used in dialplan to reference the gateway: sofia/gateway/name/destination
Example: <gateway name="my_trunk">

proxy

SIP proxy/gateway IP address or hostname
Can include port and transport protocol
Examples:
- value="203.0.113.50" (default port 5060, UDP)
- value="203.0.113.50:5061" (custom port)
- value="203.0.113.50;transport=tcp" (TCP transport)
- value="203.0.113.50:5061;transport=tls" (TLS on port 5061)

register

Whether to send SIP REGISTER to the gateway
Values: true | false
Set to true if the trunk requires registration
Set to false for static IP-based trunks

Authentication Parameters

username

SIP authentication username
Used in REGISTER and for digest authentication
Required if register="true"
Example: value="trunk_account_123"

password

SIP authentication password
Used for digest authentication challenges
Required if register="true"
Example: value="MySecureP@ssw0rd"

realm

SIP realm for authentication
Optional - usually auto-detected from challenge
Example: value="sip.carrier.com"

auth-username

Alternative username for authentication (if different from username)
Rarely needed - only if carrier requires different user in auth vs From header
Example: value="auth_user_456"

Registration Parameters

register-transport

Transport protocol for REGISTER messages
Values: udp | tcp | tls
Must match transport specified in proxy parameter
Example: value="tcp"

register-proxy

Alternative proxy address for REGISTER (if different from call routing)
Useful when registration server differs from call routing server
Example: value="register.carrier.com:5060"

retry-seconds

Seconds to wait before retrying failed registration
Default: 30
Range: 5 to 3600
Example: value="30"

expire-seconds

Registration expiry time in seconds
Default: 3600 (1 hour)
The gateway will re-register before expiry
Example: value="1800" (30 minutes)

caller-id-in-from

Include caller ID in SIP From header
Values: true | false
true: From header includes actual caller number (required by most carriers)
false: From header uses gateway username
Recommendation: Set to true for most deployments
Example: value="true"

Monitoring Parameters

ping

Send SIP OPTIONS ping every N seconds
Monitors gateway availability and measures latency
Disabled if not specified or set to 0
Typical values: 15 to 60 seconds
Visible in Gateway Status UI as "Ping Time"
Example: value="25"

ping-max

Maximum time (seconds) to retry pings before marking gateway down
Default: Calculated from ping interval
Example: value="3"

Call Routing Parameters

extension

Fixed destination number to always dial on this gateway
Rarely used - usually destination comes from dialplan
Example: value="+12125551234"

extension-in-contact

Include extension in Contact header
Values: true | false
Default: false
Example: value="false"

contact-params

Additional parameters to append to Contact header
Useful for carrier-specific requirements
Example: value="line=1;isup=true"

Advanced Parameters

from-user

Override username in From header
Default: Uses calling number or gateway username
Example: value="trunk_pilot"

from-domain

Override domain in From header
Default: Uses proxy domain
Example: value="my-domain.com"

outbound-proxy

Outbound proxy for all SIP messages
Different from proxy - used as Route header target
Example: value="edge-proxy.carrier.com:5060"

context

Dialplan context for incoming calls from this gateway
Default: public
Allows different incoming call routing per gateway
Example: value="from-carrier"

channels

Maximum concurrent calls on this gateway
Default: Unlimited
Used for capacity management
Example: value="100"

dtmf-type

DTMF transmission method
Values: rfc2833 | info | inband | auto
Default: rfc2833 (recommended)
rfc2833: RTP telephone events (most common)
info: SIP INFO messages
inband: Audio tones
Example: value="rfc2833"

codec-prefs

Preferred codec list for this gateway
Comma-separated list in preference order
Example: value="PCMU,PCMA,G729"
Common codecs: PCMU, PCMA, G729, AMR, AMR-WB, G722, OPUS

rtp-timeout-sec

Hangup call if no RTP received for N seconds
Default: 0 (disabled)
Useful for detecting dead calls
Example: value="120"

rtp-hold-timeout-sec

Timeout for calls on hold with no RTP
Default: 0 (disabled)
Example: value="1800" (30 minutes)

SIP Signaling Options

sip-port

Local SIP port to use for this gateway
Default: Profile's port
Rarely needed
Example: value="5060"

rtp-ip

Local IP address for RTP media
Default: Profile's RTP IP
Example: value="10.0.0.5"

register-proxy-port

Port for registration proxy
Only needed if different from proxy port
Example: value="5061"

contact-host

Override host portion of Contact header
Useful for NAT scenarios
Example: value="public-ip.example.com"

distinct-to

Use distinct To header (different from Request-URI)
Values: true | false
Carrier-specific requirement
Example: value="false"

cid-type

Caller ID type in Remote-Party-ID or P-Asserted-Identity headers
Values: rpid | pid | none
rpid: Remote-Party-ID header
pid: P-Asserted-Identity header
Example: value="pid"

extension-in-contact

Add extension parameter to Contact URI
Values: true | false
Example: value="true"

Transport Security

transport (in proxy parameter)

Transport protocol
Values: udp | tcp | tls | ws | wss
Specified as part of proxy value
Example: proxy="203.0.113.50;transport=tcp"

For TLS connections, additional certificate configuration may be required in the SIP profile.

Complete Example with Common Options

<include>
  <gateway name="primary_carrier">
    <!-- Required: Basic connection -->
    <param name="proxy" value="sbc.carrier.com:5060;transport=tcp"/>
    <param name="register" value="true"/>

    <!-- Authentication -->
    <param name="username" value="customer_trunk_01"/>
    <param name="password" value="SecurePassword123"/>

    <!-- Registration -->
    <param name="register-transport" value="tcp"/>
    <param name="expire-seconds" value="1800"/>
    <param name="retry-seconds" value="30"/>

    <!-- Caller ID -->
    <param name="caller-id-in-from" value="true"/>

    <!-- Monitoring -->
    <param name="ping" value="30"/>

    <!-- Media -->
    <param name="codec-prefs" value="PCMU,PCMA,G729"/>
    <param name="dtmf-type" value="rfc2833"/>

    <!-- Call limits -->
    <param name="channels" value="100"/>

    <!-- RTP timeouts -->
    <param name="rtp-timeout-sec" value="300"/>
  </gateway>
</include>

Gateway Usage in Dialplan

Reference gateways in your dialplan using the sofia/gateway/name/destination format:

<!-- Route to specific gateway -->
<action application="bridge" data="sofia/gateway/primary_carrier/+12125551234"/>

<!-- Route using variable -->
<action application="bridge" data="sofia/gateway/primary_carrier/${tas_destination_number}"/>

<!-- Route with custom SIP headers -->
<action application="bridge" data="{sip_h_X-Custom=Value}sofia/gateway/primary_carrier/${tas_destination_number}"/>

<!-- Failover between gateways -->
<action application="bridge" data="sofia/gateway/primary_carrier/${tas_destination_number}|sofia/gateway/backup_carrier/${tas_destination_number}"/>

Troubleshooting Gateway Issues

Gateway Won't Register:

Verify username and password are correct
Check proxy address is reachable
Confirm register-transport matches carrier requirements
Review logs for authentication failures

Calls Fail:

Check gateway status in Web UI (/gw)
Verify caller-id-in-from setting matches carrier requirement
Confirm codec compatibility with codec-prefs
Check firewall allows SIP and RTP traffic

Poor Call Quality:

Review ping times in Gateway Status
Check rtp-timeout-sec isn't too aggressive
Verify codec preferences match network capabilities
Monitor network latency and packet loss

Diameter Peer Config

Dimeter peers must be defined in the runtime config.

This config is largely boilerplate.

The Ro interface does not need to be included in the Applications if Ro is not used in your deployment.

config :diameter_ex,
  diameter: %{
    service_name: :omnitouch_tas,
    listen_ip: "10.8.82.60",
    listen_port: 3868,
    decode_format: :map,
    host: "example-dc01-as01",
    realm: "epc.mnc001.mcc001.3gppnetwork.org",
    product_name: "OmniTAS",
    request_timeout: 5000,
    peer_selection_algorithm: :random,
    allow_undefined_peers_to_connect: true,
    log_unauthorized_peer_connection_attempts: true,
    control_module: Tas.Control.Diameter,
    processor_module: DiameterEx.Processor,
    auth_application_ids: [],
    acct_application_ids: [],
    vendor_id: 10415,
    supported_vendor_ids: [10415],
    applications: [
      %{
        application_name: :sh,
        application_dictionary: :diameter_gen_3gpp_sh,
        vendor_specific_application_ids: [
          %{
            vendor_id: 10415,
            auth_application_id: 16_777_217,
            acct_application_id: nil
          }
        ]
      },
      %{
        application_name: :ro,
        application_dictionary: :diameter_gen_3gpp_ro,
        vendor_specific_application_ids: [
          %{
            vendor_id: 0,
            auth_application_id: 4,
            acct_application_id: nil
          }
        ]
      }
    ],
    peers: [
      %{
        port: 3868,
        host: "example-dc01-dra01.epc.mnc001.mcc001.3gppnetwork.org",
        ip: "1.2.3.4",
        realm: "epc.mnc001.mcc001.3gppnetwork.org",
        tls: false,
        transport: :diameter_tcp,
        initiate_connection: true
      },
      %{
        port: 3869,
        host: "example-dc01-dra02.epc.mnc001.mcc001.3gppnetwork.org",
        ip: "1.2.3.44",
        realm: "epc.mnc001.mcc001.3gppnetwork.org",
        tls: false,
        transport: :diameter_tcp,
        initiate_connection: true
      }
    ]
  }

You can check the status of Diameter peers from the Diameter tab on the Web UI.

You can also test retriving Sh data from the Sh tab on the Web UI to try to fetch any of the data from Sh.

Related Documentation​

Core Configuration​

Integration Interfaces​

Call Processing​

Value-Added Services​

Testing & Compliance​

Config​

Event Socket Configuration​

Control Panel Configuration​

Page Order Configuration​

Web Endpoint Configuration​

API Configuration​

SIP Trunk Config​

Gateway Configuration Reference​

Gateway Parameters​

Required Parameters​

Authentication Parameters​

Registration Parameters​

Monitoring Parameters​

Call Routing Parameters​

Advanced Parameters​

SIP Signaling Options​

Transport Security​

Complete Example with Common Options​

Gateway Usage in Dialplan​

Troubleshooting Gateway Issues​

Diameter Peer Config​

Related Documentation

Core Configuration

Integration Interfaces

Call Processing

Value-Added Services

Testing & Compliance

Config

Event Socket Configuration

Control Panel Configuration

Page Order Configuration

Web Endpoint Configuration

API Configuration

SIP Trunk Config

Gateway Configuration Reference

Gateway Parameters

Required Parameters

Authentication Parameters

Registration Parameters

Monitoring Parameters

Call Routing Parameters

Advanced Parameters

SIP Signaling Options

Transport Security

Complete Example with Common Options

Gateway Usage in Dialplan

Troubleshooting Gateway Issues

Diameter Peer Config
