I-CSCF Operations Guide

Table of Contents​

  1. Overview
  2. Role in IMS Architecture
  3. I-CSCF Functions
  4. Web UI Operations
  5. Call Flows
  6. Troubleshooting

Overview​

The I-CSCF (Interrogating Call Session Control Function) serves as the entry point to an IMS operator's network from external networks and from the P-CSCF. Its primary responsibility is to query the HSS (Home Subscriber Server) to discover the appropriate S-CSCF for a user and to hide the internal network topology from external entities.

3GPP Specifications​

  • 3GPP TS 23.228: IP Multimedia Subsystem (IMS) Stage 2
  • 3GPP TS 24.229: IMS Call Control Protocol
  • 3GPP TS 29.228: Cx Interface (I-CSCF to HSS)
  • 3GPP TS 29.229: Cx Protocol

Key Responsibilities​

  1. HSS Interrogation: Queries HSS for user location and S-CSCF assignment
  2. S-CSCF Selection: Chooses appropriate S-CSCF based on capabilities
  3. Topology Hiding: Shields internal S-CSCF addresses from external view
  4. Load Balancing: Distributes load across multiple S-CSCF instances
  5. Routing Proxy: Routes requests to the selected S-CSCF
  6. Network Entry Point: First hop for external SIP messages

Key Characteristics​

  • Stateless Operation: Minimal state retention
  • Diameter Client: Cx interface to HSS
  • No Media Handling: Pure signaling proxy
  • No Authentication: Delegates to S-CSCF
  • High Throughput: Optimized for query-and-forward

Role in IMS Architecture​

Network Position​

3GPP Reference Points​

InterfaceProtocolPurposeConnected To
MwSIPP-CSCF/External to I-CSCFP-CSCF, External IMS
MwSIPI-CSCF to S-CSCFS-CSCF
CxDiameterUser data queriesHSS

I-CSCF Functions​

1. HSS Interrogation (Cx Interface)​

The I-CSCF uses the Diameter Cx interface to query the HSS for two primary operations:

User Authorization Request (UAR)​

Used during REGISTER to determine which S-CSCF should serve the user.

Purpose:

  • Check if user is allowed to register
  • Get S-CSCF name if already assigned
  • Get S-CSCF capabilities if not assigned

Diameter Command:

UAR (User-Authorization-Request)
  Session-Id
  Vendor-Specific-Application-Id
    Vendor-Id: 10415 (3GPP)
    Auth-Application-Id: 16777216 (Cx)
  Auth-Session-State: NO_STATE_MAINTAINED
  Origin-Host: icscf.ims.mnc001.mcc001.3gppnetwork.org
  Origin-Realm: ims.mnc001.mcc001.3gppnetwork.org
  Destination-Realm: ims.mnc001.mcc001.3gppnetwork.org
  User-Name: sip:user@ims.mnc001.mcc001.3gppnetwork.org
  Public-Identity: sip:user@ims.mnc001.mcc001.3gppnetwork.org
  Visited-Network-Identifier: ims.mnc001.mcc001.3gppnetwork.org
  UAR-Flags: 0

HSS Response (UAA):

UAA (User-Authorization-Answer)
  Result-Code: 2001 (DIAMETER_SUCCESS)
  Experimental-Result-Code: 2001 (FIRST_REGISTRATION)
  Server-Name: sip:scscf.ims.mnc001.mcc001.3gppnetwork.org
  Server-Capabilities:
    Mandatory-Capability: 1
    Optional-Capability: 2
    Server-Name: sip:scscf-backup.ims.mnc001.mcc001.3gppnetwork.org

Result Codes:

  • 2001: Success (user authorized)
  • 5003: User Unknown
  • 5004: Identities Don't Match
  • 5042: No S-CSCF Available

Location Information Request (LIR)​

Used for INVITE and other requests to find which S-CSCF is currently serving the user.

Purpose:

  • Find the S-CSCF serving a registered user
  • Route terminating calls correctly

Diameter Command:

LIR (Location-Info-Request)
  Session-Id
  Vendor-Specific-Application-Id
    Vendor-Id: 10415 (3GPP)
    Auth-Application-Id: 16777216 (Cx)
  Auth-Session-State: NO_STATE_MAINTAINED
  Origin-Host: icscf.ims.mnc001.mcc001.3gppnetwork.org
  Origin-Realm: ims.mnc001.mcc001.3gppnetwork.org
  Destination-Realm: ims.mnc001.mcc001.3gppnetwork.org
  Public-Identity: sip:user@ims.mnc001.mcc001.3gppnetwork.org
  Originating-Request: 0  # 0=terminating, 1=originating

HSS Response (LIA):

LIA (Location-Info-Answer)
  Result-Code: 2001 (DIAMETER_SUCCESS)
  Server-Name: sip:scscf.ims.mnc001.mcc001.3gppnetwork.org

Result Codes:

  • 2001: Success (user registered, S-CSCF returned)
  • 5401: User Not Registered
  • 5003: User Unknown

2. S-CSCF Selection​

When the HSS doesn't return a specific S-CSCF (e.g., first registration), the I-CSCF must select one based on capabilities matching.

Capability Matching Algorithm​

  1. Retrieve capabilities from HSS UAA
  2. Query local database for available S-CSCFs
  3. Match mandatory capabilities (all must match)
  4. Match optional capabilities (best effort)
  5. Apply load balancing if multiple matches
  6. Select S-CSCF with best fit

S-CSCF Database Structure​

The I-CSCF maintains a database with two related tables:

S-CSCF Table: Stores information about available S-CSCF servers:

  • ID: Unique identifier for each S-CSCF
  • Name: Descriptive name (e.g., "Primary S-CSCF")
  • S-CSCF URI: SIP URI of the S-CSCF (e.g., sip:scscf.ims.mnc001.mcc001.3gppnetwork.org:5060;transport=tcp)

S-CSCF Capabilities Table: Maps S-CSCFs to their supported capabilities:

  • ID: Unique identifier for the capability mapping
  • S-CSCF ID: References the S-CSCF in the first table
  • Capability: Integer capability ID that this S-CSCF supports

Example Configuration: A typical deployment might have:

  • S-CSCF #1: "Primary S-CSCF" with URI sip:scscf.ims.mnc001.mcc001.3gppnetwork.org:5060
    • Supports capability 0 (mandatory capability)
    • Supports capability 1 (optional capability)

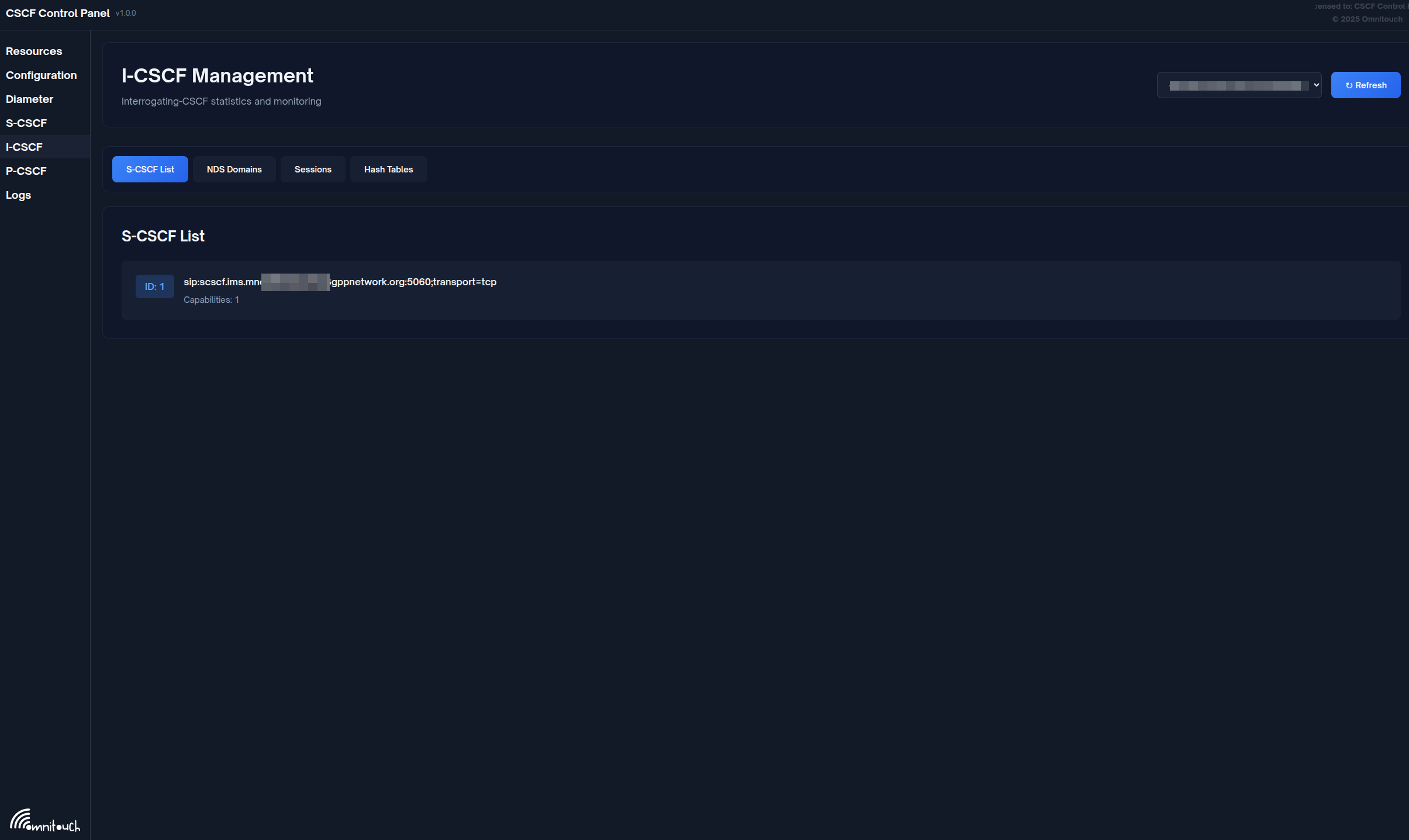

You can view the current S-CSCF list via: Web UI → I-CSCF → S-CSCF List tab

I-CSCF S-CSCF List

The S-CSCF list shows available S-CSCF servers and their capabilities for load balancing and assignment.

Selection Logic​

S-CSCF Selection Process: The I-CSCF performs capability-based S-CSCF selection using the following logic:

  1. Extract Capabilities: Retrieves mandatory and optional capability requirements from the HSS UAA (User Authorization Answer) response and stores them in AVP variables

  2. Database Query: Queries the database with the capability requirements to find S-CSCF servers that match the required capabilities

  3. Result Handling:

    • If a matching S-CSCF is found, the URI is stored in $avp(scscf_uri) and set as the destination URI ($du) for request forwarding
    • If no matching S-CSCF is available, responds to the original request with 503 Service Unavailable

3. Topology Hiding​

The I-CSCF shields internal S-CSCF addresses from external networks by:

  1. Removing Record-Route: Doesn't add Record-Route header
  2. Proxying responses: Removes Via headers revealing S-CSCF
  3. Contact rewriting: (optional) Replaces S-CSCF contact with I-CSCF
  4. Path removal: Strips internal path information

Example:

External sees:
  Via: SIP/2.0/UDP icscf.example.com:5060

Internal reality:
  Via: SIP/2.0/UDP scscf.example.com:5060
  Via: SIP/2.0/UDP icscf.example.com:5060

4. Routing Logic​

REGISTER Processing​

INVITE Processing (Terminating)​

5. NDS (Network Domain Security)​

The I-CSCF maintains a list of trusted domains for inter-operator security.

Trusted Domains Database: Contains a list of domain names that are trusted for inter-operator communication:

  • ID: Unique identifier for each trusted domain
  • Trusted Domain: Domain name (e.g., "ims.mnc001.mcc001.3gppnetwork.org")

Example Configuration: A typical deployment includes the home IMS domain and any peering partner domains:

  • ims.mnc001.mcc001.3gppnetwork.org (home network)
  • ims.mnc002.mcc001.3gppnetwork.org (roaming partner)

Purpose:

  • Validate incoming requests from peering networks
  • Apply security policies based on trust relationships
  • Implement rate limiting per domain
  • Control which external networks can access the IMS core

You can view trusted domains via: Web UI → I-CSCF → Trusted Domains tab

6. Failover and Load Balancing​

S-CSCF Failover​

Trigger Conditions - Failover to the next S-CSCF is triggered by:

  • 408 Request Timeout
  • 5xx Server Error responses
  • 6xx Global Failure responses (except 600 Busy Everywhere, which indicates user rejection rather than server failure)

Failover Logic: The I-CSCF implements automatic failover using a failure route:

  1. Status Check: When a response is received, checks if the status code matches failover criteria (408, 5xx, or 6xx)

  2. Next S-CSCF Selection: If failover is triggered, selects the next available S-CSCF from the list

  3. Retry or Fail:

    • If another S-CSCF is available, relays the request to it
    • If all S-CSCFs have been tried and failed, responds with 503 Service Unavailable to the originator

Stateful S-CSCF List Management:

  • The list of candidate S-CSCFs is kept in transaction memory
  • Position in the list is maintained across multiple attempts
  • The list is cleared when a final successful response is received (2xx success or 4xx client error)
  • The list is preserved when receiving 401 Unauthorized (authentication challenge), as the same S-CSCF must handle the subsequent authenticated request

Load Balancing​

Load Balancing Configuration:

When multiple S-CSCFs support the same capabilities:

  • S-CSCF 1: sip:scscf1.example.com:5060 - capability 0
  • S-CSCF 2: sip:scscf2.example.com:5060 - capability 0
  • S-CSCF 3: sip:scscf3.example.com:5060 - capability 0

The I-CSCF uses round-robin or random selection to distribute load evenly across all matching S-CSCFs.

View load distribution via: Web UI → I-CSCF → S-CSCF List (shows all configured servers)

Web UI Operations​

Accessing I-CSCF Page​

Navigate to: https://<control-panel>/icscf

Page Layout​

The I-CSCF page has four main tabs:

  1. S-CSCF Servers - Configured S-CSCFs and capabilities
  2. NDS Trusted Domains - Network domain security
  3. Sessions - Active I-CSCF sessions with S-CSCF selection
  4. Hash Tables - Shared memory tables

Viewing S-CSCF Servers​

Purpose: See which S-CSCFs are available for user assignment

Display Columns:

  • ID: Database ID
  • Name: Descriptive name
  • S-CSCF URI: SIP URI of the S-CSCF
  • Capabilities: Comma-separated capability IDs

Example Output:

ID   Name                    S-CSCF URI                                          Capabilities
1    Primary S-CSCF          sip:scscf.ims.mnc001.mcc001.3gppnetwork.org:5060   0, 1
2    Secondary S-CSCF        sip:scscf2.ims.mnc001.mcc001.3gppnetwork.org:5060  0, 1

Operations:

  • View list of S-CSCFs
  • Check capabilities configured
  • Verify S-CSCF URIs

Note: To add/modify S-CSCFs, coordinate with system administrators. New S-CSCF entries require:

  • A name (descriptive label like "New S-CSCF")
  • The S-CSCF URI (e.g., sip:scscf3.example.com:5060;transport=tcp)
  • Associated capability IDs (e.g., capabilities 0 and 1)

Viewing NDS Trusted Domains​

Purpose: Monitor which network domains are trusted for peering

Display Columns:

  • ID: Database ID
  • Trusted Domain: FQDN of trusted network

Example Output:

ID   Trusted Domain
1    ims.mnc001.mcc001.3gppnetwork.org
2    ims.mnc002.mcc001.3gppnetwork.org
3    carrier.example.com

Operations:

  • View trusted domains
  • Verify peering relationships

Adding Trusted Domains: Coordinate with system administrators to add new trusted domains. Each entry requires the fully qualified domain name (FQDN) of the trusted network (e.g., partner.example.com).

Monitoring Active Sessions​

Purpose: See real-time I-CSCF decision-making and S-CSCF selection

Display Information:

  • Call-ID: SIP Call-ID
  • User Identity: Public identity being queried
  • Selected S-CSCF: Which S-CSCF was chosen
  • Capability Match: Capabilities that matched
  • UAR/LIR Result: Diameter result code
  • Timestamp: When session was created

Use Cases:

  1. Verify S-CSCF selection is working
  2. Troubleshoot routing issues
  3. Monitor load distribution across S-CSCFs
  4. Analyze capability matching

Example:

Call-ID: 3c26700857a87f84@10.4.12.165
User: sip:12015551234@ims.mnc001.mcc001.3gppnetwork.org
Selected S-CSCF: sip:scscf.ims.mnc001.mcc001.3gppnetwork.org:5060
Capabilities: mandatory=[0,1], optional=[]
Operation: UAR (Registration)
Result: 2001 (FIRST_REGISTRATION)
Timestamp: 2025-11-29 14:35:22

Hash Table Management​

Similar to P-CSCF, the I-CSCF can use hash tables for caching or custom logic.

Common Use Cases:

  • Cache UAR/LIR results (short TTL)
  • Rate limiting per source IP
  • Custom routing decisions

Operations: Same as P-CSCF (list, dump, delete, flush)

Call Flows​

Registration Flow with I-CSCF​

Terminating Call Flow via I-CSCF​

S-CSCF Failover Flow​

Troubleshooting​

HSS Connectivity Issues​

Diameter Peer Closed​

Symptoms: Cannot query HSS, all registrations fail

Diagnostic Steps:

  1. Check Diameter peer status in Web UI:

    • Navigate to Diameter page
    • Select I-CSCF node
    • Check HSS peer state

  2. Verify network connectivity to HSS (coordinate with network team if needed)

  3. Try to enable peer via the control panel:

    • Navigate to Diameter page
    • Find HSS peer
    • Click "Enable" button

  4. Review system logs via the control panel Logs page for CER/CEA (Capabilities Exchange) messages and Diameter errors

  5. Coordinate with system administrators to verify Diameter configuration if needed

UAR/LIR Timeout​

Symptoms: Registrations/calls timeout, logs show Diameter timeout

Possible Causes:

  • HSS overloaded
  • Network latency
  • Incorrect routing realm
  • HSS not responding to this I-CSCF

Solutions:

  1. Review system logs for Diameter timeout errors

  2. Verify HSS peer is connected via the control panel (Diameter page)

  3. Coordinate with system administrators to:

    • Increase Diameter transaction timeout if needed
    • Verify destination realm configuration
    • Check HSS logs if accessible

  4. Monitor Diameter message flow via the control panel Logs page

  5. Coordinate with network team to verify no network latency or routing issues to HSS

S-CSCF Selection Issues​

No S-CSCF Selected​

Symptoms: 503 Service Unavailable, logs show "No S-CSCF available"

Diagnostic Steps:

  1. Check S-CSCF list via the control panel:

    • Navigate to I-CSCF → S-CSCF Servers tab
    • Verify S-CSCFs are configured with appropriate capabilities

  2. Review system logs for HSS UAA (User Authorization Answer) capabilities

  3. Verify capabilities matching between what HSS returns and what's configured in the I-CSCF database

  4. Coordinate with system administrators to:

    • Verify database connectivity
    • Add missing S-CSCF entries if needed
    • Check capability configuration matches HSS expectations

Wrong S-CSCF Selected​

Symptoms: Calls route to unexpected S-CSCF

Possible Causes:

  • Capability mismatch
  • Load balancing issue
  • Database out of sync with HSS

Solutions:

  1. Monitor session tracking via the control panel:

    • Navigate to I-CSCF → Sessions tab
    • Review S-CSCF selection decisions

  2. Review system logs to check if HSS is assigning a specific S-CSCF name (which would override selection logic)

  3. Verify I-CSCF database S-CSCF list and capabilities match HSS expectations

  4. Coordinate with system administrators to review capability matching configuration

Routing Issues​

Requests Not Forwarding to S-CSCF​

Symptoms: I-CSCF receives request but doesn't forward

Diagnostic Steps:

  1. Review system logs via the control panel Logs page for routing errors

  2. Verify destination S-CSCF URI is being set correctly (check logs for routing decisions)

  3. Verify network connectivity to S-CSCF (coordinate with network team)

  4. Check that selected S-CSCF is actually reachable and responding

  5. Coordinate with system administrators to enable debug logging if needed for deeper analysis

S-CSCF Responds But I-CSCF Doesn't Relay​

Symptoms: Wireshark shows response to I-CSCF but not forwarded

Possible Causes:

  • Transaction timeout
  • Via header mismatch
  • Record-Route loop

Solutions:

  1. Review system logs for transaction matching errors or loop detection

  2. Verify Via headers are being processed correctly (check logs)

  3. Coordinate with system administrators to:

    • Increase transaction timeout if needed
    • Verify no SIP routing loops

Database Issues​

Database Connection Lost​

Symptoms: "Database connection error" in logs

Solutions:

  1. Coordinate with system administrators to:
    • Verify database service is running
    • Test database connectivity
    • Enable auto-reconnect if not already configured
    • Restart I-CSCF service if needed

Database Schema Mismatch​

Symptoms: SQL errors in logs about missing columns/tables

Solutions:

  1. Coordinate with system administrators to:
    • Verify database schema matches expected structure
    • Check s_cscf, s_cscf_capabilities, and nds_trusted_domains tables exist and have correct columns
    • Re-create database schema if needed

Best Practices​

High Availability​

  1. Deploy multiple I-CSCF instances:

    • Use DNS SRV for load balancing
    • Each instance connects to same HSS
    • Share database (read-only for S-CSCF list)

  2. DNS SRV Configuration:

    _sip._udp.ims.example.com. SRV 10 50 5060 icscf01.example.com.
    _sip._udp.ims.example.com. SRV 10 50 5060 icscf02.example.com.
    _sip._tcp.ims.example.com. SRV 10 50 5060 icscf01.example.com.
    _sip._tcp.ims.example.com. SRV 10 50 5060 icscf02.example.com.

  3. Stateless operation: I-CSCF doesn't maintain dialog state, making failover seamless

Performance Tuning​

  1. Worker processes: Set high worker count for optimal query throughput

    • children=64 (high value optimized for I-CSCF's query-heavy workload)
    • tcp_children=8 for handling TCP connections

  2. Database connection pooling: Use persistent connections to reduce connection overhead

  3. Disable unnecessary features to reduce processing overhead:

    • No RTP handling (I-CSCF is signaling-only)
    • No presence services
    • Minimal logging in production (set to info or warning level only)

  4. Optimize Diameter for high-throughput Cx interface:

    • sessions_hash_size=4096 (larger hash table for better session lookup performance)
    • workers=4 (dedicated Diameter worker threads for concurrent Cx operations)

Security​

  1. Validate trusted domains: Check Via/P-Visited-Network-ID

  2. Rate limiting: Prevent DoS attacks on HSS by limiting UAR/LIR queries per source IP

    • Use pike module to check request rate
    • If rate limit exceeded, respond with 503 Too Many Requests
    • Protects HSS from being overwhelmed by malicious query floods

  3. TLS to HSS: Use Diameter over TLS (DTLS)

  4. Sanitize headers: Remove untrusted P-headers from external networks

Monitoring​

  1. Key Metrics:

    • UAR success rate
    • LIR success rate
    • Average query latency
    • S-CSCF distribution (load balance)
    • Diameter peer uptime

  2. Prometheus Queries:

    # UAR success rate
    rate(icscf_uar_success[5m]) / rate(icscf_uar_total[5m])

    # Average Diameter latency
    rate(diameter_request_duration_sum[5m]) / rate(diameter_request_duration_count[5m])

  3. Alerting:

    • HSS peer down
    • All S-CSCFs unavailable
    • High error rate (>5%)

Database Maintenance​

Database maintenance is handled by system administrators. Key maintenance tasks include:

  1. Keep S-CSCF list updated: Coordinate with administrators to ensure S-CSCF list in database matches actual deployments

    • Verify via web UI: Navigate to I-CSCF → S-CSCF List tab
    • Check that all active S-CSCF servers are listed with correct capabilities

  2. Prune old sessions: If UAR/LIR results are cached, old entries should be cleaned periodically

Reference​

3GPP Specifications​

  • TS 23.228: IMS Architecture
  • TS 29.228: Cx Interface (I-CSCF to HSS)
  • TS 29.229: Cx/Dx Protocol

Diameter RFCs​

  • RFC 6733: Diameter Base Protocol
  • RFC 7155: Diameter NAT Traversal
