Diameter Gx Interface Documentation

Policy and Charging Rules Function (PCRF) Interface

Overview
Gx Interface Basics
Diameter Protocol
Credit Control Messages
Policy and Charging Rules
Location Change Reporting
Configuration
Message Flows
Error Handling
Troubleshooting

Overview

The Gx interface connects PGW-C to the PCRF (Policy and Charging Rules Function) or PCF (Policy Control Function) in 5G networks. This interface enables:

Dynamic Policy Control - Real-time QoS and policy enforcement
Charging Control - Credit authorization and usage tracking
Service Awareness - Application-level traffic differentiation
Subscriber Profile Management - Per-user policy application

Gx in the Network Architecture

Key Functions

Function	Description
Policy Provisioning	PCRF provides PCC rules defining how to handle traffic
QoS Control	Dynamic adjustment of bitrates and QoS parameters
Charging Control	Credit authorization for prepaid/postpaid scenarios
Gating Control	Enable/disable traffic flows based on policy
Usage Monitoring	Track data consumption per service

Gx Interface Basics

3GPP Reference

Specification: 3GPP TS 29.212
Diameter Application ID: 16777238 (Gx)
Protocol: Diameter Base Protocol (RFC 6733)

Session Concept

Each UE PDN connection has a corresponding Gx session identified by a Session-ID. This session:

Created when UE attaches (CCR-Initial)
Updated during the connection lifetime (CCR-Update) - optional, e.g. policy changes or location change reporting
Terminated when UE detaches (CCR-Termination)

Session ID Format

Session-ID: <Origin-Host>;<high32>;<low32>[;<optional>]
Example: omni-pgw_c.epc.mnc999.mcc999.3gppnetwork.org;1234567890;98765

Components:

Origin-Host: PGW-C's Diameter identity
high32: High 32 bits of unique identifier
low32: Low 32 bits of unique identifier

Diameter Protocol

Message Structure

Diameter messages are binary-encoded with the following structure:

Diameter Header (20 bytes)
├── Version (1 byte) = 1
├── Message Length (3 bytes)
├── Flags (1 byte)
│   ├── R: Request (1) / Answer (0)
│   ├── P: Proxiable
│   ├── E: Error
│   └── T: Potentially retransmitted
├── Command Code (3 bytes)
├── Application ID (4 bytes) = 16777238 (Gx)
├── Hop-by-Hop ID (4 bytes)
└── End-to-End ID (4 bytes)

AVPs (Attribute-Value Pairs)
├── AVP Header
│   ├── AVP Code
│   ├── Flags (V, M, P)
│   ├── AVP Length
│   └── Vendor ID (optional)
└── AVP Data

Key Diameter Concepts

AVP (Attribute-Value Pair):

Basic data unit in Diameter
Contains a code, flags, and value
Can be nested (Grouped AVP)

Command:

Request/Answer pair
CCR (Credit-Control-Request) / CCA (Credit-Control-Answer)

Result Codes:

2001 - DIAMETER_SUCCESS
3xxx - Protocol errors
4xxx - Transient failures
5xxx - Permanent failures

Credit Control Messages

PGW-C uses the Diameter Credit Control Application (RFC 4006) for Gx.

Message Types

CCR-Initial (Credit Control Request - Initial)

When: UE creates a new PDN connection

Purpose:

Request initial policy and charging rules
Provide UE and network context to PCRF
Obtain QoS parameters and charging authorization

Key AVPs Sent by PGW-C:

AVP Name	AVP Code	Type	Description
Session-Id	263	UTF8String	Unique Gx session identifier
Auth-Application-Id	258	Unsigned32	16777238 (Gx)
Origin-Host	264	DiamIdent	PGW-C's Diameter identity
Origin-Realm	296	DiamIdent	PGW-C's Diameter realm
Destination-Realm	283	DiamIdent	PCRF's realm
CC-Request-Type	416	Enumerated	1 = INITIAL_REQUEST
CC-Request-Number	415	Unsigned32	Sequence number (starts at 0)
Subscription-Id	443	Grouped	UE identifier (IMSI/MSISDN)
Called-Station-Id	30	UTF8String	APN name
Framed-IP-Address	8	OctetString	Allocated UE IPv4 address (IPv4 and IPv4v6 PDNs)
Framed-IPv6-Prefix	97	OctetString	Allocated UE IPv6 prefix (IPv6-only PDNs)
3GPP-User-Location-Info	22	OctetString	Initial subscriber ULI (TS 29.061)
User-Equipment-Info	458	Grouped	UE identity (e.g. IMEISV), when available
IP-CAN-Type	1027	Enumerated	5 = 3GPP-EPS
RAT-Type	1032	Enumerated	Mapped from the GTP RAT type (e.g. 1004 = EUTRAN)
QoS-Information	1016	Grouped	Current QoS (APN-AMBR UL/DL)
Default-EPS-Bearer-QoS	1049	Grouped	Default bearer QCI/ARP (QCI 5)
Network-Request-Support	1024	Enumerated	Network-initiated procedures
Supported-Features	628	Grouped	Gx feature list (Rel-8/9/10 Gx)

The framed-address AVP is selected by the UE address family: Framed-IP-Address for IPv4 (and the IPv4 of an IPv4v6 PDN), Framed-IPv6-Prefix for an IPv6-only PDN. For IPv4v6 the IPv6 prefix is not carried on Gx. See IPv6 / Dual-Stack.

Example CCR-I Structure:

CCR (Command Code: 272, Request)
├── Session-Id: "pgw_c.example.com;123;456"
├── Auth-Application-Id: 16777238
├── Origin-Host: "omni-pgw_c.epc.mnc999.mcc999.3gppnetwork.org"
├── Origin-Realm: "epc.mnc999.mcc999.3gppnetwork.org"
├── Destination-Realm: "epc.mnc999.mcc999.3gppnetwork.org"
├── CC-Request-Type: INITIAL_REQUEST (1)
├── CC-Request-Number: 0
├── Subscription-Id (Grouped)
│   ├── Subscription-Id-Type: END_USER_IMSI (1)
│   └── Subscription-Id-Data: "310260123456789"
├── Called-Station-Id: "internet"
├── Framed-IP-Address: 100.64.1.42
├── IP-CAN-Type: 3GPP-EPS (5)
├── RAT-Type: EUTRAN (1004)
├── QoS-Information (Grouped)
│   ├── APN-Aggregate-Max-Bitrate-UL: 100000000 (100 Mbps)
│   └── APN-Aggregate-Max-Bitrate-DL: 50000000 (50 Mbps)
├── Network-Request-Support: 1
└── Supported-Features: [...]

CCA-Initial (Credit Control Answer - Initial)

Sent by: PCRF in response to CCR-I

Purpose:

Authorize or reject the session
Provide PCC rules for traffic handling
Specify QoS parameters

Key AVPs Received by PGW-C:

AVP Name	AVP Code	Description
Result-Code	268	Success (2001) or error code
Experimental-Result	297	Vendor-specific result codes
QoS-Information	1016	Authorized QoS (may differ from request)
Charging-Rule-Install	1001	PCC rules to activate
Charging-Rule-Definition	1003	Inline rule definitions
Default-EPS-Bearer-QoS	1049	QoS for default bearer

Success Response Example:

CCA (Command Code: 272, Answer)
├── Session-Id: "pgw_c.example.com;123;456"
├── Result-Code: DIAMETER_SUCCESS (2001)
├── Origin-Host: "pcrf.example.com"
├── Origin-Realm: "example.com"
├── Auth-Application-Id: 16777238
├── CC-Request-Type: INITIAL_REQUEST (1)
├── CC-Request-Number: 0
├── QoS-Information (Grouped)
│   ├── APN-Aggregate-Max-Bitrate-UL: 50000000 (50 Mbps - reduced)
│   └── APN-Aggregate-Max-Bitrate-DL: 100000000 (100 Mbps - increased)
├── Charging-Rule-Install (Grouped)
│   ├── Charging-Rule-Name: "default_internet_rule"
│   └── Charging-Rule-Name: "video_streaming_rule"
└── Charging-Rule-Definition (Grouped)
    ├── Charging-Rule-Name: "default_internet_rule"
    ├── QoS-Information: {...}
    └── Precedence: 1000

CCR-Termination (Credit Control Request - Termination)

When: UE detaches or PDN connection is deleted

Purpose:

Notify PCRF of session termination
Final accounting/charging record

Key Differences from CCR-I:

CC-Request-Type: TERMINATION_REQUEST (3)
May include usage statistics
Simplified AVP set

Example CCR-T:

CCR (Command Code: 272, Request)
├── Session-Id: "pgw_c.example.com;123;456"
├── Auth-Application-Id: 16777238
├── Origin-Host: "omni-pgw_c.epc.mnc999.mcc999.3gppnetwork.org"
├── Origin-Realm: "epc.mnc999.mcc999.3gppnetwork.org"
├── Destination-Realm: "epc.mnc999.mcc999.3gppnetwork.org"
├── CC-Request-Type: TERMINATION_REQUEST (3)
├── CC-Request-Number: 1
└── Termination-Cause: DIAMETER_LOGOUT (1)

CCA-Termination

Sent by: PCRF in response to CCR-T

Purpose:

Acknowledge session termination
No policy rules returned

Example CCA-T:

CCA (Command Code: 272, Answer)
├── Session-Id: "pgw_c.example.com;123;456"
├── Result-Code: DIAMETER_SUCCESS (2001)
├── Origin-Host: "pcrf.example.com"
├── Origin-Realm: "example.com"
├── Auth-Application-Id: 16777238
├── CC-Request-Type: TERMINATION_REQUEST (3)
└── CC-Request-Number: 1

Policy and Charging Rules

PCC Rule Structure

A PCC (Policy and Charging Control) Rule defines how to handle specific traffic flows:

Rule Components

1. Rule Name:

Unique identifier for the rule
Example: "video_streaming_rule"

2. Precedence:

Lower number = higher priority
Range: 0-65535
Used when multiple rules match

3. Flow Filters (TFT - Traffic Flow Template):

Defines which packets match this rule
Examples:
- IP 5-tuple: Protocol, Src/Dst IP, Src/Dst Port
- "permit out ip from any to 8.8.8.8 80"

4. QoS Information:

QCI (QoS Class Identifier): 1-9 (standardized), 128-254 (operator-specific)
- QCI 1: Conversational Voice
- QCI 5: IMS Signaling
- QCI 9: Default Internet
ARP (Allocation and Retention Priority): Pre-emption capability
MBR/GBR: Maximum/Guaranteed Bit Rates

5. Charging Information:

Rating Group: Identifies charging category (used by OCS - see Diameter Gy Interface)
Metering Method: Volume, time, or event-based
Online/Offline Charging: OCS (prepaid via Diameter Gy) vs. offline CDRs (postpaid - see Data CDR Format)

6. Gating Status:

OPEN: Allow traffic
CLOSED: Block traffic

Dynamic Rule Provisioning

PCRF can provide rules in two ways:

1. Predefined Rules (by name):

Charging-Rule-Install (Grouped)
├── Charging-Rule-Name: "gold_subscriber_internet"
└── Charging-Rule-Name: "video_qos_boost"

2. Dynamic Rules (inline definition):

Charging-Rule-Definition (Grouped)
├── Charging-Rule-Name: "dynamic_rule_123"
├── Precedence: 100
├── Flow-Information (Grouped)
│   ├── Flow-Description: "permit out ip from any to 192.0.2.0/24"
│   └── Flow-Direction: DOWNLINK
├── QoS-Information (Grouped)
│   ├── QoS-Class-Identifier: 5
│   ├── Max-Requested-Bandwidth-UL: 10000000
│   └── Max-Requested-Bandwidth-DL: 50000000
└── Rating-Group: 1000

QoS Information AVP

APN-AMBR (Aggregate Maximum Bit Rate):

Applies to all non-GBR bearers for this APN:

QoS-Information (Grouped)
├── APN-Aggregate-Max-Bitrate-UL: 100000000  # 100 Mbps
└── APN-Aggregate-Max-Bitrate-DL: 200000000  # 200 Mbps

PGW-C Response:

Updates internal AMBR state
Sends Session Modification Request to PGW-U with updated QER

Location Change Reporting

PGW-C can notify the PCRF when a subscriber's location, radio access technology (RAT), serving PLMN or UE time zone changes during the life of a session. The change is carried in a CCR-Update as the 3GPP-User-Location-Info and related AVPs.

Reporting is opt-in (PCRF-controlled)

This reporting is conditional on the PCRF requesting it — exactly as required by 3GPP TS 29.212 §4.5.7 / §5.3.7. The PCRF arms the events it wants to hear about by including one or more Event-Trigger AVPs in a CCA (or in an RAR). PGW-C stores the armed set per Gx session and only sends a CCR-Update when:

an armed Event-Trigger's condition actually occurs, and
a Gx session exists for the subscriber.

If the PCRF arms no location-related Event-Triggers, PGW-C stays silent on location changes — it simply updates its internal state and answers the GTP-C Modify Bearer Request. This keeps the interface quiet for PCRFs that don't care about mobility, and compliant for those that do.

The armed set can change at any time during the session. PGW-C updates it from every Event-Trigger AVP set the PCRF sends — in the CCA-Initial, in a CCA-Update, or in a PCRF-initiated RAR. A present Event-Trigger set replaces the currently armed set; a message that carries no Event-Trigger AVP leaves the armed set unchanged. So a PCRF can start a session with no location reporting and later turn it on (or off) with an RAR, and vice-versa.

Supported Event-Triggers

Event-Trigger	Value	Fires when…	Reported AVP
`RAT_CHANGE`	2	RAT-Type changes (e.g. EUTRAN → UTRAN)	`RAT-Type`
`PLMN_CHANGE`	4	Serving network (MCC/MNC) changes	`3GPP-SGSN-MCC-MNC`
`USER_LOCATION_CHANGE`	13	Any change in User Location Info	`3GPP-User-Location-Info`
`UE_TIME_ZONE_CHANGE`	25	UE time zone changes	`3GPP-MS-TimeZone`
`TAI_CHANGE`	26	Tracking Area Identity changes	`3GPP-User-Location-Info`
`ECGI_CHANGE`	27	E-UTRAN Cell Global Identity changes	`3GPP-User-Location-Info`

Multiple triggers can fire at once (e.g. moving to a new cell in a new tracking area fires USER_LOCATION_CHANGE, TAI_CHANGE and ECGI_CHANGE); all fired-and-armed triggers are listed in the CCR-Update's Event-Trigger AVPs.

Where location comes from

CCR-Initial now includes the subscriber's initial 3GPP-User-Location-Info, giving the PCRF a baseline.
During the session, a GTP-C Modify Bearer Request (S5/S8) carries the updated User Location Info, RAT-Type, Serving Network and UE Time Zone. PGW-C parses these, compares them against the stored values, and reports any armed change.
IEs absent from a Modify Bearer Request keep their previous value, so a partial Modify Bearer Request never looks like a spurious location change.

3GPP-User-Location-Info encoding

The AVP is encoded per 3GPP TS 29.061 §16.4.7.2: a one-octet Geographic Location Type followed by the location field(s), with PLMN identities encoded per 3GPP TS 24.008 §10.5.1.3. Supported types:

Type	Value	Contents
CGI	0	PLMN + LAC + CI (2G)
SAI	1	PLMN + LAC + SAC (3G)
RAI	2	PLMN + LAC + RAC
TAI	128	PLMN + TAC (LTE)
ECGI	129	PLMN + ECI (LTE)
TAI and ECGI	130	PLMN + TAC + PLMN + ECI (LTE, preferred)

Message Flow

Robustness: reporting the change to the PCRF never blocks the GTP-C Modify Bearer Response. If the CCR-Update times out or the PCRF returns an error, PGW-C logs it and still answers the SGW-C — the subscriber's data path is not held up by a policy-reporting failure.

Inspecting the armed triggers via the API

The Sessions API (GET /api/sessions and GET /api/sessions/:imsi) returns a complete, JSON-safe dump of the session under the state key, in addition to the curated top-level fields. The PCRF-armed Event-Triggers are visible at state.gx.requested_event_triggers, alongside the rest of the Gx session state (session_id, cc_request_number, destination host/realm) and the current state.uli. This makes it possible to confirm from operations tooling whether a subscriber is actually subscribed to location reporting.

Overriding the armed triggers via the API

The armed set can also be changed directly on a live session with PATCH /api/sessions/:imsi (useful for testing the feature without a PCRF, or to force reporting on/off). The body is deep-merged into the session state, so the path mirrors the structure returned by GET — the armed triggers live under gx:

PATCH /api/sessions/310260000000001
Content-Type: application/json

{ "gx": { "requested_event_triggers": [13, 26, 27] } }

The value is a list of Gx Event-Trigger codes; it replaces the armed set (other gx fields are left untouched by the merge).
An empty list ([]) disarms all location reporting for the session.
The response echoes the updated, sanitized session state.

This endpoint has no guard rails: the body is deep-merged into the live session, so any field can be changed — including to a value that breaks the session. Changes that have downstream effects are propagated to the UPF. Updating the APN-AMBR or the default-bearer QoS recomputes the default-bearer QER (QCI / MBR / GBR) and pushes it as an Update QER in a PFCP Session Modification:

PATCH /api/sessions/310260000000001
Content-Type: application/json

{ "ambr": { "uplink": 200000, "downlink": 200000 } }

PATCH /api/sessions/310260000000001
Content-Type: application/json

{ "default_bearer_qos": { "qci": 5, "mbr_ul": 300000, "mbr_dl": 250000 } }

When default_bearer_qos provides explicit MBR/GBR (GBR bearers) those drive the QER rate limits; otherwise the APN-AMBR is used as the default-bearer MBR.

Note: overriding the armed triggers changes PGW-C's local view of what the PCRF armed. The PCRF can still re-arm the set later via a CCA or RAR, which will overwrite a manual override.

Configuration

Basic Gx Configuration

Edit config/runtime.exs:

config :pgw_c,
  diameter: %{
    # IP address to listen for Diameter connections
    listen_ip: "0.0.0.0",

    # PGW-C's Diameter identity (Origin-Host)
    host: "omni-pgw_c.epc.mnc999.mcc999.3gppnetwork.org",

    # PGW-C's Diameter realm (Origin-Realm)
    realm: "epc.mnc999.mcc999.3gppnetwork.org",

    # List of PCRF peers
    peer_list: [
      %{
        # PCRF Diameter identity
        host: "pcrf.epc.mnc999.mcc999.3gppnetwork.org",

        # PCRF realm (usually same as PGW-C realm)
        realm: "epc.mnc999.mcc999.3gppnetwork.org",

        # PCRF IP address
        ip: "10.0.0.30",

        # Whether PGW-C initiates connection to PCRF
        # true = PGW-C connects to PCRF
        # false = Wait for PCRF to connect
        initiate_connection: true
      }
    ]
  }

Multiple PCRF Peers

For redundancy or geographic distribution:

config :pgw_c,
  diameter: %{
    listen_ip: "0.0.0.0",
    host: "omni-pgw_c.epc.mnc999.mcc999.3gppnetwork.org",
    realm: "epc.mnc999.mcc999.3gppnetwork.org",
    peer_list: [
      %{
        host: "pcrf-primary.example.com",
        realm: "epc.mnc999.mcc999.3gppnetwork.org",
        ip: "10.0.1.30",
        initiate_connection: true
      },
      %{
        host: "pcrf-backup.example.com",
        realm: "epc.mnc999.mcc999.3gppnetwork.org",
        ip: "10.0.2.30",
        initiate_connection: true
      }
    ]
  }

Load Balancing:

Diameter protocol handles peer selection
Requests distributed based on availability
Automatic failover on peer failure

Hostname Resolution

Diameter Identities must be FQDNs (Fully Qualified Domain Names):

# CORRECT - FQDN format
host: "pgw_c.epc.mnc999.mcc999.3gppnetwork.org"

# INCORRECT - Not a valid Diameter Identity
host: "pgw_c"
host: "10.0.0.20"  # IP addresses not allowed

Realm Format:

Must be valid domain name
Typically matches 3GPP PLMN format: epc.mncXXX.mccYYY.3gppnetwork.org

Message Flows

Successful Session Establishment

Note: QoS parameters from PCRF are translated into QERs (QoS Enforcement Rules) and programmed into PGW-U via PFCP. See PFCP Interface for QER details.

Policy Update (Network-Initiated)

Session Termination

Error Handling

Result Codes

PGW-C handles various Diameter result codes in CCA messages:

Success Codes:

Code	Name	Action
2001	DIAMETER_SUCCESS	Continue session establishment

Permanent Failures (5xxx):

Code	Name	PGW-C Action
5002	DIAMETER_UNKNOWN_SESSION_ID	Log error, fail session
5030	DIAMETER_USER_UNKNOWN	Reject session (User Unknown)
5140	DIAMETER_ERROR_INITIAL_PARAMETERS	Log error, retry or fail
5003	DIAMETER_AUTHORIZATION_REJECTED	Reject session (Not Authorized)

Transient Failures (4xxx):

Code	Name	PGW-C Action
4001	DIAMETER_AUTHENTICATION_REJECTED	Retry or fail session
4010	DIAMETER_TOO_BUSY	Retry with backoff
4012	DIAMETER_UNABLE_TO_COMPLY	Log error, may retry

Experimental Result Codes

Vendor-specific error codes:

Experimental-Result (Grouped)
├── Vendor-Id: 10415 (3GPP)
└── Experimental-Result-Code: <vendor-specific code>

Common 3GPP Experimental Codes:

Code	Name	Meaning
5065	IP_CAN_SESSION_NOT_AVAILABLE	PCRF cannot establish session
5143	INVALID_SERVICE_INFORMATION	Service data invalid

Timeout Handling

CCR-I Timeout:

If PCRF doesn't respond to CCR-Initial within timeout:

1. PGW-C waits for configured timeout (e.g., 5 seconds)
2. If no CCA received:
   - Log: "CCR-Initial timeout for Session-ID: ..."
   - Respond to SGW-C with error cause
   - Clean up allocated resources
3. SGW-C receives: Create Session Response (Cause: Remote Peer Not Responding)

Error Response to SGW-C:

When CCR-Initial times out, the PGW-C sends a Create Session Response with cause code :remote_peer_not_responding to the SGW-C.

Failure Scenarios

Scenario 1: PCRF Rejects Session (User Unknown)

Scenario 2: PCRF Temporarily Unavailable

Troubleshooting

Common Issues

1. Diameter Peer Connection Fails

Symptoms:

Log: "Diameter peer not connected"
No CCR-Initial sent

Possible Causes:

PCRF not reachable
Incorrect PCRF IP in configuration
Firewall blocking Diameter port (3868)
Incorrect Diameter identities (host/realm)

Resolution:

# Test network connectivity
ping <pcrf_ip>

# Test Diameter port (TCP 3868)
telnet <pcrf_ip> 3868

# Check Diameter identity configuration
# Ensure host and realm are FQDNs, not IPs

Verify Configuration:

config :pgw_c,
  diameter: %{
    # Must be FQDN, not IP
    host: "pgw_c.epc.mnc999.mcc999.3gppnetwork.org",
    realm: "epc.mnc999.mcc999.3gppnetwork.org",
    peer_list: [
      %{
        host: "pcrf.epc.mnc999.mcc999.3gppnetwork.org",
        ip: "10.0.0.30"
      }
    ]
  }

2. CCR-Initial Timeouts

Symptoms:

Create Session Request fails
Log: "CCR-Initial timeout"

Possible Causes:

PCRF overloaded
Network latency
PCRF not responding to this Session-ID

Resolution:

Check PCRF logs for errors
Verify PCRF is processing requests
Check network latency: ping <pcrf_ip>
Increase timeout if network latency is high

3. Sessions Rejected by PCRF

Symptoms:

CCA-Initial with Result-Code != 2001
Create Session Response fails

Common Result Codes:

Result Code	Likely Cause	Resolution
5030	IMSI not in subscriber database	Provision subscriber in HSS/SPR
5003	Authorization rejected	Check subscriber permissions
4010	PCRF too busy	Retry or add PCRF capacity

Check Logs:

# PGW-C logs show:
[error] Diameter Gx error: Result-Code 5030 (DIAMETER_USER_UNKNOWN)
[error] IMSI 310260999999999 rejected by PCRF

4. QoS Not Applied

Symptoms:

Session established but wrong QoS
Bitrates don't match expected values

Debugging Steps:

Check CCA-Initial:
- Verify QoS-Information AVP present
- Check APN-Aggregate-Max-Bitrate-UL/DL values
Check PFCP Session Establishment:
- Verify QER created with correct MBR values
- Check PGW-U logs for QER installation
Verify PCRF Policy:
- Check PCRF configuration
- Verify subscriber profile includes correct QoS

5. Diameter Routing Issues

Symptoms:

Diameter messages not reaching PCRF
Log: "No route to Destination-Realm"

Cause:

Realm mismatch between configuration and messages

Resolution:

Ensure consistency:

# All must match
config :pgw_c,
  diameter: %{
    realm: "epc.mnc999.mcc999.3gppnetwork.org",  # PGW-C's realm
    peer_list: [
      %{
        realm: "epc.mnc999.mcc999.3gppnetwork.org"  # PCRF's realm (usually same)
      }
    ]
  }

In CCR-Initial:

Origin-Realm: "epc.mnc999.mcc999.3gppnetwork.org"
Destination-Realm: "epc.mnc999.mcc999.3gppnetwork.org"

Monitoring Gx Health

Key Metrics:

# Gx message rates
rate(gx_inbound_messages_total{message_type="gx_CCA"}[5m])
rate(gx_outbound_messages_total{message_type="gx_CCR"}[5m])

# Gx error rates
rate(gx_inbound_errors_total[5m])

# Gx response success rate (new metric)
sum(rate(gx_outbound_responses_total{result_code_class="2xxx"}[5m])) /
sum(rate(gx_outbound_responses_total[5m])) * 100

# Gx response failures by PCRF host
rate(gx_outbound_responses_total{result_code_class!="2xxx"}[5m]) by (diameter_host)

# Gx session count
session_id_registry_count

# Gx message handling duration
histogram_quantile(0.95, rate(gx_inbound_handling_duration_bucket[5m]))

Response Metrics by Result Code Class:

The gx_outbound_responses_total metric provides detailed visibility into Diameter responses sent to PCRF peers, categorized by:

message_type: Response message type (gx_RAA, gx_CCA)
result_code_class: Result code category (2xxx, 3xxx, 4xxx, 5xxx)
diameter_host: PCRF peer receiving the response

Common Result Codes:

2001 (DIAMETER_SUCCESS) - Successful response
3001 (DIAMETER_COMMAND_UNSUPPORTED) - Protocol error
5012 (DIAMETER_UNABLE_TO_COMPLY) - Cannot execute request
5030 (DIAMETER_USER_UNKNOWN) - Subscriber not found

Alert Examples:

# Alert on high Gx error rate
- alert: GxErrorRateHigh
  expr: rate(gx_inbound_errors_total[5m]) > 0.1
  for: 5m
  annotations:
    summary: "High Gx error rate detected"

# Alert on high Gx response failure rate
- alert: GxResponseFailureRate
  expr: |
    sum(rate(gx_outbound_responses_total{result_code_class!="2xxx"}[5m])) /
    sum(rate(gx_outbound_responses_total[5m])) > 0.1
  for: 5m
  annotations:
    summary: "High Gx response failure rate"
    description: "More than 10% of Gx responses are failures"

# Alert on PCRF-specific failures
- alert: GxPCRFFailures
  expr: rate(gx_outbound_responses_total{result_code_class=~"4xxx|5xxx"}[5m]) by (diameter_host) > 0.05
  for: 3m
  annotations:
    summary: "PCRF {{ $labels.diameter_host }} receiving failure responses"
    description: "High failure rate for PCRF host"

# Alert on session rejection
- alert: GxSessionRejection
  expr: rate(gx_inbound_errors_total{result_code="5030"}[5m]) > 0.01
  for: 5m
  annotations:
    summary: "PCRF rejecting sessions (USER_UNKNOWN)"

Debug Logging

Enable verbose Diameter logging:

# config/runtime.exs
config :logger, level: :debug

# Or at runtime
iex> Logger.configure(level: :debug)

Look for:

[debug] Sending CCR-Initial for Session-ID: ...
[debug] Received CCA-Initial: Result-Code 2001
[error] Diameter error: ...

Web UI - Diameter Peer Monitoring

OmniPGW includes a real-time Web UI for monitoring Diameter peer connections and status.

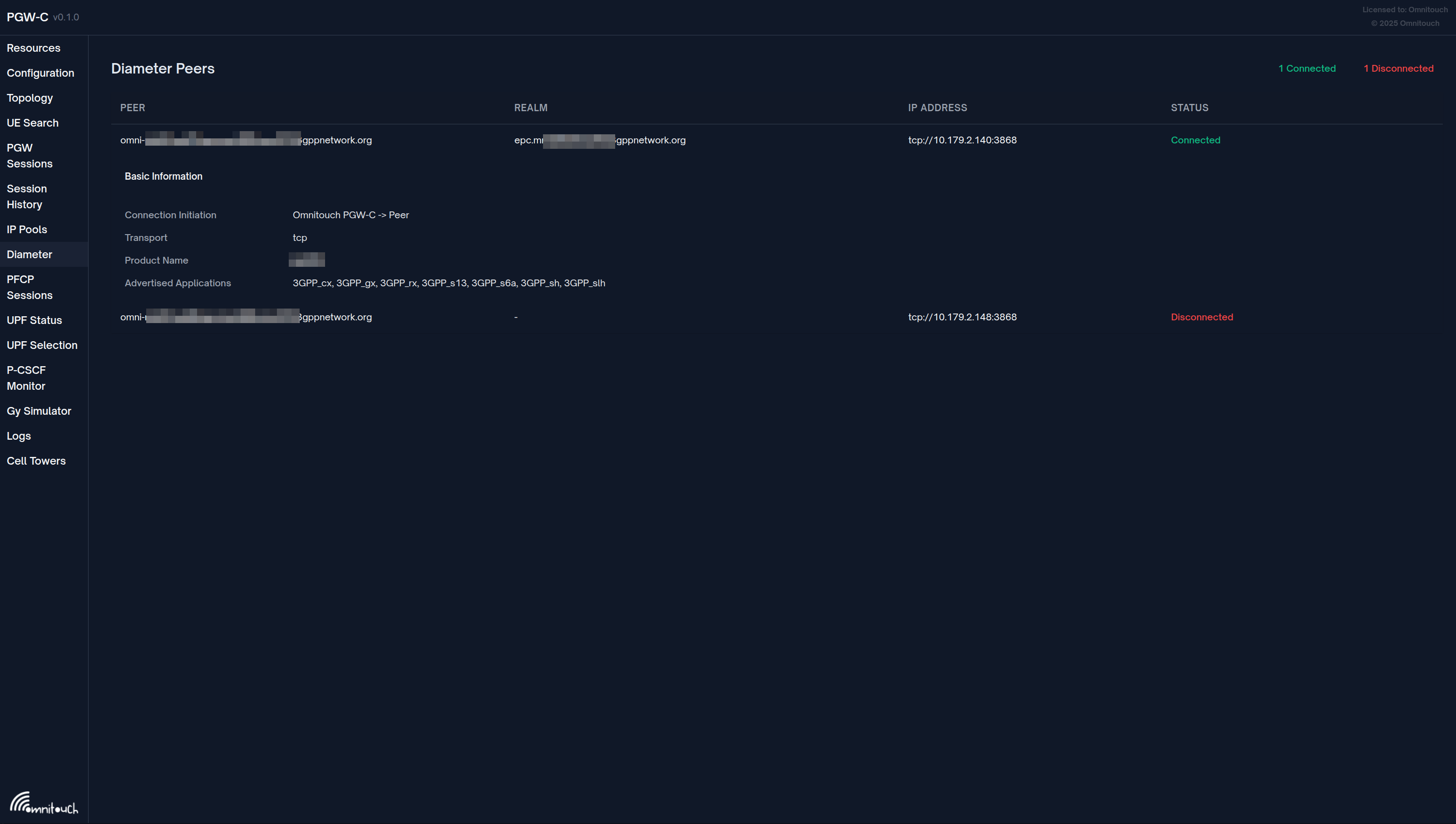

Diameter Peers Page

Diameter Peers

Access: http://<omnipgw-ip>:<web-port>/diameter

Purpose: Monitor Diameter Gx peer connectivity to PCRF in real-time

Features:

1. Peer Connection Overview

Connected Count - Number of PCRF peers with active connection
Disconnected Count - Number of configured but not connected peers
Auto-refreshes every 1 second (fastest refresh of all pages)

2. Per-Peer Status Information For each configured PCRF peer:

Host - Diameter identity (Origin-Host)
IP Address - PCRF IP
Port - Diameter port (default 3868)
Status - Connected (green) / Disconnected (red)
Transport - TCP or SCTP
Connection Initiation - Who initiates (PGW or PCRF)
Realm - Diameter realm
Product Name - PCRF product identifier (if advertised)
Application IDs - Supported Diameter applications (e.g., Gx = 16777238)

3. Expandable Details Click any peer row to see:

Complete peer configuration
Capabilities Exchange (CER/CEA) details
Supported features
Full connection state

Operational Use Cases

Monitor PCRF Connectivity:

Open Diameter page in browser
Verify all PCRF peers show "Connected"
Check Connection Initiation matches configuration
Verify Application IDs include Gx (16777238)

Troubleshoot Session Creation Failures (Gx Issues):

1. User sessions failing with "PCRF timeout" errors
2. Open Diameter page
3. Check peer status:
   - Disconnected?
     → Check network connectivity
     → Verify PCRF is running
     → Check firewall rules for TCP 3868
   - Connected but sessions failing?
     → Issue is at application level (check logs)
     → PCRF may be rejecting subscribers

Verify Diameter Configuration:

1. After configuring new PCRF peer
2. Open Diameter page
3. Verify peer appears in list
4. Check status changes to "Connected"
5. Expand peer to verify:
   - Realm matches configuration
   - Application IDs include Gx
   - Product Name shows PCRF identifier

Monitor Failover:

Scenario: Primary PCRF fails
Diameter page shows primary "Disconnected"
Verify backup PCRF still "Connected"
New sessions automatically use backup
When primary recovers, status returns to "Connected"

Detect Diameter Routing Issues:

Peer shows "Connected" but wrong realm
Application IDs don't include Gx (16777238)
Product Name doesn't match expected PCRF

Identify Configuration Mismatches:

Web UI shows:
  Connection Initiation: "Peer initiates"
But configuration says:
  initiate_connection: true

This indicates:
  - OmniPGW attempts to connect
  - But PCRF also initiating
  - May cause connection race conditions

Advantages:

Fastest refresh rate - 1 second updates
Visual connection status - Immediate red/green indication
No Diameter tools needed - No need for diameter CLI tools
Peer configuration visible - Verify settings without checking config files
Application-level details - See supported Diameter applications
Realm verification - Confirm Diameter routing configuration

Integration with Metrics

While the Web UI provides real-time status, combine with Prometheus for:

Historical Gx error rates
CCR/CCA message counts
Latency trends

Web UI = "Is it working right now?" Metrics = "How has it been working over time?"

Configuration and Policy

Configuration Guide - Diameter configuration, PCRF peer setup
PFCP Interface - QoS enforcement via QERs from PCC rules
Session Management - Session lifecycle with policy integration
QoS & Bearer Management - Detailed QoS configuration and bearer setup

Charging Integration

Diameter Gy Interface - Online charging triggered by PCC rules
Data CDR Format - Offline charging records with policy info
PCO Configuration - P-CSCF delivery for IMS policy control

Operations

Monitoring Guide - Gx metrics, policy tracking, PCRF connectivity alerts
S5/S8 Interface - Bearer management integration with policy

Back to Operations Guide

Table of Contents​

Overview​

Gx in the Network Architecture​

Key Functions​

Gx Interface Basics​

3GPP Reference​

Session Concept​

Session ID Format​

Diameter Protocol​

Message Structure​

Key Diameter Concepts​

Credit Control Messages​

Message Types​

CCR-Initial (Credit Control Request - Initial)​

CCA-Initial (Credit Control Answer - Initial)​

CCR-Termination (Credit Control Request - Termination)​

CCA-Termination​

Policy and Charging Rules​

PCC Rule Structure​

Rule Components​

Dynamic Rule Provisioning​

QoS Information AVP​

Location Change Reporting​

Reporting is opt-in (PCRF-controlled)​

Supported Event-Triggers​

Where location comes from​

3GPP-User-Location-Info encoding​

Message Flow​

Inspecting the armed triggers via the API​

Overriding the armed triggers via the API​

Configuration​

Basic Gx Configuration​

Multiple PCRF Peers​

Hostname Resolution​

Message Flows​

Successful Session Establishment​

Policy Update (Network-Initiated)​

Session Termination​

Error Handling​

Result Codes​

Experimental Result Codes​

Timeout Handling​

Failure Scenarios​

Troubleshooting​

Common Issues​

1. Diameter Peer Connection Fails​

2. CCR-Initial Timeouts​

3. Sessions Rejected by PCRF​

4. QoS Not Applied​

5. Diameter Routing Issues​

Monitoring Gx Health​

Debug Logging​

Web UI - Diameter Peer Monitoring​

Diameter Peers Page​

Operational Use Cases​

Integration with Metrics​

Related Documentation​

Configuration and Policy​

Charging Integration​

Operations​

Table of Contents

Overview

Gx in the Network Architecture

Key Functions

Gx Interface Basics

3GPP Reference

Session Concept

Session ID Format

Diameter Protocol

Message Structure

Key Diameter Concepts

Credit Control Messages

Message Types

CCR-Initial (Credit Control Request - Initial)

CCA-Initial (Credit Control Answer - Initial)

CCR-Termination (Credit Control Request - Termination)

CCA-Termination

Policy and Charging Rules

PCC Rule Structure

Rule Components

Dynamic Rule Provisioning

QoS Information AVP

Location Change Reporting

Reporting is opt-in (PCRF-controlled)

Supported Event-Triggers

Where location comes from

3GPP-User-Location-Info encoding

Message Flow

Inspecting the armed triggers via the API

Overriding the armed triggers via the API

Configuration

Basic Gx Configuration

Multiple PCRF Peers

Hostname Resolution

Message Flows

Successful Session Establishment

Policy Update (Network-Initiated)

Session Termination

Error Handling

Result Codes

Experimental Result Codes

Timeout Handling

Failure Scenarios

Troubleshooting

Common Issues

1. Diameter Peer Connection Fails

2. CCR-Initial Timeouts

3. Sessions Rejected by PCRF

4. QoS Not Applied

5. Diameter Routing Issues

Monitoring Gx Health

Debug Logging

Web UI - Diameter Peer Monitoring

Diameter Peers Page

Operational Use Cases

Integration with Metrics

Related Documentation

Configuration and Policy

Charging Integration

Operations
