Omnitouch Porting Manager

Number portability management for carriers — clearinghouse integration, ENUM routing, and OSS/BSS lifecycle events, with a web UI for operations teams.

Omnitouch has deployed number portability in our networks, with live integrations against PortingXS and support for NPAC in North American markets.

---

Overview

Omnitouch Porting Manager handles the full lifecycle of number porting operations: submitting and tracking requests with the clearinghouse, maintaining an ENUM routing database for ported numbers, and delivering lifecycle events to the operator's OSS/BSS. It integrates with PortingXS across its 43-country network and with NPAC for US deployments.

The platform is designed to be driven by an OSS/BSS at scale, with a web UI for day-to-day operations work — reviewing port status, handling edge cases, querying routing, and validating SMS delivery on ported numbers.

A few things that are worth noting before you read further:

• Routing uses All-Call-Query against an ENUM database with npdi/rn parameters per RFC 4694 and 3GPP TS 23.228 — not static range tables, which break silently on subsequent ports
• Account type mismatches (the most common rejection reason) are retried automatically without manual intervention
• The platform owns the porting workflow and routing; account eligibility and service lifecycle stay in your OSS/BSS, with API hooks to connect them
• For operators running OmniCRM, the OSS/BSS integration is pre-built

Omnitouch Porting Manager acts as the central integration point between customer management systems, external porting clearinghouses, DNS/ENUM routing infrastructure, and billing platforms.

Integration Architecture

Omnitouch Porting Manager is purpose-built around a clean boundary: it owns the porting workflow and routing, and your OSS/BSS owns the customer. This is intentional.

Operators already have a BSS that knows whether a customer account is in good standing, what services they hold, and what happens when a service terminates. Building that logic into a porting platform would mean either duplicating it or fighting it. Instead, Omnitouch Porting Manager exposes the right hooks — eligibility checks call out to your BSS for an answer, and lifecycle events (port complete, port-out authorised) notify your BSS to take action. The porting platform does its job; your BSS does its job.

In practice this means:

• Port request lifecycle and clearinghouse interactions are fully managed here
• Routing is updated automatically on completion
• Account eligibility, service activation, and account closure stay in your OSS/BSS — triggered by events from this platform, not replaced by it

For operators running OmniCRM, this integration is pre-built. For operators with an existing BSS, the API provides the event hooks needed to wire it in.

The web UI is there for porting teams to handle day-to-day operations — reviewing requests, acting on pending ports, querying routing, and diagnosing SMS delivery issues. At scale, the expectation is that port submissions and lifecycle responses are automated through the API.

---

System Architecture

Core Components

1. Porting Manager — Orchestrates porting workflows and manages interactions with the number portability clearinghouse
2. DNS/ENUM Server — Manages call routing and number resolution
3. API & Web Interface — Provides programmatic and user access to porting functions

Integration Points

• OmniCRM — Customer relationship management and service provisioning
• Charging Platform — Billing and revenue management (CGrateS)
• PortingXS — International number portability clearinghouse
• NPAC — US number portability clearinghouse
• DNS/ENUM Infrastructure — Call routing and number resolution

---

Porting Manager

Port-In Workflow

1. Request Initiation — Port-in request is created via the web UI or API
2. Clearinghouse Submission — Porting Manager submits the request to the appropriate clearinghouse (PortingXS for international markets, NPAC for US)
3. Status Monitoring — System tracks state changes via the clearinghouse event stream
4. ENUM Provisioning — Upon successful port completion, routing database is automatically updated
5. Service Activation — OmniCRM service is activated and billing begins
6. Charging Integration — Billing platform is notified to begin charging

Automatic Donor Operator Detection

When a port-in request is submitted without a donornetworkoperator, Omnitouch Porting Manager automatically determines the donor carrier from the number range. This is the recommended default for most submissions — the operator code only needs to be specified explicitly when the auto-detection result needs to be overridden.

Automatic Account Type Resubmission

A common rejection reason from donor carriers is Incorrect Account Type (rejection code 35) — the Prepaid/Postpaid flag in the request doesn't match the donor's records. Rather than requiring manual intervention, the Porting Manager automatically retries the request with the account type toggled (Prepaid → Postpaid or vice versa) when this rejection is received.

The resubmission creates a new port record. In the web UI, the original port ID is shown in green on the new record so the history is traceable. Via the API, GET /np_api/PortIn/{msgidentifier} transparently resolves to the active record if a resubmission has occurred.

Port-Out Workflow

1. Request Reception — Port-out request is received from the gaining carrier via the clearinghouse
2. Service Validation — System validates the service exists and is eligible
3. CRM Notification — OmniCRM is updated with port-out status
4. ENUM Deprovisioning — Routing database is updated to route calls to the gaining carrier
5. Service Termination — At the scheduled port time: service deactivated in OmniCRM, final invoice generated, all associated services closed

Clearinghouse Integrations

PortingXS

PortingXS (PXS) is a widely-adopted international number portability clearinghouse operating in 43 countries across four regions:

Region	Countries
Americas & Caribbean	Antigua & Barbuda, Bahamas, Barbados, Cayman Islands, Curaçao, Dominica, Grenada, Guyana, Jamaica, Panama, Saint Lucia, St. Kitts & Nevis, St. Maarten, St. Vincent & the Grenadines, Trinidad & Tobago, Turks & Caicos
Europe	Belgium, Bosnia & Herzegovina, Gibraltar, Guernsey, Ireland, Isle of Man, Jersey, Kosovo, Montenegro, Slovenia, The Netherlands, Ukraine
Africa	Algeria, Benin, Ghana, Kenya, Namibia, Nigeria, Rwanda, Senegal, Seychelles, Togo
Middle East & Asia	Armenia, Bangladesh, Brunei, Iraq, Sri Lanka

The Porting Manager integrates via a REST/SOAP API and manages the full port lifecycle through a state machine.

Core capabilities:

• Port-In/Out management with full state machine workflow
• Real-time status updates via event history
• SOA/ENUM XML message tracking
• Centralised routing database for ENUM (IMS) and MAP/INAP/CAP (All Call Query)
• Manual routing override

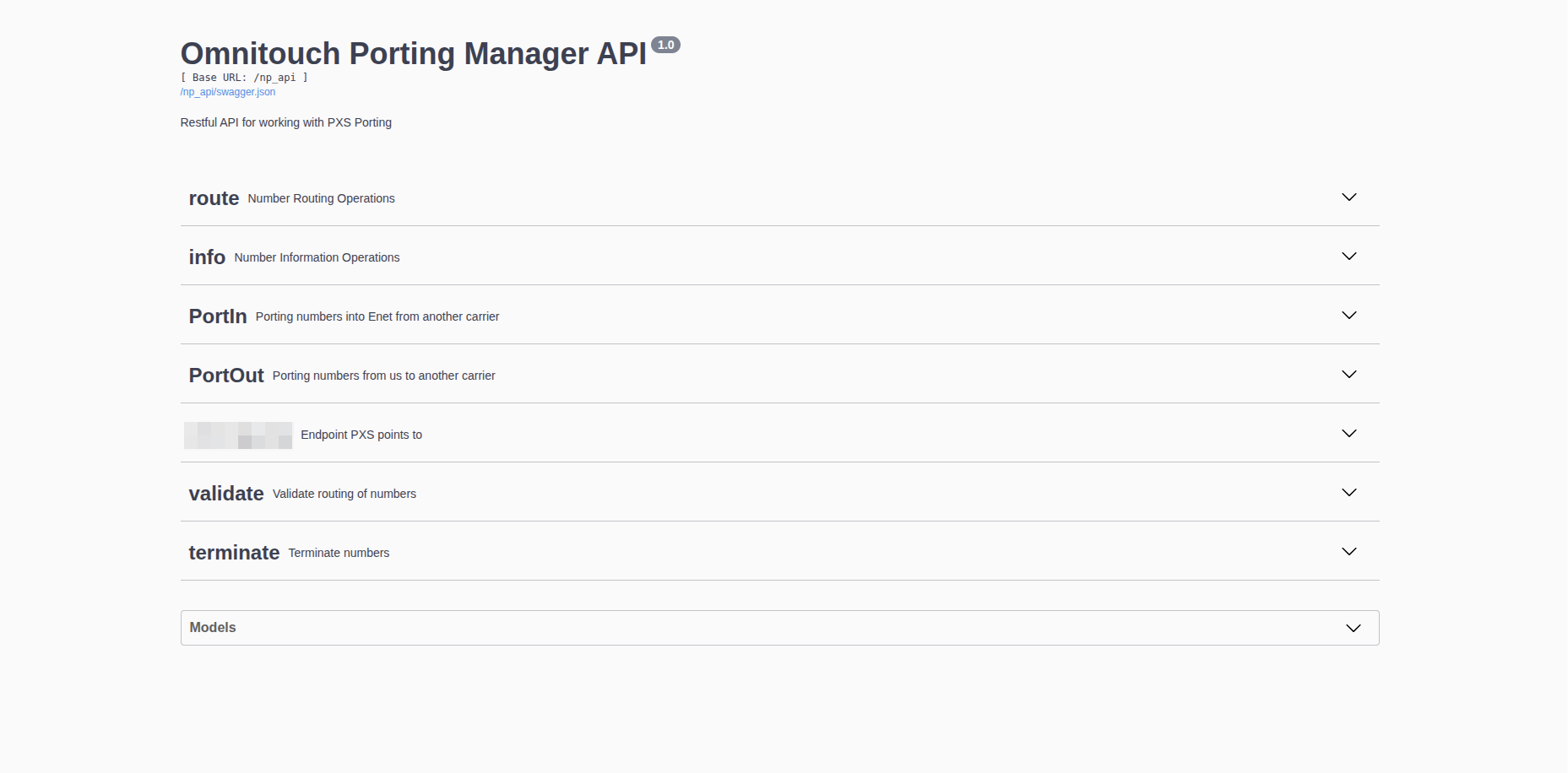

API Endpoints:

Method	Endpoint	Description

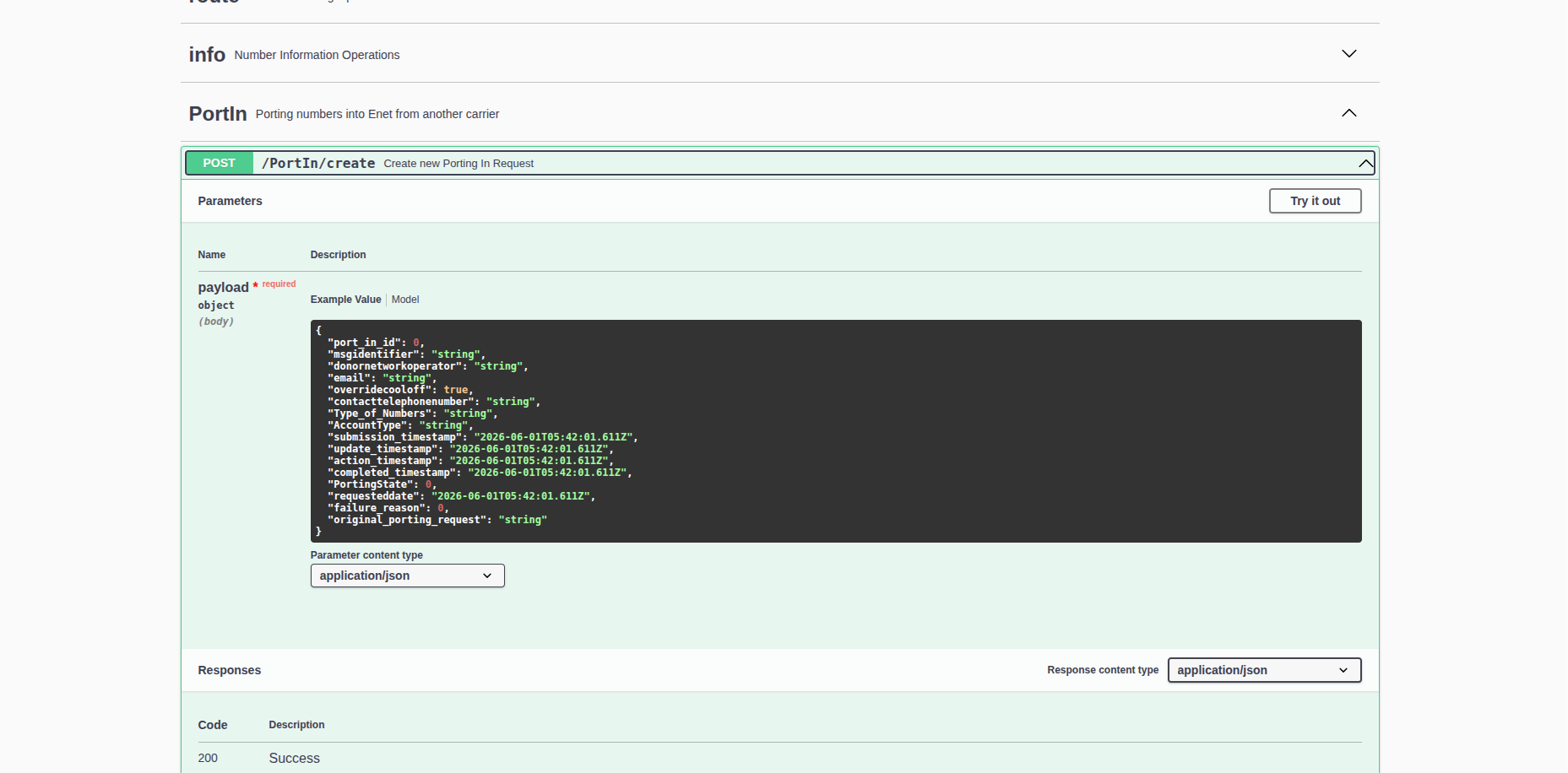

POST	/PortIn/create	Submit new port-in request
GET	/PortIn/list	List all port-in requests
GET	/PortIn/{msgidentifier}	Get event history
POST	/PortIn/{msgidentifier}	Send instruction to proceed
DELETE	/PortIn/{msgidentifier}	Abort port request
GET	/PortOut/list	List port-out requests
POST	/PortOut/{msgidentifier}	Authorise port-out
DELETE	/PortOut/{msgidentifier}	Reject port-out
GET	/route/{phone_number}	Query current routing
POST	/route/{msisdn}/{operator}/{type}	Update routing manually

Operator codes, number format, and account types are configured per deployment.

NPAC

For US operations, Omnitouch Porting Manager integrates with the Number Portability Administration Center (NPAC):

• NPAC Service Order (SO) creation and management
• Local Service Provider (LSP) interactions
• Subscription Version (SV) management
• Real-time status synchronisation
• Compliance with US porting regulations and timelines

---

DNS / ENUM Server

The DNS server provides comprehensive DNS services for telecommunications networks, supporting standard packet services, roaming scenarios, IMS, and number portability call routing.

3GPP Network Zones

EPC Zone (epc.mncXXX.mccYYY.3gppnetwork.org) — Used for local Diameter signalling and roaming scenarios. Enables visited networks to discover local PGW resources. Contains SRV and NAPTR records for Diameter peer discovery.

IMS Zone (ims.mncXXX.mccYYY.3gppnetwork.org) — Supports IP Multimedia Subsystem operations. Routes SIP signalling and locates CSCF resources for IMS subscribers. Supports VoLTE and RCS.

Public 3GPP Zone (mncXXX.mccYYY.pub.3gppnetwork.org) — Provides external access to subscriber-facing services: XCAP server discovery, BSF location for GBA, and ePDG discovery for VoWiFi.

ENUM for Number Portability

The DNS server implements RFC 3761 ENUM services using the e164enum.net zone.

All-Call-Query (ACQ): Every call queries the ENUM database to determine current routing.

ENUM Query Flow:

1. Calling system extracts dialled number (e.g. +1-555-0100)
2. Number converted to ENUM format (0.0.1.0.5.5.5.1.e164.arpa)
3. DNS NAPTR query issued to the ENUM server
4. Server returns routing information: carrier identifier, routing number (RN), service provider, custom routing tags

OmniCall — Omnitouch's IMS and MSC platform — handles the ENUM ACQ flow out of the box. No additional integration work is required; OmniCall queries the ENUM server on every call and routes based on the NAPTR response. For operators running OmniCall alongside Omnitouch Porting Manager, ported number routing is correct from the moment a port completes, with no manual intervention or separate routing table maintenance required.

Routing Approach for Ported Numbers

The approach defined in RFC 4694 and adopted by 3GPP in TS 23.228 §4.18 for IMS is All-Call-Query against an ENUM database. Every call queries ENUM for the current routing of the specific dialled number, and the response carries the serving carrier's routing number directly. This is how number portability is meant to work in an IMS network — routing decisions based on real-time per-number data, not range tables that require manual maintenance and drift out of date as numbers port and port again.

Omnitouch Porting Manager implements this fully. When a port completes, NAPTR records are pushed to the ENUM server automatically for every number in the range. The response carries two parameters:

• rn — the routing number of the current serving carrier. The originating switch routes to this, not the dialled number's original carrier.
• npdi — signals the NP lookup is done. Downstream nodes must not re-query, which prevents loops.

When a port completes, Omnitouch Porting Manager automatically pushes a NAPTR record to the ENUM server for every number in the ported range:

0.0.1.0.5.5.5.1.e164.arpa. NAPTR 10 10 "u" "E2U+pstn:tel"
  "!(^.*$)!sip:\1;npdi;rn=<routing_number>@<carrier_ims_domain>!"

For non-ported numbers, npdi is set without rn — confirming the lookup ran and the number hasn't moved. Either way, the originating IMS core (S-CSCF/BGCF) gets a definitive answer from DNS and routes without any further database dip.

Routing stays correct through multiple ports without any manual intervention. The ENUM server is always the single source of truth.

---

Charging Platform Integration

Port-In

When a number is successfully ported in:

1. Gateway sends activation notification to charging platform
2. Charging platform creates subscriber account and rating profiles
3. Recurring charges and usage rating begin immediately
4. First invoice may be prorated based on port completion date

Port-Out

When a number is ported out:

1. Gateway sends deactivation notification to charging platform
2. Real-time charging stops at the scheduled port time
3. Final bill generated: prorated recurring charges, outstanding usage, early termination fees (if applicable), credits/refunds
4. Subscriber account closed with porting reason code

---

Operational Workflows

Daily Operations

1. Morning Status Review — Check overnight porting activities and clearinghouse updates
2. Action Item Processing — Handle pending approvals and customer confirmations
3. Error Resolution — Investigate and resolve failed or rejected ports
4. Customer Communication — Coordinate with customers on upcoming port dates

Monitoring

Omnitouch Porting Manager provides automated monitoring for:

• Clearinghouse API connectivity
• ENUM provisioning failures
• CRM synchronisation errors
• Charging platform integration failures
• Abnormal porting rejection rates

Compliance and Auditing

• All porting activities logged with full audit trails
• Compliance with regulatory porting timelines
• Inter-carrier communication records retained
• Financial reconciliation with clearinghouse fees

Common Issues

Port stuck in pending state — Check clearinghouse API connectivity, verify customer information, review event log for rejection reason.

Routing not updated after port — Confirm port state is Number_Ported. Use Routing Query to check current state. Use Push Routing to correct manually if needed.

SMS validation failures — Expand the result row to collect the message ID and transaction ID. Provide these to the CPaaS provider when escalating.

---

User Guide

Getting Started

Access is controlled by an API key. On first load you will be prompted with an Enter API Key modal. Enter your assigned API key and click Save Changes. Credentials are stored in browser localStorage and persist between sessions. To update your key at any time, click Change API Key in the top-right of the navigation bar.

Your account tier determines which features are available:

Tier	Access
Admin	Full access to all features
PXS User	Port IN/OUT management and routing
Read Only	Routing queries and SMS validation only

Navigation

Porting Request — Submit a new port-in request

Port IN — View and manage all port-in requests

Port OUT — Review and respond to port-out requests from other carriers

Routing Query — Look up the current routing for any number

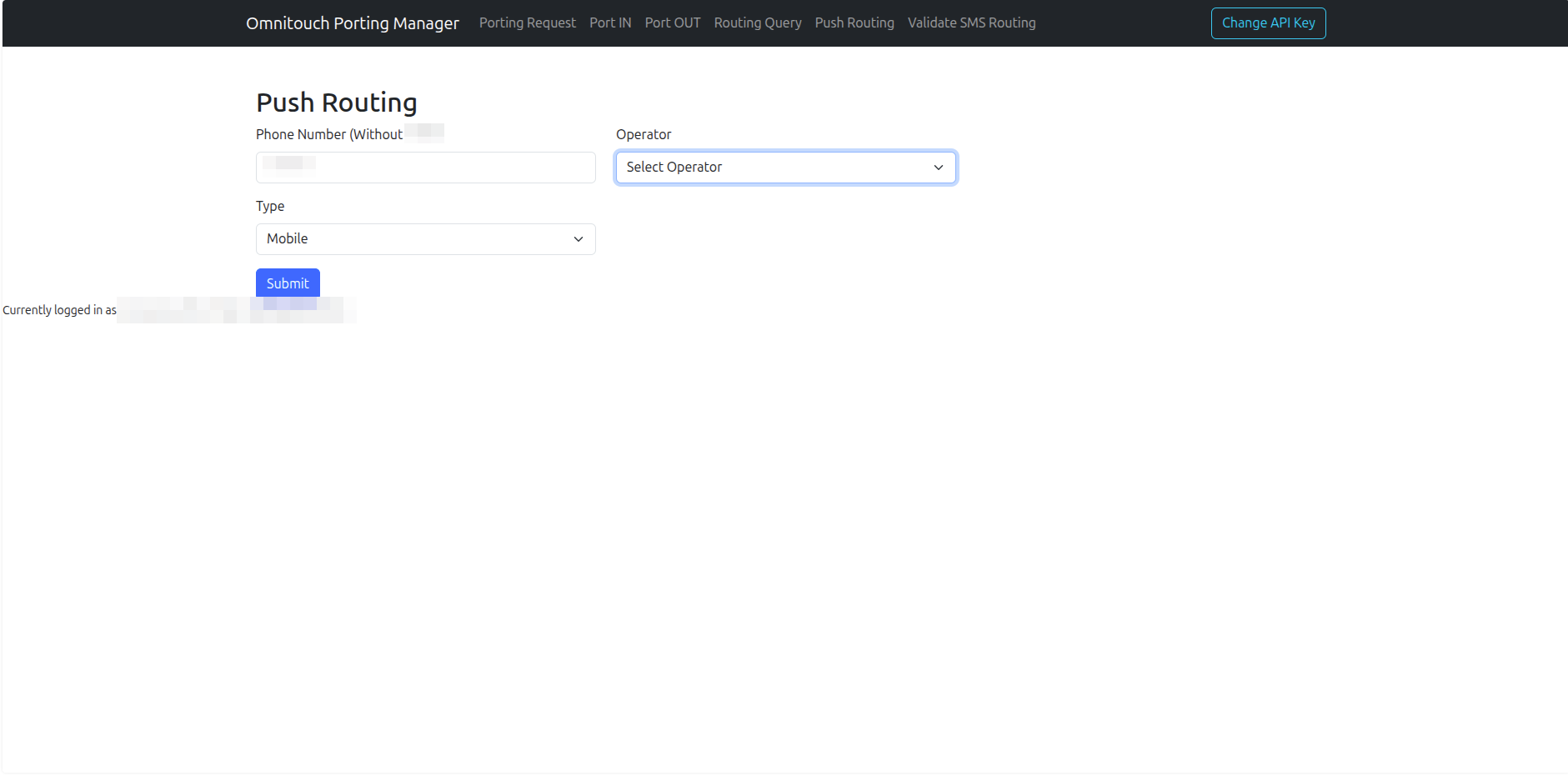

Push Routing — Manually provision a routing record

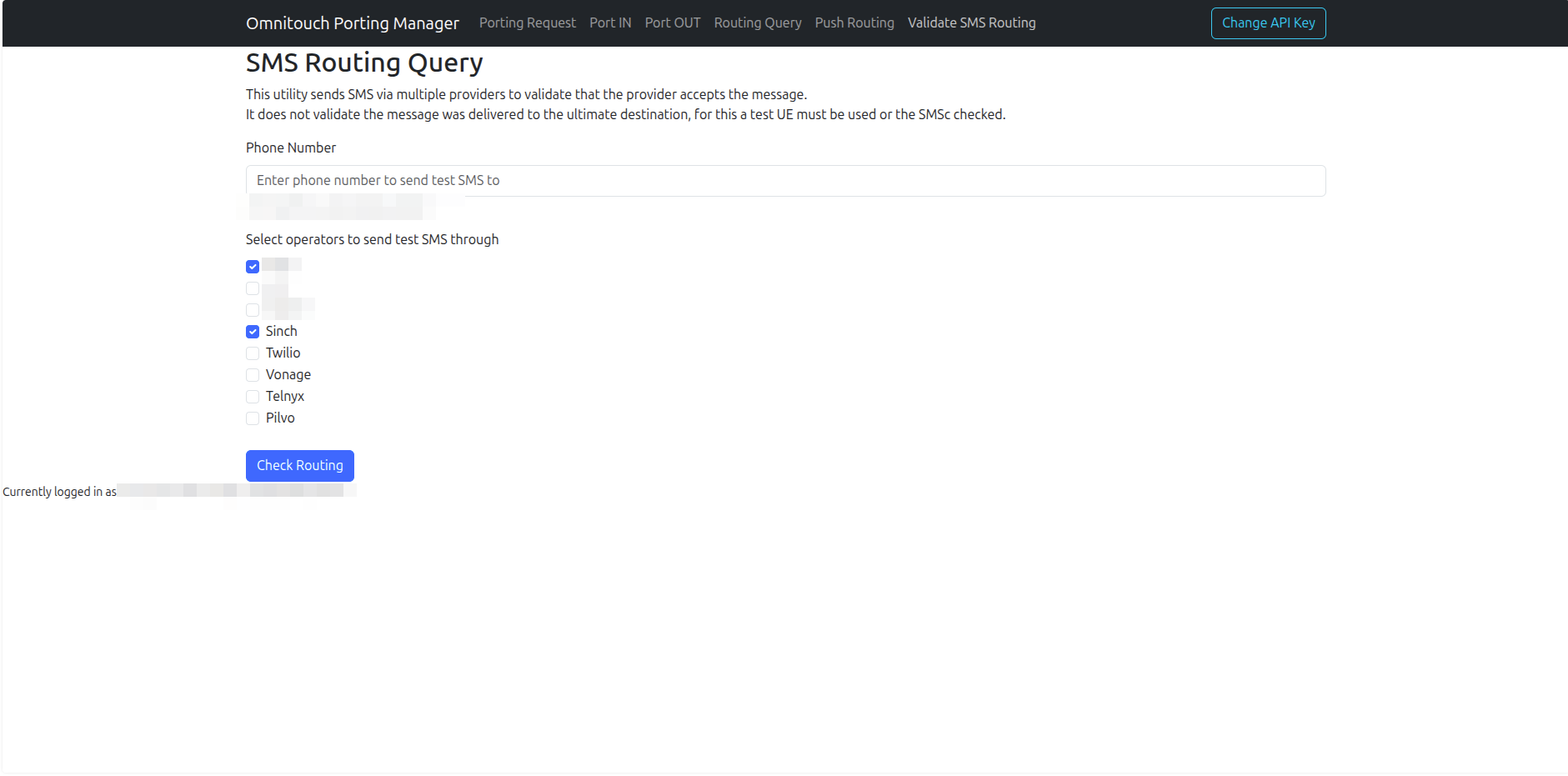

Validate SMS Routing — Send test SMS messages through multiple CPaaS providers

Change API Key — Update your credentials (button, top right)

---

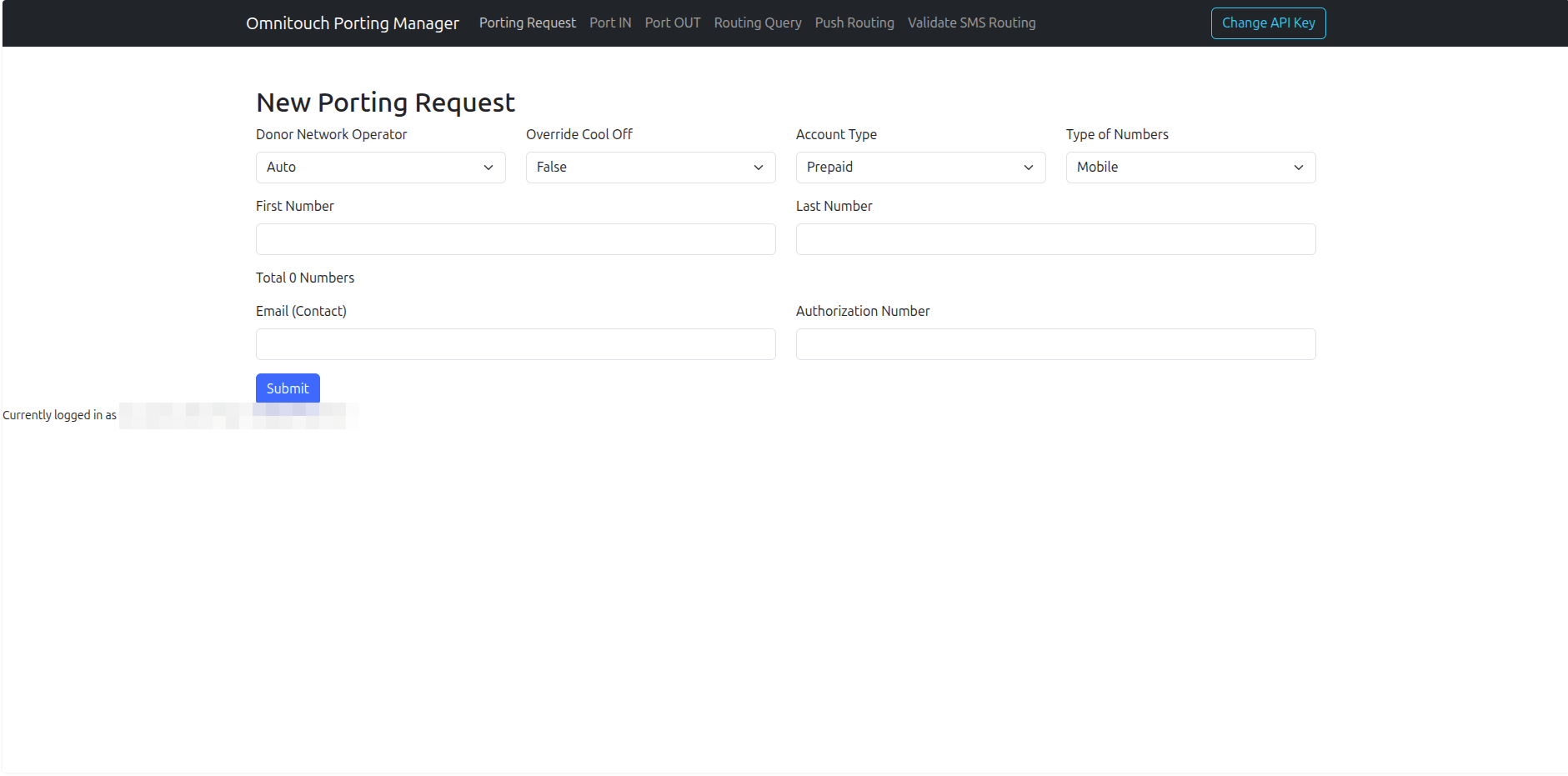

New Porting Request

Click Porting Request in the navigation to open the submission form.

Field	Description
Donor Network Operator	Operator code of the donor carrier. Select Auto for automatic detection from the number range.
Override Cool Off	Set to True only when the customer has explicitly waived the cool-off period. Default: False.
Account Type	Prepaid or Postpaid
Type of Numbers	Mobile or Fixed
First Number	Start of the number range (local format, without country code)
Last Number	End of the range — same as First Number for a single number port
Total Numbers	Calculated automatically
Email (Contact)	Contact email for this request
Authorization Number	Customer authorisation number — auto-fills from First Number if left blank

Click Submit to create the request. A success message will display the assigned message identifier.

---

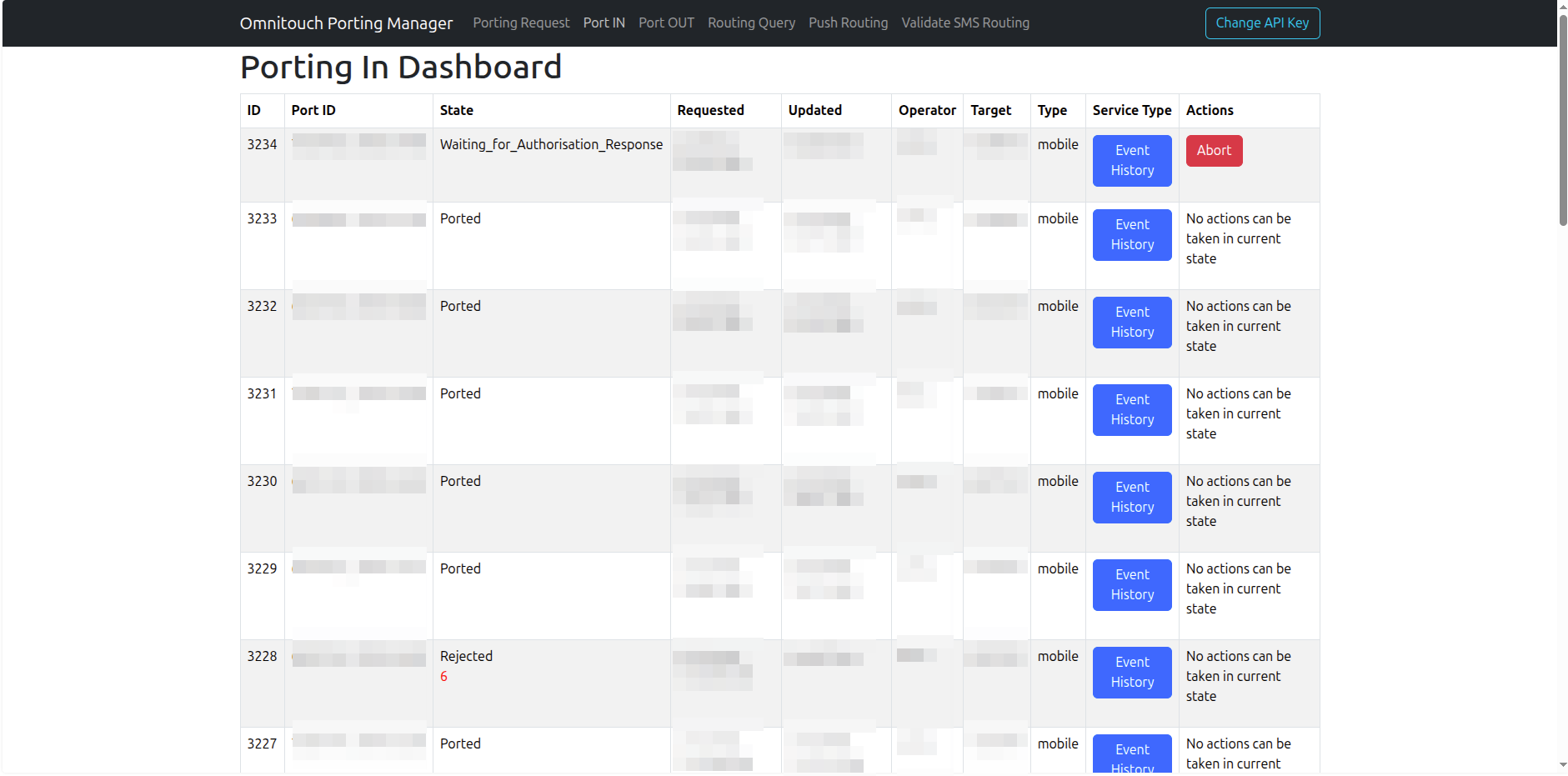

Port IN Dashboard

Column	Description
ID	Internal database ID
Port ID	Clearinghouse message identifier
State	Current porting state
Requested	Submission timestamp
Updated	Last update timestamp
Operator	Donor network operator code
Target	Contact/authorisation number
Type	Mobile or Fixed
Service Type	Event History button
Actions	State-dependent action buttons

Where a port has been resubmitted (e.g. after an account type mismatch), the original port ID is shown in green. Where a port has been rejected, the rejection reason is shown in red.

Port-In States:

State	Meaning
Waiting_for_Authorisation_Response	Request submitted, awaiting donor response
Waiting_for_Instruction	Donor authorised — confirm to proceed
Waiting_for_Instruction_Response	Instruction sent, awaiting acknowledgement
Waiting_for_Ported_Response	Port execution in progress
Number_Ported / Number_Ported_Complete	Port complete, routing updated
Aborted	Cancelled
Rejected	Donor rejected the request
TimeOut	Request timed out

Actions:

• Waiting_for_Authorisation_Response — Abort button (red) cancels the request
• Waiting_for_Instruction — Instruction button (green) confirms the port should proceed

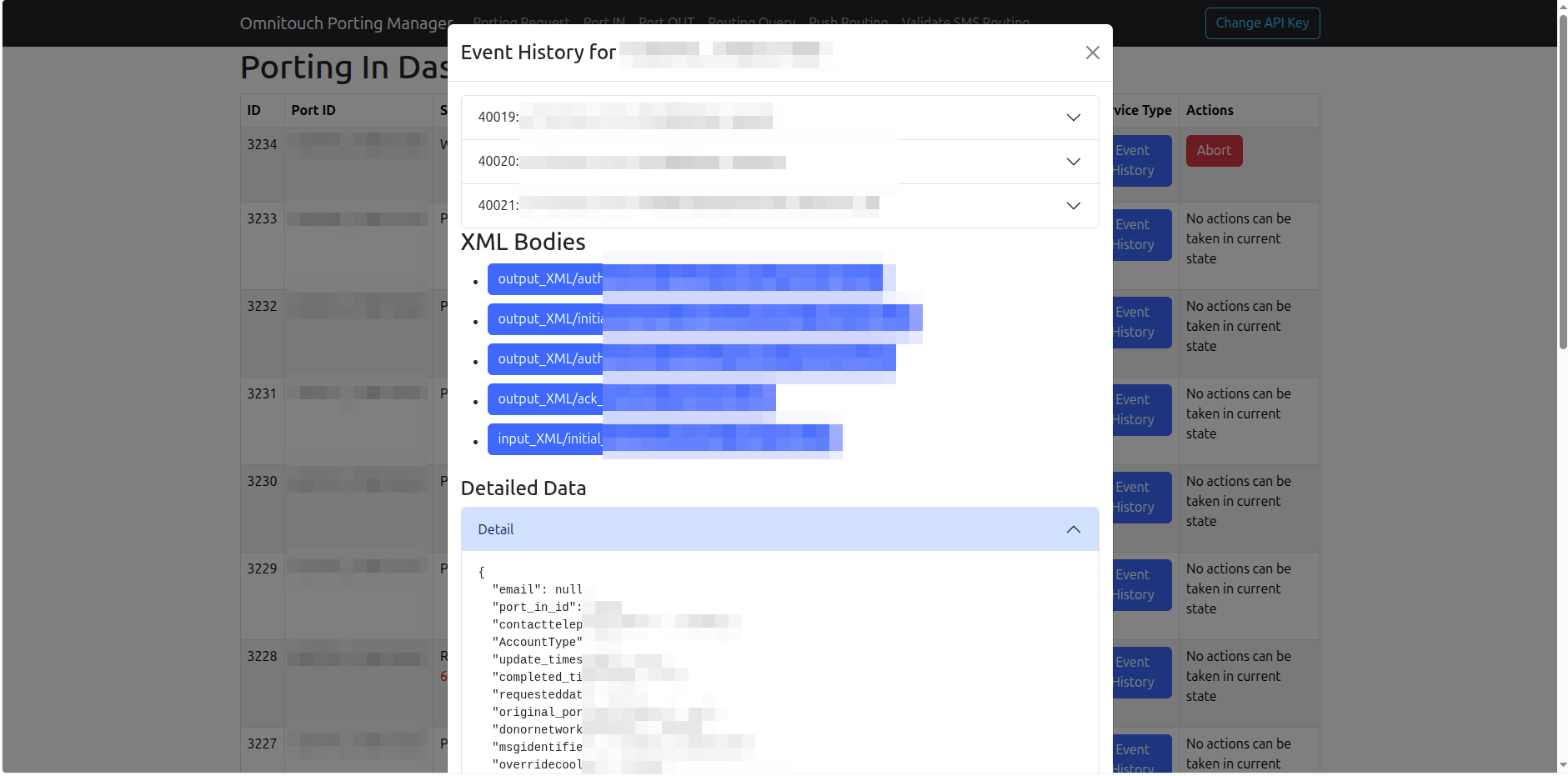

Event History:

Click Event History on any row to open the event log modal.

• Events — accordion list of each state transition with event type and log detail
• XML Bodies — download links for all SOA/ENUM XML messages, split into outbound (Output_XML) and inbound (Input_XML)
• Detailed Data — full JSON dump of the port record

---

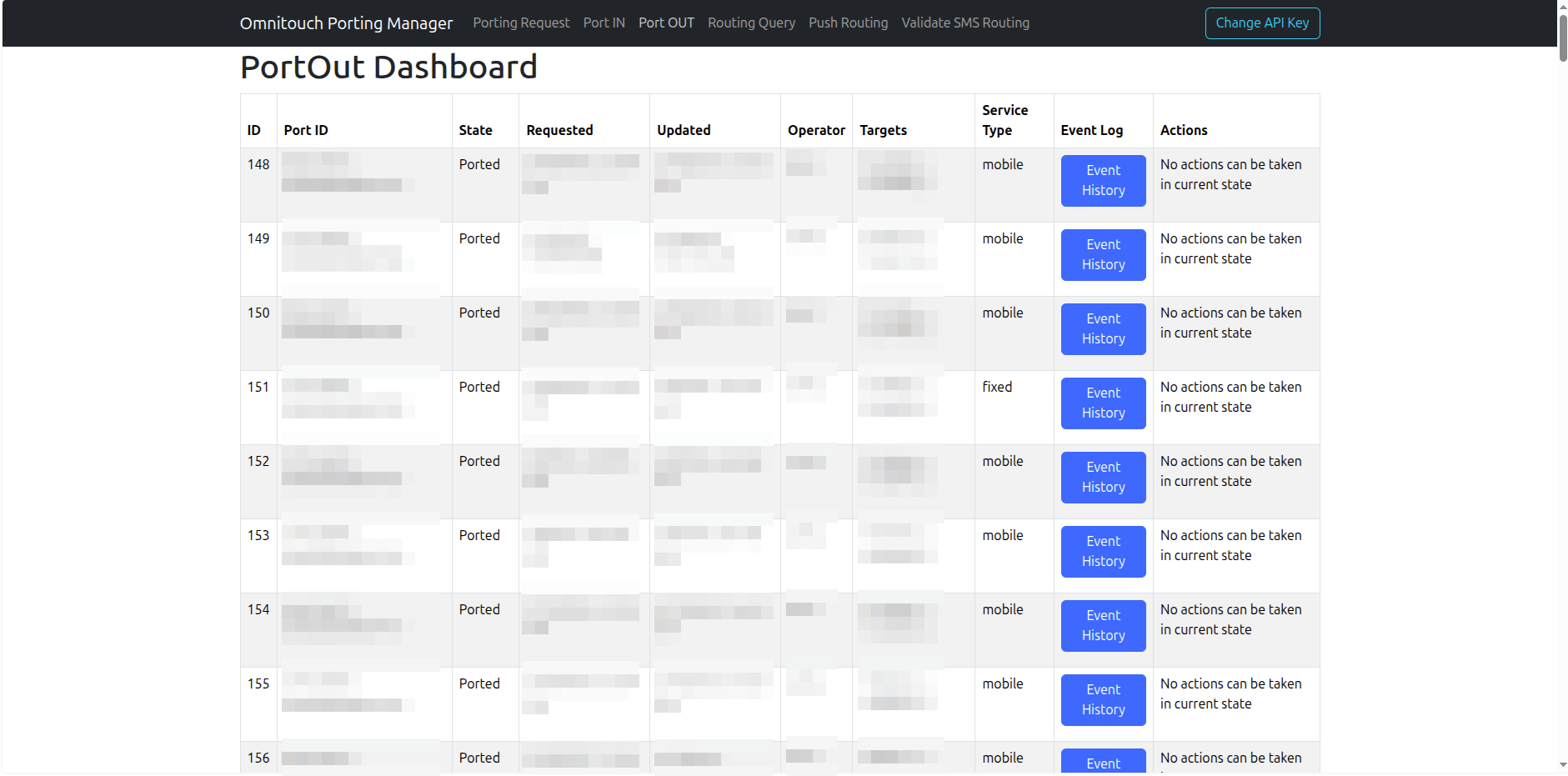

Port OUT Dashboard

Column	Description
ID	Internal database ID
Port ID	Clearinghouse message identifier
State	Current porting state
Requested	Submission timestamp
Updated	Last update timestamp
Operator	Recipient (gaining) operator code
Targets	Number ranges being ported out
Service Type	Event Log button
Actions	Authorise or Reject buttons

Actions (Waiting_for_Authorisation_Response):

• Authorise (green) — Approves the port-out and notifies the gaining carrier
• Reject (red) — Denies the request. Only use for legitimate reasons: account mismatch, outstanding balance, fraudulent request, or number not active.

Click Event Log on any row to view the full message exchange.

---

Routing Query

Enter the local number (country code added automatically) and click Check Routing.

The response is the raw CGrateS ProcessEvent result:

Field	Description
Event.E164Address	The queried number
Event.NAPTRAddress	NAPTR routing string — IMS domain or routing number
Event.NAPTROrder	NAPTR order value
Event.NAPTRPreference	NAPTR preference value
MatchedProfiles	CGrateS attribute profile matched for this number

---

Push Routing

Field	Description
Phone Number (Without country code)	Local number — country code added automatically
Operator	Operator code to route this number to
Type	Mobile or Fixed

Use for emergency corrections, initial provisioning, or when automatic post-port routing fails.

---

Validate SMS Routing

The primary use case for this tool is validating that A2P (application-to-person) SMS messages from external CPaaS providers route correctly to ported numbers. When a number is ported, the new carrier must be correctly provisioned in each provider's routing tables — this doesn't always happen automatically, and without a tool like this there's no easy way to detect the gap.

By sending a test message from each provider to a ported number, you can confirm which providers have updated their routing and which haven't. Providers that return an error or fail to deliver can be escalated directly using the debug information in the result.

Validates that the provider accepted the message submission — does not confirm delivery to the handset. Use a test device or SMSc log check to confirm delivery.

1. Enter the target phone number (typically a recently ported number under test)
2. Select one or more A2P providers to test through
3. Click Check Routing

The target number will receive an SMS from each selected provider with the body Test from {ProviderName}. Results show green (accepted) or red (error). Click any result row to expand debug information — required when escalating routing issues to CPaaS providers.

Available Providers:

Provider	Notes
Enet	Native platform SMPP delivery
GTT	Carrier direct
Digicel	Carrier direct
Sinch	CPaaS provider
Twilio	Omnitouch has direct escalation contact
Vonage	Omnitouch has direct escalation contact
Telnyx	Omnitouch client — direct team contact
Pilvo	Omnitouch has direct escalation contact

---

Swagger / API Explorer

Omnitouch Porting Manager exposes a live Swagger UI at /np_api/doc.

The OpenAPI schema is available at /np_api/swagger.json for import into Postman or other API tools.

---

API Reference

Base URL

/np_api/

Interactive documentation available at /np_api/doc.

Authentication

See the Administrator Guide for authentication setup and credential management.

Tier	Capabilities
admin	Full access to all endpoints
pxs	Port IN/OUT management and routing
read_only	Validation and number info endpoints only

---

Port-In Endpoints

Create Port-In Request

POST /np_api/PortIn/create — Auth: admin, pxs

Field	Type	Required	Description
donornetworkoperator	string	No	Donor operator code — leave blank for auto-detection
email	string	Yes	Contact email
overridecooloff	boolean	No	Skip the regulatory cool-off period (default: false)
contacttelephonenumber	string	Yes	Customer authorisation number
Type_of_Numbers	string	Yes	"mobile" or "fixed"
telephonenumberseriestart	string	Yes	First number in the range
telephonenumberserieend	string	Yes	Last number in the range
AccountType	string	Yes	"Prepaid" or "Postpaid"
PortingState	integer	No	Initial state override (default: 0)

curl -X POST https://your-host/np_api/PortIn/create \
  -u "your_username:your_api_key" \
  -H "Content-Type: application/json" \
  -d '{
    "donornetworkoperator": "DONOR",
    "email": "ops@example.com",
    "overridecooloff": false,
    "contacttelephonenumber": "5550100",
    "Type_of_Numbers": "mobile",
    "telephonenumberseriestart": "5550100",
    "telephonenumberserieend": "5550199",
    "AccountType": "Prepaid"
  }'

Response:

{
  "result": "success",
  "msgidentifier": "XX202501-CARR-00001",
  "message": "Port-in request created successfully"
}

List Port-In Requests

GET /np_api/PortIn/list — Auth: admin, pxs

Returns up to 30 records ordered by most recent.

Get Port-In Request

GET /np_api/PortIn/{msgidentifier} — Auth: admin, pxs

Returns the full record including event history and number ranges. If superseded by a resubmission, transparently returns the newer record.

Response shape:

{
  "port_in_id": 42,
  "msgidentifier": "XX202501-CARR-00001",
  "PortingState": 2,
  "PortingStateString": "Waiting_for_Instruction",
  "donornetworkoperator": "DONOR",
  "email": "ops@example.com",
  "contacttelephonenumber": "5550100",
  "Type_of_Numbers": "mobile",
  "AccountType": "Prepaid",
  "overridecooloff": false,
  "submission_timestamp": "2025-01-15T10:30:00",
  "update_timestamp": "2025-01-15T14:22:00",
  "failure_reason": null,
  "original_porting_request": null,
  "phone_number_ranges": [
    { "telephonenumberseriestart": "5550100", "telephonenumberserieend": "5550199" }
  ],
  "events": [
    {
      "porting_in_event_id": 1,
      "msgtype": "PortingRequest",
      "direction": 0,
      "eventlog": "Submitted to clearinghouse",
      "submission_timestamp": "2025-01-15T10:30:00Z"
    }
  ]
}

Porting state values:

Value	State
0	NoPort
1	Waiting_for_Authorisation_Response
2	Waiting_for_Instruction
3	Waiting_for_Instruction_Response
10	Waiting_for_Ported_Response
11	Waiting_for_Change_Response
20	Number_Ported
30	Number_Ported_Complete
97	TimeOut
98	Aborted
99	Rejected

Rejection reason codes (failure_reason):

Code	Reason
0	Unknown
31	Account Suspended
32	Account Problem
33	Bill Problem
34	Deposit Exceeded
35	Incorrect Account Type
36	Reported Stolen or Lost
37	Special
38	No Cooling Off (Repatriation)
39	Prepaid Bill Problem
99	General Rejection

Send Instruction (Confirm Port)

POST /np_api/PortIn/{msgidentifier} — Auth: admin, pxs

Confirms the port should proceed. Only valid when PortingState is Waiting_for_Instruction (2).

Abort Port-In

DELETE /np_api/PortIn/{msgidentifier} — Auth: admin, pxs

Cancels a port-in. Valid in states: Waiting_for_Authorisation_Response, Waiting_for_Instruction, Waiting_for_Authorisation.

List XML Files

GET /np_api/PortIn/get_xml_list/{msgidentifier} — Auth: admin, pxs

Returns array of XML filenames for a port.

Download XML File

GET /np_api/PortIn/get_xml/{folder}/{filename} — Auth: admin, pxs

folder is output_XML (sent) or input_XML (received).

---

Port-Out Endpoints

List Port-Out Requests

GET /np_api/PortOut/list — Auth: admin, pxs

Get Port-Out Request

GET /np_api/PortOut/{msgidentifier} — Auth: admin, pxs

Response shape:

{
  "port_out_id": 99,
  "msgidentifier": "XX202501-DONOR-00001",
  "PortingState": 1,
  "PortingStateString": "Waiting_for_Authorisation_Response",
  "recipientnetworkoperator": "DONOR",
  "Type_of_Numbers": "mobile",
  "submission_timestamp": "2025-01-16T09:15:00",
  "update_timestamp": "2025-01-16T09:15:00",
  "phone_number_ranges": [
    { "telephonenumberseriestart": "5550200", "telephonenumberserieend": "5550249" }
  ],
  "events": []
}

Authorise Port-Out

POST /np_api/PortOut/{msgidentifier} — Auth: admin, pxs

Approves the port-out and notifies the gaining carrier.

Reject Port-Out

DELETE /np_api/PortOut/{msgidentifier} — Auth: admin, pxs

Rejects the port-out. Use only for legitimate reasons: account mismatch, outstanding balance, fraudulent request, or number not active.

---

Routing Endpoints

Query Number Routing

GET /np_api/route/{msisdn} — Auth: admin, pxs

Returns CGrateS routing record including NAPTR address, order, preference, and HSS subscription data. msisdn is the full E.164 number without the leading +.

Push Routing Update

POST /np_api/route/{msisdn}/{operator}/{type} — Auth: admin, pxs

Manually provisions a routing record. operator is deployment-specific. type is mobile or fixed.

Delete Routing Record

DELETE /np_api/route/{msisdn} — Auth: admin, pxs

Removes a routing record.

Query HSS Only

GET /np_api/route/hss_route/{msisdn} — Auth: admin, pxs

Returns HSS subscription data only, without the routing database lookup.

---

Validation Endpoints

SMS Routing Validation

POST /np_api/validate/sms_validate — Auth: admin, pxs, read_only

Sends a test SMS via a specified CPaaS provider. Country code prefix added automatically.

Field	Type	Description
phone_number	string	Target number
Operator	string	Enet, GTT, Digicel, Sinch, Twilio, Vonage, Telnyx, Pilvo, ClickSend
apiKey	string	Provider API key (if required)

Response:

{
  "result": "Sent",
  "x-message-id": "SM1234567890abcdef",
  "x-transaction-id": "8a2c925809bb403f01",
  "x-message-timestamp": "2025-01-15T10:30:00.000Z",
  "x-provider": "Twilio",
  "x-provider-response": "..."
}

---

Number Info

GET /np_api/info/{msisdn} — Auth: admin, pxs, read_only

Queries the clearinghouse for number information. Returns raw clearinghouse response as JSON.

---

Terminate Number

DELETE /np_api/terminate/{msisdn}/{type_of_numbers} — Auth: admin, pxs

Submits a termination request to the clearinghouse and removes the routing record. type_of_numbers is mobile or fixed.

---

Clearinghouse XML Receiver

POST /np_api/{deployment_prefix}/recv/ — Auth: pxs (clearinghouse credentials)

Internal endpoint used by the clearinghouse to deliver inbound XML messages. Not for direct use. Deployment prefix is configured per installation.

Message Type	Action
authorisation_request	Creates a new port-out record
authorisation_response	Updates port-in state; retries with toggled account type on code 35
instruction_response	Advances port-in to Waiting_for_Ported_Response
ported	Marks port complete, updates routing database, sends welcome notification
timedout	Sets state to TimeOut
terminated	Removes routing record

---

Error Responses

{
  "result": "Exception raised in ...",
  "Reason": "error details"
}

Status	Meaning
200	Success
401	Authentication failed
403	File not found (XML download)
500	Internal error — check Reason field
