Service Usage and Balance Tracking

The Service Usage system provides real-time monitoring of customer consumption for data, voice, SMS, and monetary balances. This feature integrates with the OCS (Online Charging System) to display current usage, remaining allowances, and balance expiry information to both customers (via Self-Care Portal ) and staff.

Overview

Usage tracking enables:

Real-time Balance Display - View current usage and remaining allowances
Multiple Balance Types - Track data, voice, SMS, and monetary balances simultaneously
Expiry Monitoring - See when balances expire
Balance Breakdown - Detailed view of individual balance buckets
Auto-Refresh - Usage updates every 3 seconds automatically

Accessing Service Usage

From Service List:

Navigate to Services → Service List
Click the actions menu (⋮) next to a service
Select "Usage"

From Service Details:

Open a service's detail page
Click the "Usage" tab

From Customer Page:

Open customer overview
Navigate to Services tab
Click "View Usage" next to any service

The usage modal or page opens showing real-time consumption data.

Usage Display

The usage interface shows summary cards and detailed progress bars for each balance type.

Service Usage Display

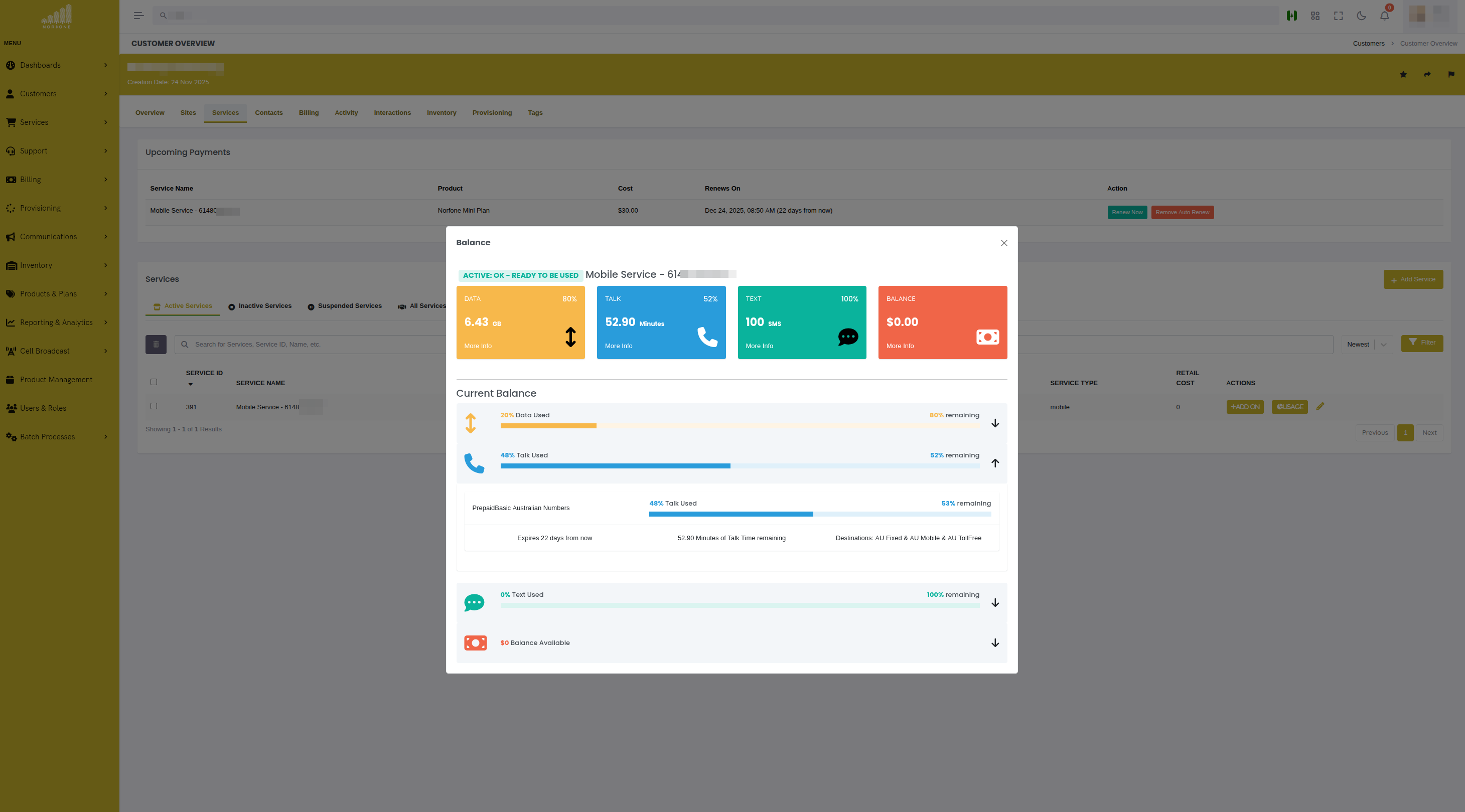

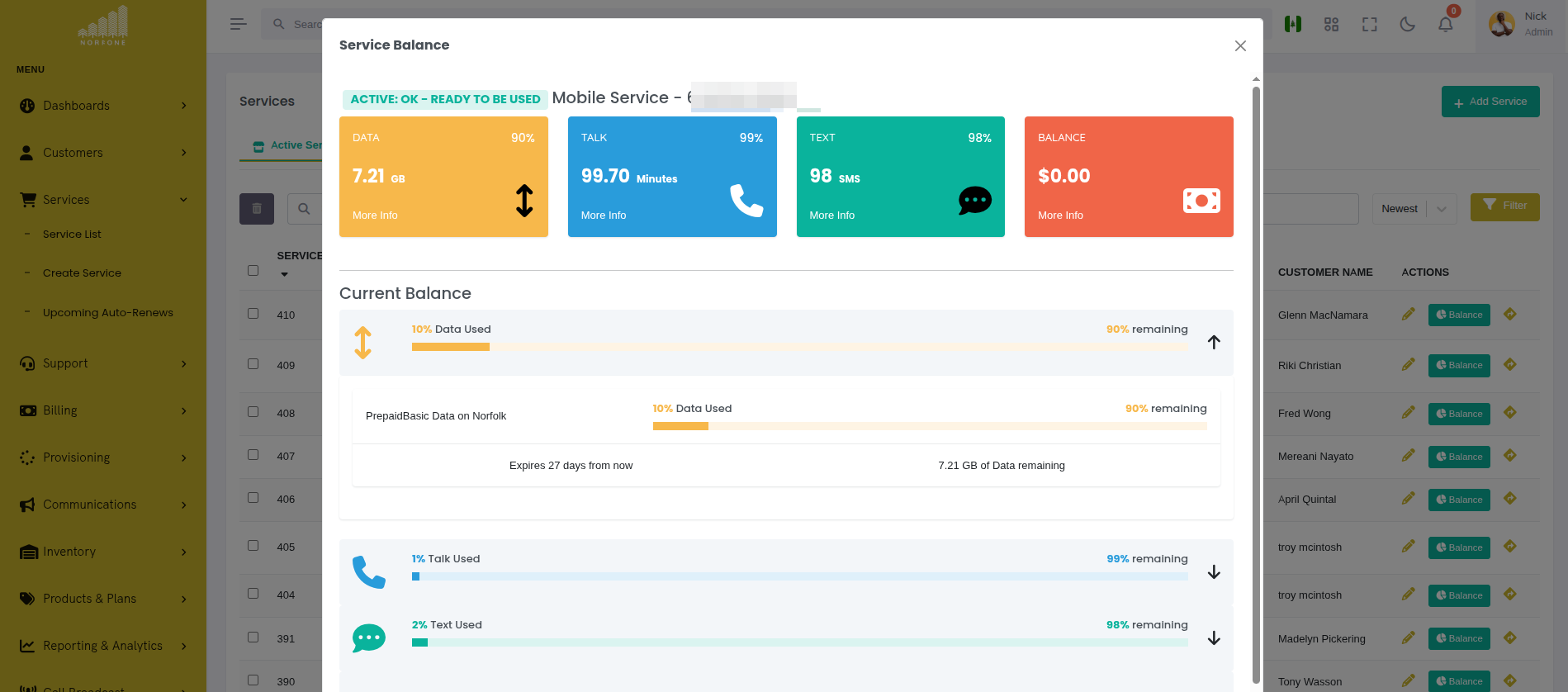

Service Balance Modal {.align-center width="800px"}

Summary Cards

Top row displays quick-view cards for each balance type:

Card Information:

Balance Type - Icon and label (Data, Voice, SMS, Monetary)
Remaining Amount - Current balance in appropriate units
Expiry Time - Days/hours until balance expires
More Info Button - Click to expand detailed breakdown

Progress Bars

Below the cards, progress bars show consumption visually with filled portions indicating remaining balance.

Progress Bar Features:

Visual Indicator - Filled portion shows remaining balance
Percentage - Numeric percentage of balance remaining
Absolute Values - Shows used vs. total (e.g., "12.5GB / 20GB")
Color Coding:
- Green: >50% remaining
- Yellow: 20-50% remaining
- Red: <20% remaining
Clickable - Click to expand detailed breakdown

Balance Types

Data Balance

Tracks internet data consumption.

Units: Gigabytes (GB) or Megabytes (MB)

Display Format:

Progress: 12.5GB / 20GB (62%)

Common Scenarios:

Mobile data plans - 5GB, 10GB, 20GB monthly allowances
Fixed wireless - Unlimited or capped at high amounts (500GB, 1TB)
Top-ups - Additional data purchased mid-cycle
Dongle services - Prepaid data for hotspot devices

Multiple Buckets:

Services often have multiple data balances:

Monthly allowance (expires monthly)
Bonus data (expires after campaign period)
Top-up data (shorter expiry, consumed first)

Voice Balance

Tracks phone call minutes.

Units: Minutes (min)

Display Format:

Progress: 125 min / 500 min (25%)

Call Duration Tracking:

Incoming calls (if charged)
Outgoing calls
International calls (separate bucket if applicable)
Premium numbers

Calculation:

Voice usage is calculated by call duration in nanoseconds internally, converted to minutes for display.

SMS Balance

Tracks text message usage.

Units: Messages (msgs)

Display Format:

Progress: 45 / 250 (18%)

Message Types:

Standard SMS (160 characters)
Long SMS (multiple segments)
MMS (if separately tracked)

Monetary Balance

Tracks prepaid credit or account balance.

Units: Currency (£, $, €, etc.)

Display Format:

Progress: £15.50 / £20.00 (77%)

Usage:

Prepaid accounts use monetary balance to pay for usage
Credit decrements as customer uses services
Can be topped up via payment or voucher
May expire if not used within validity period

Detailed Balance Breakdown

Click "More Info" on any card or click a progress bar to expand the detailed breakdown.

Expanded View:

📦 Monthly Allowance 20GB

: Remaining: 12.5 GB Used: 7.5 GB Expires: 25 Jan 2025 (15 days) Weight: 10

📦 Bonus Data 5GB

: Remaining: 5.0 GB Used: 0 GB Expires: 31 Jan 2025 (21 days) Weight: 20

📦 Top-Up Data 3GB

: Remaining: 0 GB Used: 3.0 GB Expires: 18 Jan 2025 (EXPIRED) Weight: 30

Total Remaining: 17.5 GB

Balance Bucket Fields:

ID/Name - Identifier for the balance bucket
Remaining - Amount left in this specific bucket
Used - Amount consumed from this bucket
Expiry Date - When this balance expires
Weight - Priority order (higher weight consumed first)

Weight System

Balances have a weight value that determines consumption order:

Higher weight = consumed first
Lower weight = consumed last

Example Weights:

Top-up data: Weight 30 (consumed first, shorter expiry)
Bonus data: Weight 20 (consumed second)
Monthly allowance: Weight 10 (consumed last, longest expiry)

This ensures that expiring balances are used before longer-lasting ones.

Real-Time Updates

Usage data refreshes automatically every 3 seconds via polling.

What Updates:

Current balance amounts
Usage progress bars
Expiry timers
Individual bucket details

User Experience:

No page reload required
Smooth updates without flicker
Loading overlay during refresh
Status badge shows current service state

Use Cases:

Monitor customer usage during call
Watch balance decrement in real-time as customer uses service
Verify top-up immediately after purchase

Usage in Different Service Types

Mobile Services

Display all four balance types:

Data (GB)
Voice (minutes)
SMS (messages)
Monetary (currency)

Example:

DATA: 12.5GB remaining VOICE: 125 min remaining SMS: 45 msgs remaining MONETARY: £15.50 remaining

Fixed Wireless / Internet

Typically shows only:

Data (GB or TB)
Monetary (if prepaid)

Example:

DATA: 450GB / 500GB remaining MONETARY: £45.00 (prepaid credit)

Hotspot / Dongle Services

Shows dongle-specific data tracking:

Data (consumed vs. prepaid)
Monetary (prepaid balance)

Display Mode:

When dongle=true, the component hides voice and SMS, showing only relevant data and monetary balances.

Troubleshooting

Usage showing as 0 / 0

Cause: Service not integrated with OCS or CGRateS
Fix:
- Verify service is provisioned in OCS
- Check OCS API connectivity
- Review service UUID mapping

Usage not updating

Cause: Polling stopped or OCS unreachable
Fix:
- Refresh the page
- Check browser console for errors
- Verify OCS API is online

Balances show incorrect amounts

Cause: OCS data mismatch or caching issue
Fix:
- Force OCS balance refresh
- Check for pending transactions
- Verify OCS configuration

Expiry dates missing

Cause: Balance has no expiry set
Fix:
- Some balances are set to never expire (unlimited validity)
- Check balance configuration in OCS

Multiple balances confusing

Cause: Multiple top-ups or bonus data added
Fix:
- Use detailed breakdown view to see all buckets
- Sort by weight to see consumption order
- Review individual expiry dates

Integration with OCS/CGRateS

Usage data comes from the OCS (Online Charging System), typically CGRateS.

Data Flow:

User opens usage view
OmniCRM calls GET /crm/service/{service_id}
API queries OCS via service UUID
OCS returns balance map:

{
  "BalanceMap": {
    "*data": [
      {
        "ID": "monthly_data_20GB",
        "Value": 13421772800,
        "ExpiryTime": "2025-01-25T23:59:59Z",
        "Weight": 10
      }
    ],
    "*voice": [
      {
        "ID": "monthly_voice_500min",
        "Value": 7500000000000,
        "ExpiryTime": "2025-01-25T23:59:59Z",
        "Weight": 10
      }
    ],
    "*sms": [
      {
        "ID": "monthly_sms_250",
        "Value": 250,
        "ExpiryTime": "2025-01-25T23:59:59Z",
        "Weight": 10
      }
    ],
    "*monetary": [
      {
        "ID": "prepaid_credit",
        "Value": 1550,
        "ExpiryTime": "2025-02-25T23:59:59Z",
        "Weight": 10
      }
    ]
  }
}

UI converts values to display units (bytes → GB, nanoseconds → minutes)
Progress bars and cards rendered
Polling continues every 3 seconds

OCS Balance Types Mapping:

The OCS returns balance data with type prefixes that map to UI display:

*data → DATA card (internet usage)
*voice → VOICE card (call minutes)
*sms → SMS card (text messages)
*monetary → MONETARY card (prepaid credit)

Each balance type can have multiple buckets (e.g., monthly allowance + bonus data + top-up data), all displayed in the detailed breakdown view.

Balance Value Conversions:

Data: Bytes → GB (divide by 1024³)
Voice: Nanoseconds → Minutes (divide by 60×10⁹)
SMS: Count (no conversion)
Monetary: Cents → Currency (divide by 100)

Auto-Renew and ActionPlans

Services with auto-renew enabled have ActionPlans scheduled in the OCS.

What are ActionPlans?

ActionPlans are scheduled tasks in CGRateS that automatically execute at specific times to:

Add balance to an account (auto top-up)
Renew monthly allowances
Apply recurring charges
Expire old balances

How Auto-Renew Works:

Service Provisioning:
- When service created with auto_renew = true
- Provisioning playbook creates ActionPlan in OCS
- ActionPlan configured to run monthly (or per billing cycle)
ActionPlan Configuration:

ActionPlan contains:
- Account ID - Service UUID
- Actions - What to do (add data, voice, SMS, monetary balance)
- Schedule - When to execute (e.g., monthly on 1st at 00:00 UTC)
- Amount - How much balance to add
Automatic Execution:
- OCS executes ActionPlan at scheduled time
- Adds balance to account (e.g., 20GB data, 500 minutes voice)
- Sets expiry date for new balance (e.g., 30 days)
- Customer charged via payment method on file
Viewing ActionPlans:
- Navigate to service details in OCS view
- ActionPlans listed with next execution time
- Shows: Plan name, next run date, action details

Example ActionPlan:

{
  "ActionPlanId": "ProductID_MonthlyPlan__ProductName_20GB_Mobile__ActionPlan_Monthly_Renew",
  "NextExecTime": "2025-02-01T00:00:00+00:00",
  "ActionName_hr": "Monthly Renew",
  "PlanName": "20GB Mobile",
  "ActionFrequency_hr": "Every MonthlyPlan",
  "custom_NextExecTime_hr": "in 22 days"
}

Managing Auto-Renew:

Enable - Set during service creation or modification
Disable - Remove ActionPlan from OCS (service keeps existing balance but won't auto-renew)
Modify - Change renewal amount or frequency via service modification

Manual Renewal:

If auto-renew disabled, customer must manually:

Top-up before balance expires
Or service suspends when balance depletes

Viewing in UI:

Services tab shows auto-renew status:

Next Renewal: 1 Feb 2025 (in 22 days) Renewal Amount: £15.00

Best Practices

For Support Staff:

Check usage before answering "Why is my service slow?" calls
Verify balance after top-ups to confirm success
Use detailed breakdown to identify expired buckets
Monitor high-usage customers to prevent overages

For Customers (Self-Care):

Check usage regularly to avoid running out
Top up before balance expires
Understand weight system to know which balance is consumed first
Contact support if usage seems incorrect

For Administrators:

Configure appropriate balance expiries
Set weight values to prioritize expiring balances
Monitor OCS connectivity for accurate reporting
Review balance configurations match product offerings

features_topup_recharge - Top-up system for adding balance
csa_service_management - Managing services
csa_modify - Adding add-ons to increase allowances
concepts_products_and_services - Product configuration

Overview​

Accessing Service Usage​

Usage Display​

Summary Cards​

Progress Bars​

Balance Types​

Data Balance​

Voice Balance​

SMS Balance​

Monetary Balance​

Detailed Balance Breakdown​

Weight System​

Real-Time Updates​

Usage in Different Service Types​

Mobile Services​

Fixed Wireless / Internet​

Hotspot / Dongle Services​

Troubleshooting​

Integration with OCS/CGRateS​

Auto-Renew and ActionPlans​

Best Practices​

Related Documentation​

Overview

Accessing Service Usage

Usage Display

Summary Cards

Progress Bars

Balance Types

Data Balance

Voice Balance

SMS Balance

Monetary Balance

Detailed Balance Breakdown

Weight System

Real-Time Updates

Usage in Different Service Types

Mobile Services

Fixed Wireless / Internet

Hotspot / Dongle Services

Troubleshooting

Integration with OCS/CGRateS

Auto-Renew and ActionPlans

Best Practices

Related Documentation
