Payment Methods Management

OmniCRM's Payment Methods system allows customers and staff to securely manage payment cards using Stripe integration. Payment methods enable automatic billing for services, one-time payments, and recurring charges without storing sensitive card data in OmniCRM.

See also: Stripe Integration , Billing Overview , Payment Processing , Invoices .

Overview​

The payment methods system provides:

  • Secure Card Storage - Cards tokenized by Stripe, never stored in OmniCRM
  • Multiple Cards - Customers can store multiple payment methods
  • Default Selection - Designate preferred payment method for automatic charges
  • Expiry Tracking - Monitor and update expiring cards
  • Self-Service - Customers can manage their own cards via Self-Care Portal
  • Staff Management - Support staff can add/remove cards on behalf of customers

Supported Payment Methods:

  • Credit Cards (Visa, Mastercard, American Express, Discover)
  • Debit Cards
  • Prepaid Cards (if supported by card network)

Not Stored in OmniCRM:

Card details are tokenized by Stripe and stored securely. OmniCRM only stores:

  • Card brand (Visa, Mastercard, etc.)
  • Last 4 digits
  • Expiry month/year
  • Cardholder name/nickname
  • Stripe token reference

Accessing Payment Methods​

From Customer Page:

  1. Navigate to Customers → [Select Customer]
  2. Click Billing tab
  3. Scroll to Payment Methods section

Or directly:

From Expiring Cards Dashboard:

View all customers with expiring cards:

This shows a system-wide list of cards expiring within the next 60 days.

Payment Methods List​

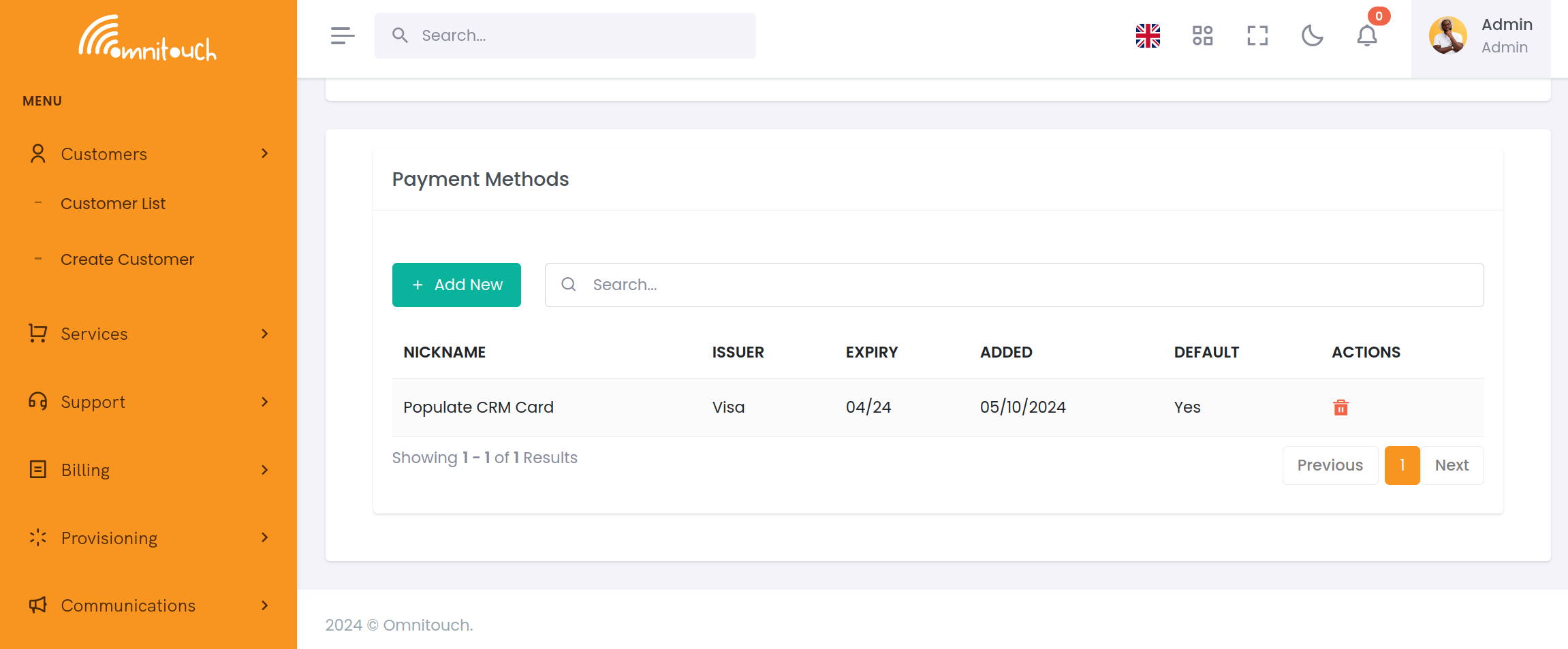

The payment methods table displays all stored cards for a customer:

Payment Methods List{.align-center width="800px"}

Column Descriptions:

  • Nickname - Friendly name for the card (e.g., "Personal Card", "Work Visa")
  • Issuer - Card brand and last 4 digits
  • Expiry - Expiration month/year (MM/YYYY format)
  • Added - Date card was added to account
  • Default - Checkmark indicates default payment method for automatic charges

Actions Per Card:

Each row has an actions menu (⋮) with options:

  • Set as Default - Make this the default payment method
  • Delete - Remove card from account

Adding a Payment Method​

Click "Add Payment Method" to open the Stripe payment modal.

Step 1: Enter Card Details​

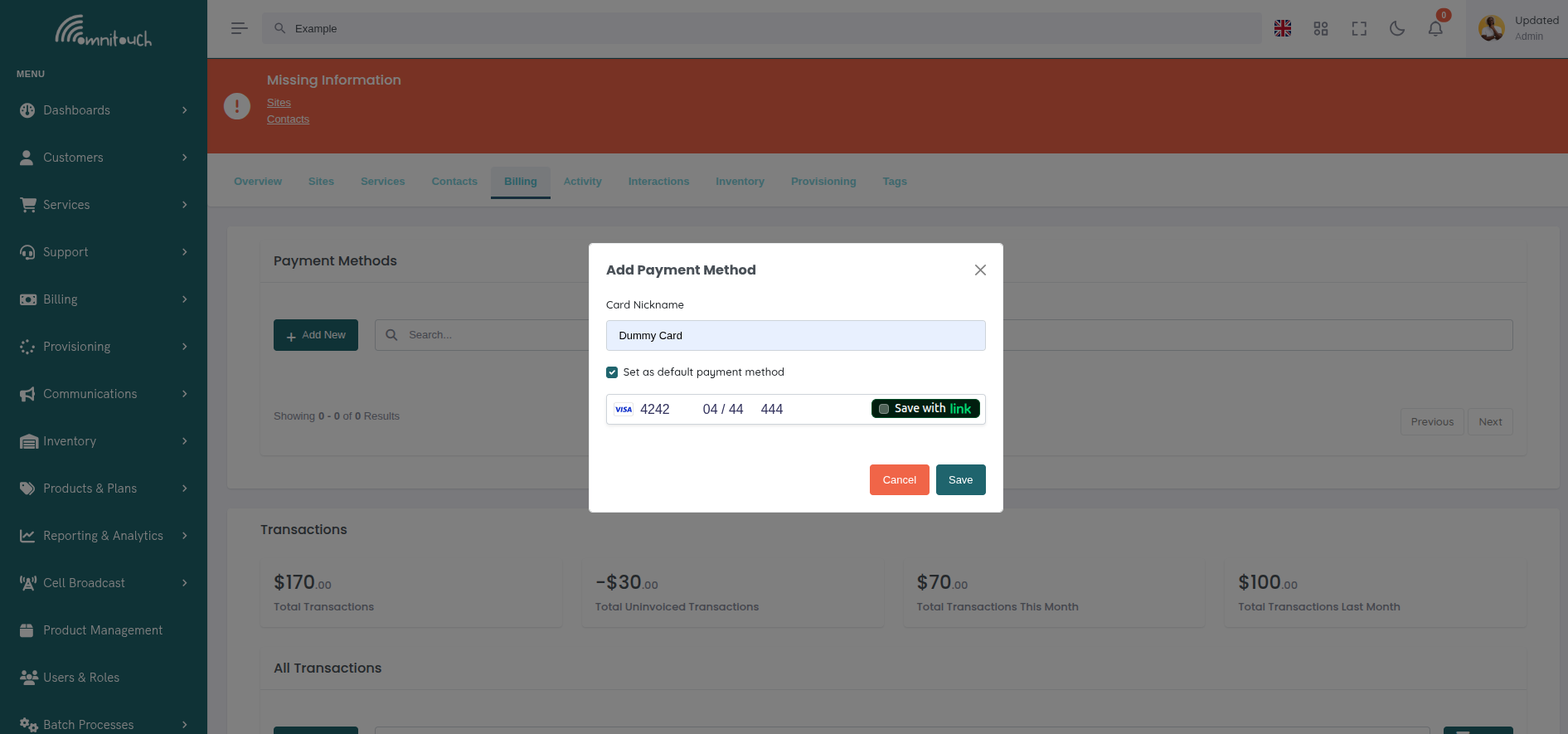

The Stripe Elements modal appears:

Add Payment Method Modal{.align-center width="800px"}

Required Fields:

  • Card Information - Card number, expiry, CVC (validated by Stripe)
  • Cardholder Name - Name on the card
  • Country/Region - Billing country

Optional Fields:

  • Card Nickname - Friendly label to distinguish between cards

Stripe Elements Security:

  • Card details entered directly into Stripe's secure iframe
  • OmniCRM never sees or stores full card numbers
  • PCI DSS compliance handled by Stripe
  • Real-time validation prevents invalid card numbers

Step 2: Submit and Tokenize​

When you click "Add Payment Method":

  1. Client-Side Validation:
    • Stripe validates card number format
    • Checks expiry date is in the future
    • Verifies CVC format
  2. Tokenization:
    • Card details sent directly to Stripe (not OmniCRM)
    • Stripe creates a secure token (e.g., pm_1A2B3C4D)
    • Token returned to OmniCRM
  3. Server Processing:
    • OmniCRM saves token to customer record
    • Stores last 4 digits, brand, expiry for display
    • No full card number ever touches OmniCRM servers

Step 3: Confirmation​

Success message appears:

Your Visa ending in 1234 has been added to your account.

The new card appears in the payment methods table.

Automatic Default Selection:

  • If this is the customer's first card, it's automatically set as default
  • If customer already has cards, new card is added as non-default
  • Customer can change default after adding

Setting Default Payment Method​

The default payment method is used for:

  • Automatic recurring service charges
  • Invoice payments
  • Top-ups and recharges
  • One-time transactions (unless specified otherwise)

To Change Default:

  1. Locate the card you want to set as default in the payment methods table

  2. Click the actions menu (⋮) next to the card

  3. Select "Set as Default"

  4. Confirmation appears

    Visa ending in 5678 is now your default payment method.

The checkmark moves to the newly selected card.

Visual Indicator:

Default cards show:

in the Default column, typically with a green checkmark badge.

Deleting a Payment Method​

Remove cards that are expired, lost, or no longer needed.

Step 1: Initiate Deletion​

  1. Find the card to delete in the payment methods table
  2. Click the actions menu (⋮)
  3. Select "Delete"

Step 2: Confirm Deletion​

A confirmation modal appears:

Are you sure you want to delete this payment method?

Card: Visa ending in 1234 Expiry: 12/2026

⚠️ Warning: If this is your only payment method, you will need to add a new one to continue using services that require automatic billing.

[Cancel] [Delete Payment Method]

Click "Delete Payment Method" to confirm.

Step 3: Deletion Complete​

Success message:

The card is removed from the table and deleted from Stripe.

Important Restrictions:

  • Cannot delete default if other cards exist - Set a different card as default first
  • Warning if deleting last card - Services requiring payment may be suspended
  • No undo - Deletion is permanent; customer must re-add card if needed

Managing Expiring Cards​

OmniCRM tracks card expiry dates and provides tools to proactively update expiring cards.

Expiring Cards Dashboard​

Navigate to Billing → Expiring Cards to see a system-wide list:

Customer Card Expiry Days Until Action John Smith Visa **1234 02/2025 12 days Update Acme Corp MC5678 03/2025 45 days Update Jane Doe Amex**9012 01/2025 EXPIRED Update

Expiring Cards Dashboard

Filters:

  • Expiry Range - Next 30/60/90 days or already expired
  • Customer Type - Individual vs Business
  • Service Type - Filter by service requiring payment method

Actions:

  • Update - Opens customer's payment methods page to add new card
  • Notify - Send email reminder to customer (if Mailjet configured)

Expiry Notifications​

If Mailjet is configured, automatic emails are sent:

  • 60 days before expiry - First reminder
  • 30 days before expiry - Second reminder
  • 7 days before expiry - Final warning
  • At expiry - Card has expired notice

Customers can click a link in the email to update their payment method via the Self-Care portal.

Email Template Variables:

Mailjet templates receive:

  • Customer name
  • Card brand and last 4 digits
  • Expiry date
  • Link to Self-Care payment methods page

See integrations_mailjet for email template configuration.

Updating an Expiring Card​

Recommended Workflow:

  1. Customer receives expiry notification email
  2. Customer logs into Self-Care portal
  3. Navigates to Billing → Payment Methods
  4. Clicks "Add Payment Method"
  5. Enters new card details (same card with updated expiry, or replacement card)
  6. Sets new card as default
  7. Deletes old/expired card

Staff Workflow:

If customer calls support:

  1. Staff opens customer account
  2. Navigates to Billing → Payment Methods
  3. Adds new card on customer's behalf (customer provides details over phone)
  4. Sets new card as default
  5. Deletes expired card
  6. Confirms with customer

::: warning ::: title Warning :::

Never ask customers to email or text card details. Always use:

  • Secure Self-Care portal for self-service
  • Phone with staff entering details directly into system
  • In-person at retail location :::

What Happens When Cards Expire​

When a payment card reaches its expiry date and is not updated:

Immediate Effects:

  1. Automatic Payments Fail
    • Stripe rejects transactions with expired cards
    • Monthly service renewals fail to process
    • Auto-top-ups fail
    • Invoice auto-payments fail
  2. Customer Notifications
    • System attempts to charge card
    • Payment failure notification sent
    • "Update Payment Method" email sent with link to Self-Care portal
  3. Service Status Changes
    • Postpaid Services - May continue temporarily with outstanding balance
    • Prepaid Services - Service suspension when balance depletes
    • Auto-Renew Services - Renewal fails, service may expire

Subsequent Actions:

Day 1-3 (Grace Period):

  • Service continues normally
  • Customer receives first payment failure notice
  • System attempts retry (depending on configuration)

Day 4-7:

  • Second payment attempt (if configured)
  • Warning email sent
  • Customer service may contact customer

Day 8-14:

  • Service may be suspended for non-payment
  • Suspended status prevents usage but preserves account
  • Customer can restore by updating payment method and paying outstanding balance

Day 15+:

  • Service may be terminated for non-payment
  • Inventory (SIM cards, equipment) marked for return
  • Final notice sent
  • Account referred to collections (if applicable)

Preventing Service Interruption:

To avoid service disruption:

  • Update cards 30 days before expiry
  • Add multiple payment methods for redundancy
  • Enable payment failure alerts
  • Monitor Expiring Cards dashboard weekly

Restoring Service After Expiry:

If service suspended due to expired card:

  1. Add new valid payment method
  2. Set as default
  3. Pay outstanding balance (if any)
  4. Contact support to reactivate service
  5. Service restored within minutes to hours

Payment Method Security​

Tokenization​

OmniCRM uses Stripe's tokenization to ensure security:

  1. Customer enters card → Sent directly to Stripe servers
  2. Stripe validates and tokenizes → Creates unique token
  3. Token stored in OmniCRM → Full card number never stored
  4. Payment processing → Token sent to Stripe, Stripe charges card

What OmniCRM Stores:

{
  "customer_stripe_id": "pm_1A2B3C4D5E6F",
  "brand": "visa",
  "last4": "1234",
  "exp_month": 12,
  "exp_year": 2026,
  "name": "John Smith",
  "nickname": "Personal Card",
  "is_default": true
}

What OmniCRM Does NOT Store:

  • Full card number
  • CVV/CVC code
  • Magnetic stripe data
  • PIN numbers

PCI Compliance​

By using Stripe Elements:

  • Reduced PCI scope - Card data never touches OmniCRM servers
  • Stripe-hosted fields - Card entry happens in Stripe's iframe
  • No card storage - Tokens used instead of raw card data
  • Secure transmission - All communication over HTTPS/TLS

See integrations_stripe for Stripe security details.

Common Workflows​

Workflow 1: Customer Adds First Payment Method​

Scenario: New customer signing up for service

  1. Customer creates account
  2. Selects service plan
  3. Prompted to add payment method during checkout
  4. Enters card details in Stripe modal
  5. Card tokenized and saved
  6. Automatically set as default
  7. Service provisioned
  8. First charge processed

Workflow 2: Customer Updates Expiring Card​

Scenario: Credit card about to expire

  1. Customer receives email notification (60 days before expiry)
  2. Logs into Self-Care portal
  3. Navigates to Billing → Payment Methods
  4. Reviews current card expiring 12/2025
  5. Clicks "Add Payment Method"
  6. Enters replacement card with expiry 12/2028
  7. Sets new card as default
  8. Deletes old card
  9. Confirmation email sent

Workflow 3: Staff Helps Customer Over Phone​

Scenario: Customer calls: "My card was declined"

  1. Customer calls support
  2. Staff verifies identity (security questions)
  3. Staff checks payment methods: Card expired 01/2025
  4. Staff: "Your card has expired. Do you have a new card?"
  5. Customer provides new card details over phone
  6. Staff navigates to Customers → [Customer] → Billing
  7. Clicks "Add Payment Method"
  8. Enters card details as customer reads them
  9. Sets new card as default
  10. Deletes expired card
  11. Retries failed payment
  12. Confirms with customer: "Payment successful, service restored"

Workflow 4: Business Customer with Multiple Cards​

Scenario: Company wants different cards for different purposes

  1. Business customer adds primary card (Visa ending 1111)
  2. Sets as default for monthly service charges
  3. Adds backup card (Mastercard ending 2222) for top-ups
  4. Adds purchasing card (Amex ending 3333) for equipment purchases
  5. When making top-up, selects Mastercard manually at checkout
  6. Default Visa still used for automatic monthly billing

Workflow 5: Managing Expiring Cards (Admin)​

Scenario: Proactive expiry management

  1. Admin navigates to Billing → Expiring Cards
  2. Filters: "Next 30 days"
  3. Sees 15 customers with expiring cards
  4. Selects all → "Send Reminder Emails"
  5. Mailjet sends personalized emails to each customer
  6. Customers update cards via Self-Care
  7. Admin reviews list 1 week later
  8. Calls remaining customers who haven't updated
  9. Assists with card updates over phone

Troubleshooting​

"Card declined" when adding payment method

  • Cause: Stripe rejected card (insufficient funds, fraud prevention, issuer decline)
  • Fix:
    • Try a different card
    • Contact card issuer to authorize transaction
    • Ensure card supports online purchases
    • Check billing address matches card on file

"Error adding payment method" (generic error)

  • Cause: Stripe API error or network issue
  • Fix:
    • Refresh page and try again
    • Check internet connection
    • Verify Stripe publishable key is correct in .env
    • Check browser console for specific error message
    • Try different browser (disable ad blockers)

Cannot delete payment method (button disabled)

  • Cause: Trying to delete the default card, or it's the only card
  • Fix:
    • Set a different card as default first
    • If it's the only card, add a new card before deleting

Card shows as expired but not in "Expiring Cards" list

  • Cause: Card expired recently, cache not refreshed
  • Fix:
    • Refresh the page
    • Check filters on Expiring Cards dashboard
    • Expired cards may move to different view

New card not appearing immediately

  • Cause: Page hasn't refreshed after adding card
  • Fix:
    • Payment methods table should auto-refresh
    • If not, manually refresh browser
    • Check if error occurred during add process

Stripe modal won't load

  • Cause: Stripe.js library not loading, API key issue, or browser extension blocking
  • Fix:
    • Check browser console for errors
    • Disable ad blockers and tracking protection
    • Verify REACT_APP_STRIPE_PUBLISHABLE_KEY in .env
    • Ensure Stripe.js script loads (check Network tab)
    • Try incognito/private browsing mode

Customer doesn't receive expiry notifications

  • Cause: Mailjet not configured or email template missing
  • Fix:
    • Verify Mailjet credentials in crm_config.yaml
    • Check email template exists for card expiry
    • Confirm customer email address is valid
    • Check Mailjet logs for delivery failures

Best Practices​

For Customers:

  • Add payment method before service activation to avoid delays
  • Keep at least 2 cards on file for redundancy
  • Update expiring cards 30+ days before expiry
  • Delete old/expired cards to avoid confusion
  • Use descriptive nicknames ("Personal Visa", "Work Amex")
  • Verify default payment method is correct for automatic billing

For Support Staff:

  • Verify customer identity before accessing payment methods
  • Never ask customers to send card details via email/SMS/chat
  • Process card additions immediately during calls (don't defer)
  • Confirm new card is set as default after adding
  • Delete old cards only after confirming new card works
  • Test payment after updating expired card (process £0.01 authorization)

For Administrators:

  • Monitor Expiring Cards dashboard weekly
  • Send reminder emails 60/30/7 days before expiry
  • Keep Stripe test/live keys separate for dev vs production
  • Ensure Mailjet templates are configured for expiry notifications
  • Review failed payment reports to identify expired cards
  • Train staff on secure card handling procedures

Security Best Practices:

  • Only use Stripe publishable keys (never secret keys in frontend)
  • Ensure all payment pages load over HTTPS
  • Regularly review Stripe dashboard for suspicious activity
  • Enable Stripe fraud prevention rules
  • Require CVC for all card-not-present transactions
  • Log payment method changes in activity log
  • integrations_stripe - Stripe integration setup and configuration
  • payments_process - Processing payments with stored payment methods
  • payments_invoices - Automatic invoice payment using default card
  • features_topup_recharge - Top-up system using payment methods
  • basics_payment - General payment and billing concepts
  • customer_care - Self-Care portal for customers to manage their own cards

Payment Methods Management Interface
